REAR COMBINATION LAMP (E2, E4, E15, E21)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

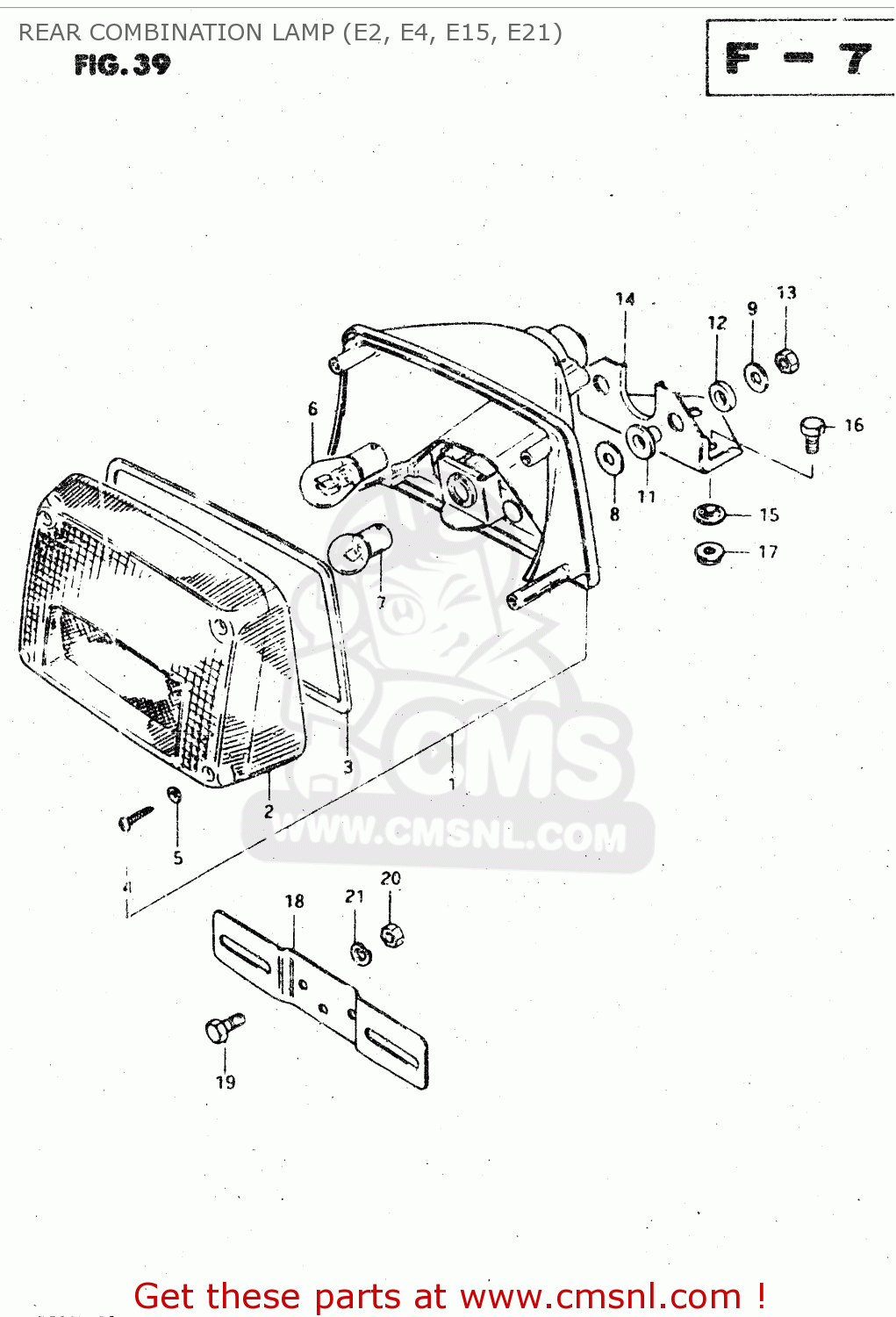

Rear combination lamp (e2, e4, e15, e21) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

REAR COMBINATION LAMP (E2, E4, E15, E21) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
REAR COMBINATION LAMP (E2, E4, E15, E21) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
REAR COMBINATION LAMP (E2, E4, E15, E21) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1
3571049321
ref: 1
FROM 35710-49320
LAMP ASSY, TAIL
€ 161.00
2
3571249084
ref: 2
FROM 35712-49083
LENS,RR COMBI
€ 43.50
3
3571349030
ref: 3
GASKET (NAS)
3571349030
€ 12.50
4
3562749030
ref: 4
SCREW,REAR COMBINATION LAMP
3562749030
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112046
ref: 6
EXECUTED LOCALLY
BULB(12V21/5W)
0947112046
€ 1.50
7
0947112059
ref: 7
EXECUTED LOCALLY
BULB
€ 4.00
8
0916006007
ref: 8
WASHER
0916006007
€ 2.00
9
0916006012
ref: 9
WASHER(6,5X22X1.6)
€ 2.00
10
0918006038
ref: 10
SPACER(6.1X9X7.5)
0918006038
€ 2.00
11
0932009003
ref: 11
CUSHION
0932009003
€ 2.00
12
0932009004
ref: 12
CUSHION
0932009004
€ 2.50
13
0831626068
ref: 13
NUT 6MM
0831626068
€ 2.00
14
3572633200
ref: 14
BRACKET,RR COMBINATION LAMP
3572633200
€ 6.50
15
0916906028
ref: 15
WASHER
0916906028
€ 2.00
16
0110706168
ref: 16
BOLT, UPPER
€ 3.00
17
0831626068
ref: 17
NUT 6MM
0831626068
€ 2.00
18
3592744110
ref: 18
PLATE,RR LICENSE
3592744110
€ 22.50
19
0151706168
ref: 19
BOLT
€ 1.50
20
0831011068
ref: 20
NUT
0831011068
€ 2.50
21
0832121068
ref: 21
LOCK WASHER
0832121068
€ 2.50
