Buy Suzuki GSX Parts Online


CAM SHAFT - VALVE

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

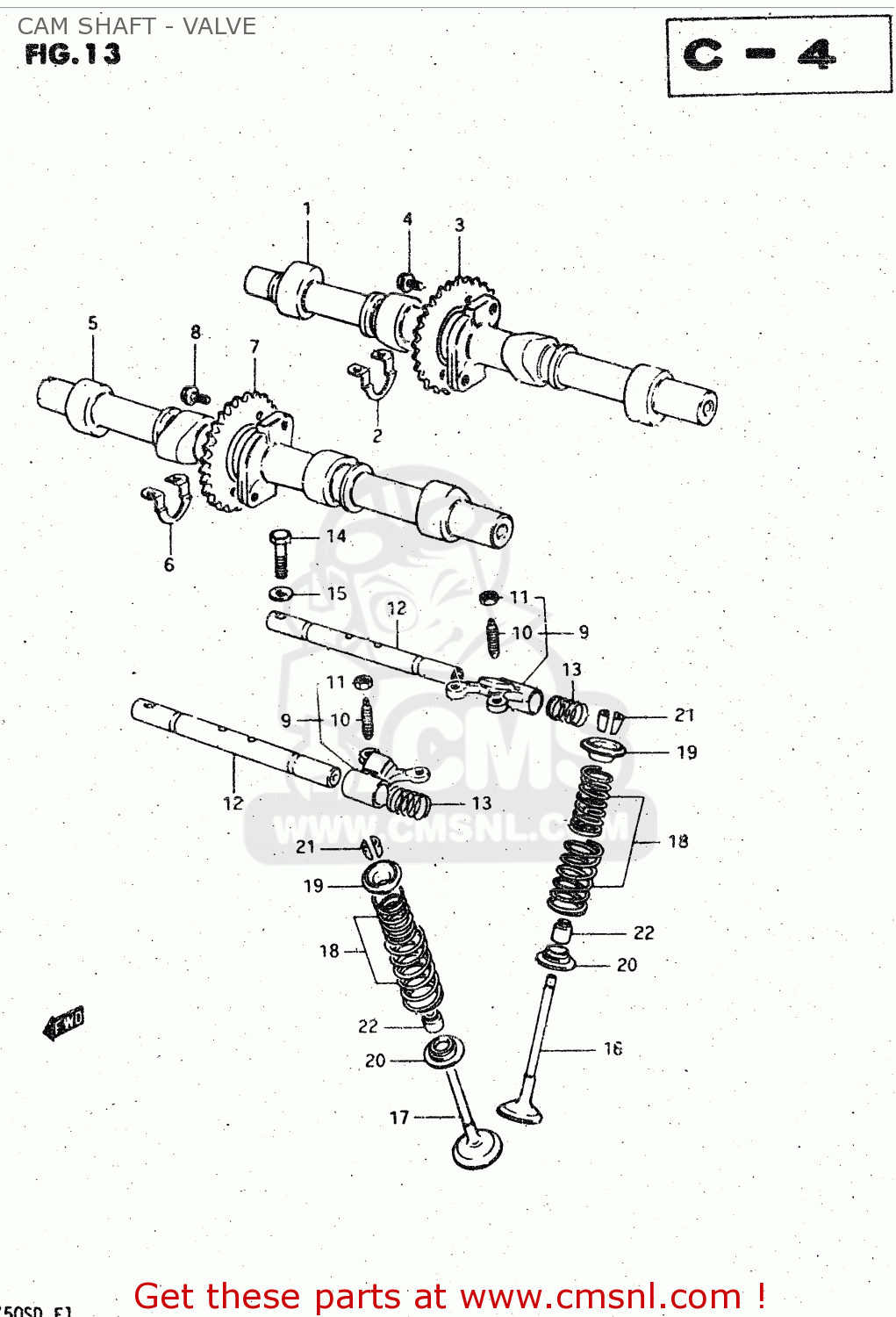

Cam shaft - valve diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

CAM SHAFT - VALVE GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CAM SHAFT - VALVE GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CAM SHAFT - VALVE GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1
1270045810
ref: 1
CAMSHAFT SET,INTAKE
1270045810
€ 255.50
2-1
1271245070
ref: 2-1
SHIM,CAMSHAFT
1271245070
€ 11.50
2-2
1271245071
ref: 2-2
SHIM
1271245071
€ 7.50
2-3
1271245072
ref: 2-3
SHIM,CAMSHAFT
1271245072
€ 9.50
3
1274145401
ref: 3
SPROCKET,INTAKE CAMSHAFT
1274145401
€ 35.00
4
0910307001
ref: 4
BOLT(7X11)
0910307001
€ 2.00
5
1270045820
ref: 5
CAMSHAFT SET,EXHAUST
€ 372.50
6-1
1271245070
ref: 6-1
SHIM,CAMSHAFT
1271245070
€ 11.50
6-2
1271245071
ref: 6-2
SHIM
1271245071
€ 7.50
6-3
1271245072
ref: 6-3
SHIM,CAMSHAFT
1271245072
€ 9.50
7
1275145401
ref: 7
SPROCKET,EXHAUST CAMSHAFT
1275145401
€ 31.50
8
0910307001
ref: 8
BOLT(7X11)
0910307001
€ 2.00
9
1284045410
ref: 9
ARM,VALVE ROCKER
€ 78.50
10
1284249210
ref: 10
SCREW,TAPPET ADJUSTING
1284249210
€ 5.50
11
1284349210
ref: 11
NUT,ADJUSTING
1284349210
€ 3.00
12
1286049200
ref: 12
SHAFT,VALVE ROCKER
1286049200
€ 33.50
13
0944013014
ref: 13
SPRING
0944013014
€ 2.50
14
0110706308
ref: 14
BOLT
0110706308
€ 2.50
15
0832221068
ref: 15
WASHER
0832221068
€ 2.00
16
1291145420
ref: 16
VALVE,INTAKE
1291145420
€ 21.50
17
1291245420
ref: 17
VALVE,EXHAUST
1291245420
€ 32.00
18
1292049210
ref: 18
SPRING SET,VALVE
1292049210
€ 16.00
19
1293149200
ref: 19
RETAINER,VALVE SPRING
1293149200
€ 5.50
20
1293349200
ref: 20
SEAT,VALVE SPRING
1293349200
€ 4.50
21
1293245200
ref: 21
COTTER, VALVE
€ 0.00
22
0928905003
ref: 22
OIL SEAL
0928905003
€ 6.50
