STARTER CLUTCH

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

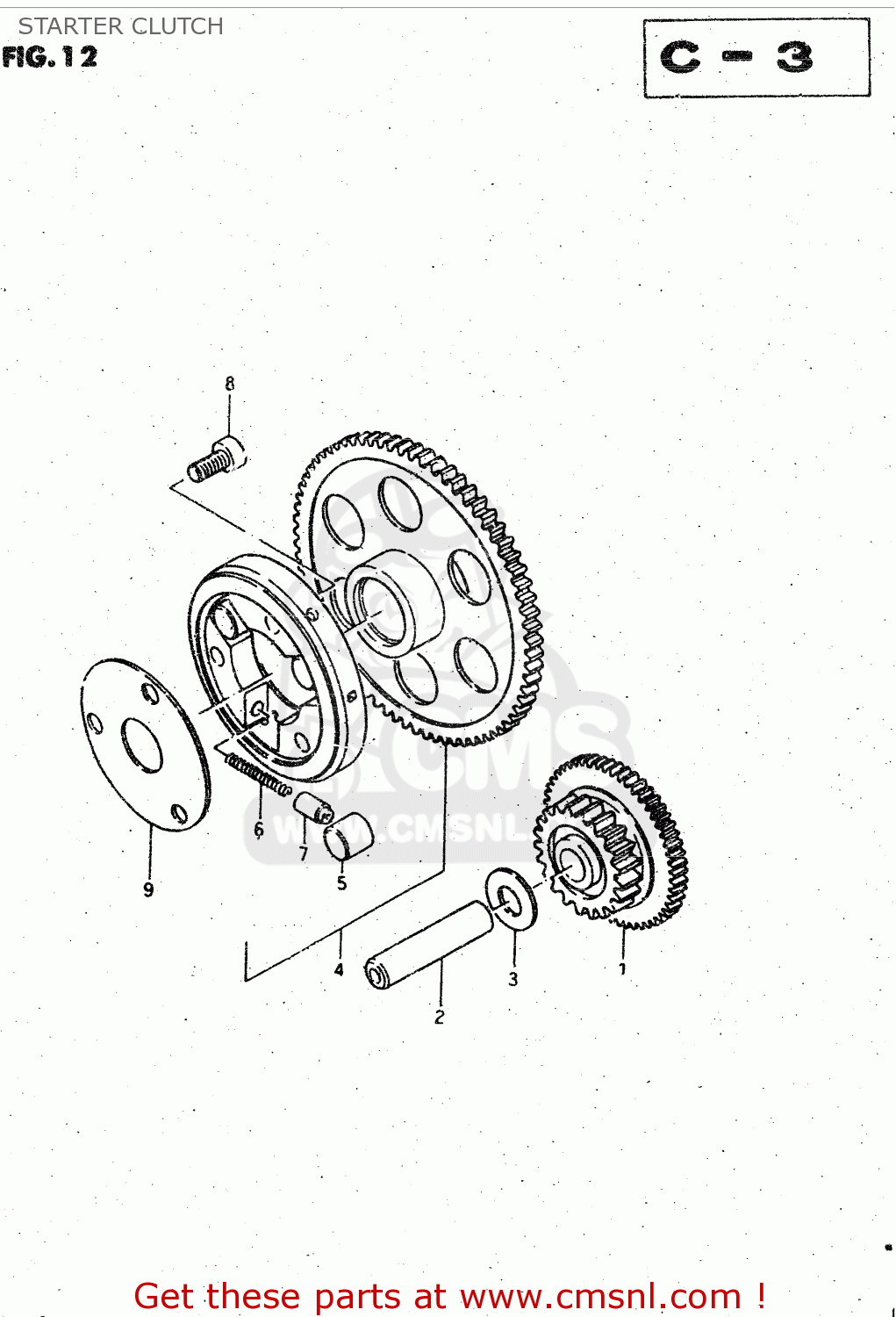

Starter clutch diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

STARTER CLUTCH GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

STARTER CLUTCH GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

prices are in EUR

ref

part #

description

quantity

1

1261145000
ref: 1

GEAR,STARTER IDLE

€ 65.00

2

0920613003
ref: 2

PIN(7.4X13X56)

€ 9.00

3

0821114225
ref: 3

WASHER

€ 3.00

4

1260045830
ref: 4

CLUTCH SET,STARTER

€ 132.50

5

0926115001
ref: 5

ROLLER(15X13)

€ 3.50

6

0944004015
ref: 6

SPRING

€ 2.50

7

1263331000
ref: 7

PIECE,PUSH

€ 9.00

8

0910608043
ref: 8

BOLT

€ 3.00

9

1264945000
ref: 9

SHIM,STARTER CLUTCH HUB

€ 7.00
