FRONT WHEEL (MODEL D)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

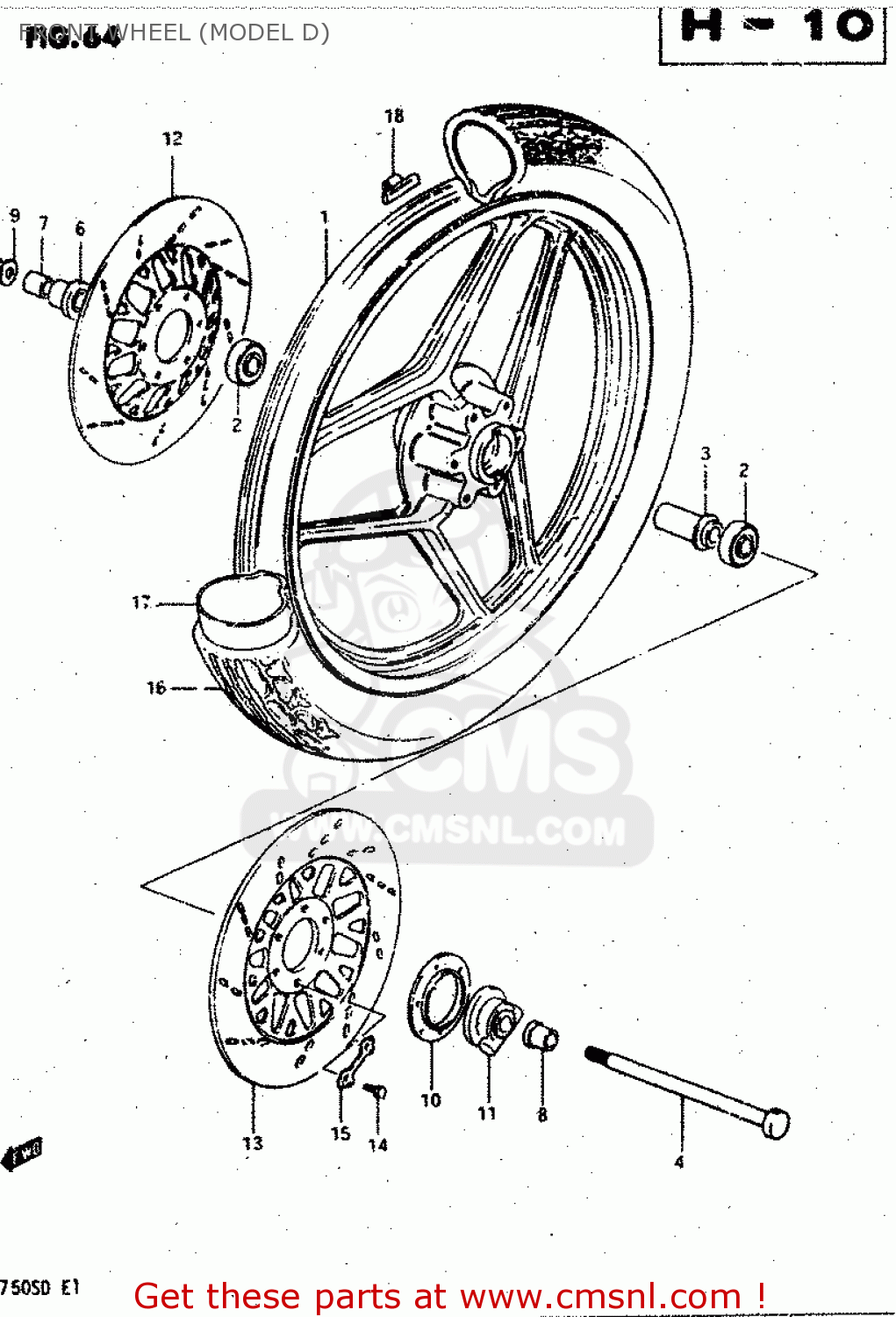

Front wheel (model d) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

FRONT WHEEL (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
FRONT WHEEL (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
FRONT WHEEL (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1
5411149500291
ref: 1
CASTING WHEEL,FRONT 1.85
5411149500291
€ 490.50
2
0812363027
ref: 2
BEARING
0812363027
€ 19.00
3
5473018400
ref: 3
SPACER,FR HUB BEARING
5473018400
€ 13.00
4
5471149000
ref: 4
AXLE,FR
5471149000
€ 79.50
5
0915912011
ref: 5
NUT
0915912011
€ 8.50
6
5474018402
ref: 6
SPACER,FR AXLE,R
5474018402
€ 18.50
7
5474149300
ref: 7
SPACER,FR AXLE,R
5474149300
€ 19.00
8
5474149000
ref: 8
SPACER,FR AXLE,L
5474149000
€ 16.50
9
0832221128
ref: 9
WASHER
0832221128
€ 2.00
10
5487145010
ref: 10
DUST SEAL,SPEEDOMETER GEAR BOX
5487145010
€ 21.00
11
5460018401
ref: 11
BOX ASSEMBLY,SPEEDOMETER GEAR
5460018401
€ 90.50
12
5921145250
ref: 12
DISC,FR BRAKE,R
5921145250
€ 149.00
13
5922145250
ref: 13
DISC,FR BRAKE,L
5922145250
€ 149.00
14
0910008140
ref: 14
BOLT(8X25)
0910008140
€ 2.00
15
0916908016
ref: 15
WASHER
0916908016
€ 3.50
16-1
5510045011
ref: 16-1
TIRE 3.25H19 083X483MM
€ 0.00
16-2
5510045430
ref: 16-2
TIRE,FRONT
€ 0.00
17-1
5520015010
ref: 17-1
TUBE,INNER
€ 41.00
17-2
5520015030
ref: 17-2
TUBE,INNER
€ 41.00
18-1
5541145100
ref: 18-1
BALANCER,WHEEL
5541145100
€ 7.00
18-2
5541245100
ref: 18-2
BALANCER,WHEEL
5541245100
€ 4.00
18-3
5541345100
ref: 18-3
BALANCER,WHEEL
€ 6.50
