CAM CHAIN (MODEL Z)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

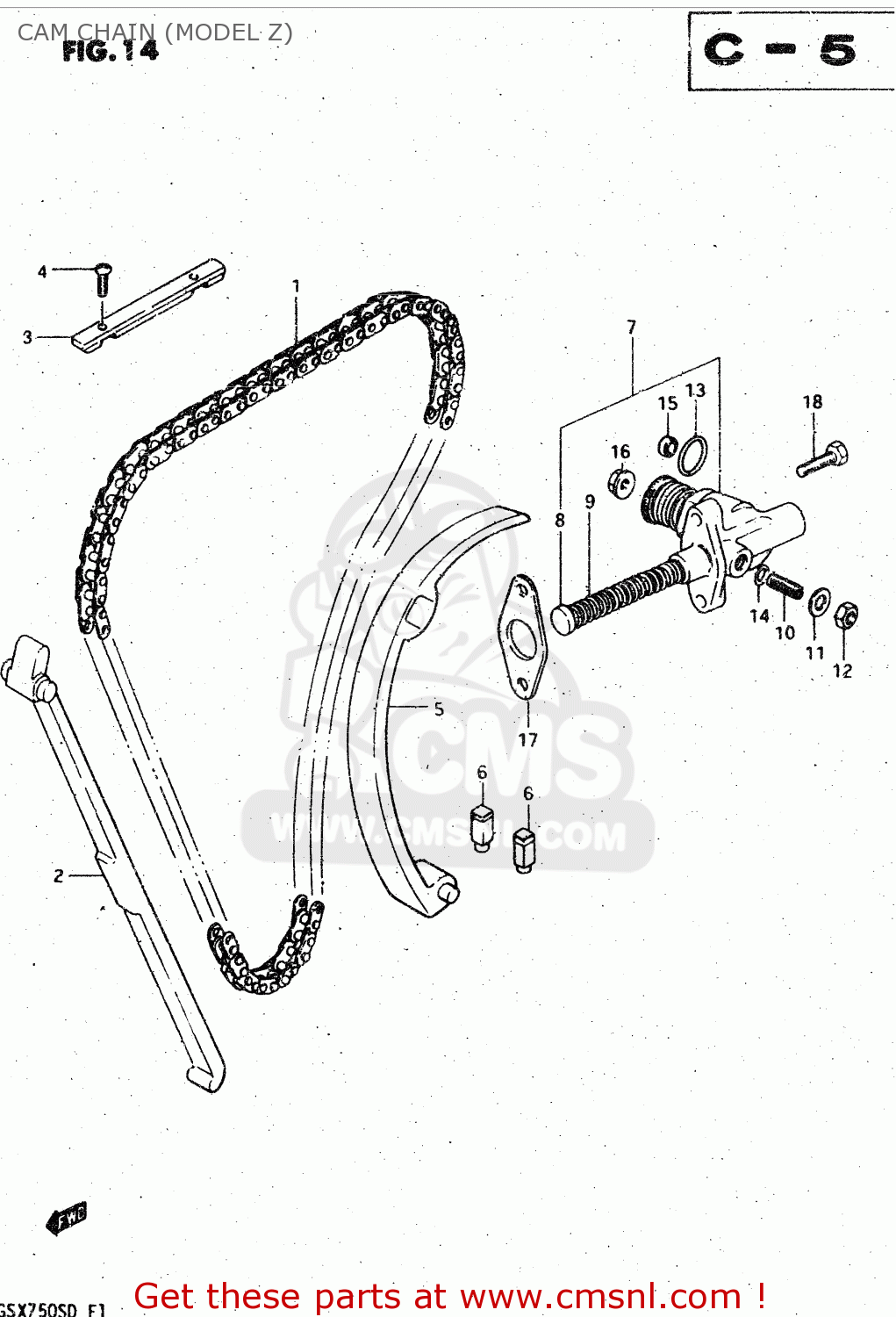

Cam chain (model z) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

CAM CHAIN (MODEL Z) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CAM CHAIN (MODEL Z) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CAM CHAIN (MODEL Z) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1
1276045440
ref: 1
CHAIN,CAMSHAFT DRIVE
1276045440
€ 114.50
2
1277145451
ref: 2
GUIDE,CAM CHAIN NO.1
1277145451
€ 53.50
3
1278247040
ref: 3
GUIDE,CAM CHAIN NO.3
1278247040
€ 89.50
4
0211205128
ref: 4
SCREW
€ 2.50
5
1281044150
ref: 5
TENSIONER,CAM CHAIN
1281044150
€ 64.00
6
1281444101
ref: 6
CUSHION,CAM CHAIN TENSIONER
1281444101
€ 8.50
7
1283009300
ref: 7
ADJUSTER,CAM CHAIN TENSIONER
1283009300
€ 167.00
8
1283347001
ref: 8
ROD,PUSH
1283347001
€ 25.00
9
0944012017
ref: 9
SPRING
0944012017
€ 2.50
10
1283845001
ref: 10
SCREW
1283845001
€ 6.00
11
0832211088
ref: 11
WASHER
0832211088
€ 2.00
12
0831012088
ref: 12
NUT
0831012088
€ 2.00
13
0928021013
ref: 13
O RING(D:2.4,ID:20.8)
0928021013
€ 4.50
14
0928006005
ref: 14
O RING(D:1.9,ID:5.7)
0928006005
€ 2.50
15
0928410006
ref: 15
SEAL,OIL(10X16X4)
0928410006
€ 4.00
16
0915906017
ref: 16
NUT
0915906017
€ 2.50
17
1283747000
ref: 17
GASKET,TENSIONER ADJUSTER (MCA)
1283747000
€ 7.50
18
0912806024
ref: 18
SCREW (6X25)
0912806024
€ 2.50
