FRONT MASTER CYLINDER

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

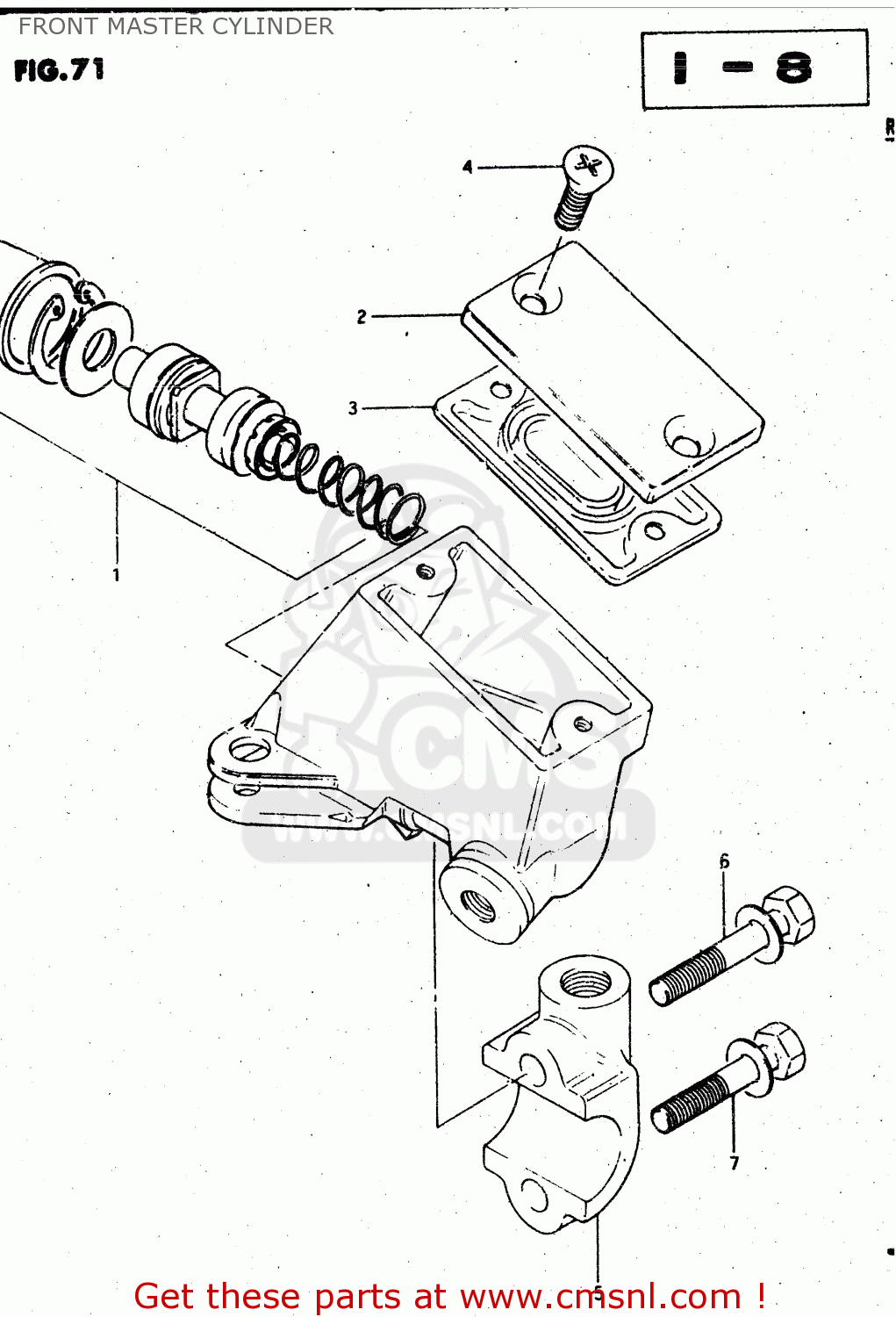

Front master cylinder diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

FRONT MASTER CYLINDER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
FRONT MASTER CYLINDER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
FRONT MASTER CYLINDER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
0
5960049300
ref: 0
MODEL Z
CYLINDER ASSY, MASTER
€ 209.00
0
5960049302
ref: 0
MODEL D
CYLINDER ASSY,BRAKE MASTER FR
5960049302
€ 209.00
1
5960049830
ref: 1
PISTON & CUP SET
5960049830
€ 46.50
2
5966949300
ref: 2
CAP
5966949300
€ 23.50
3
5966749300
ref: 3
DIAPHRAGM,MASTER CYLINDER
5966749300
€ 15.50
4
5969149310
ref: 4
SCREW
5969149310
€ 6.50
5
5967149000
ref: 5
HOLDER
5967149000
€ 22.50
6-1
5969449300
ref: 6-1
MODEL Z
BOLT,MASTER CYLINDER H
€ 3.50
6-2
5969449301
ref: 6-2
MODEL D
BOLT,MASTER CYLINDER H
€ 3.50
7-1
5969349300
ref: 7-1
MODEL Z
BOLT,MASTER CYLINDER H
€ 3.00
7-2
5969549301
ref: 7-2
MODEL D
BOLT
€ 0.00
