COWLING (GSX750SD)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

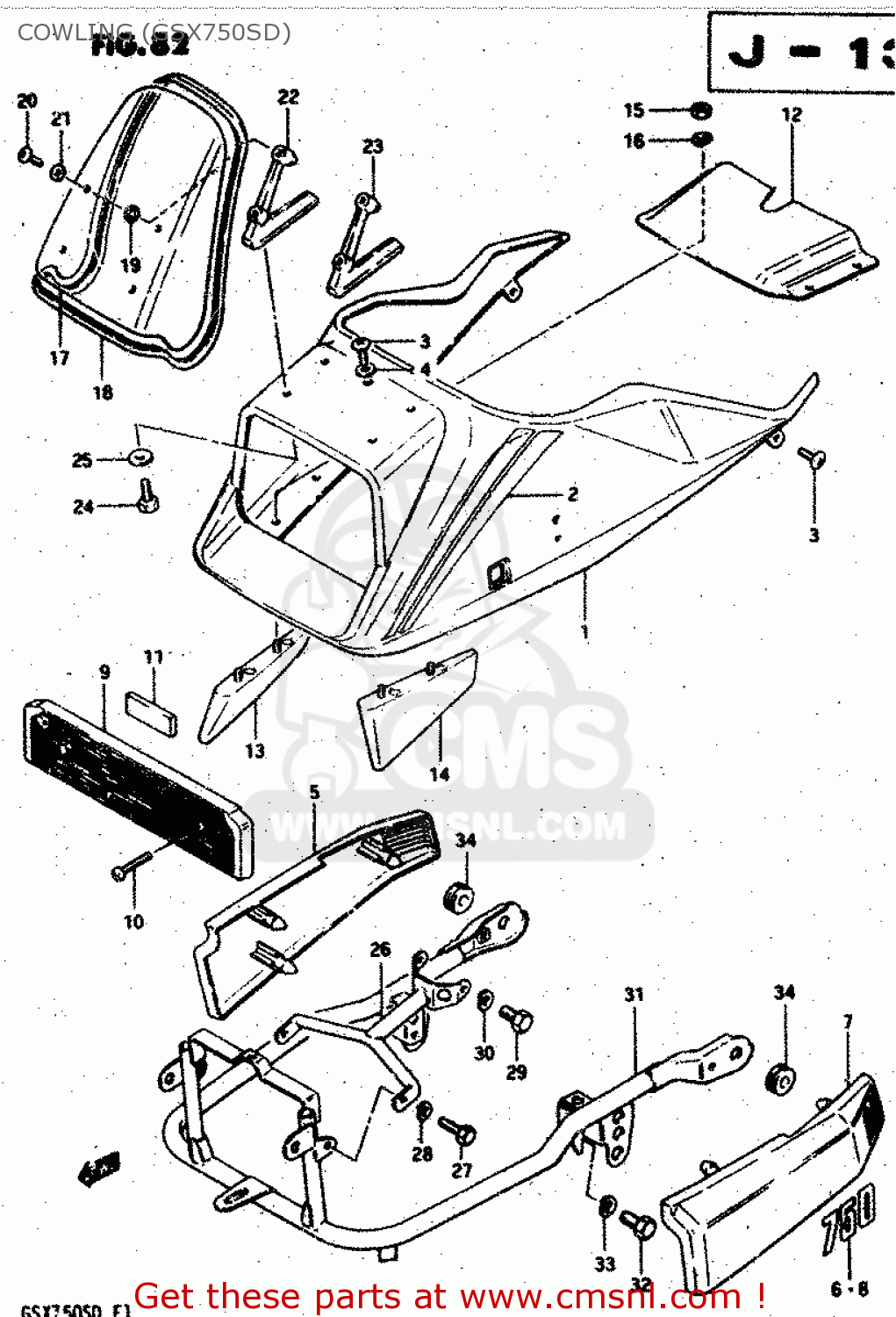

Cowling (gsx750sd) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

COWLING (GSX750SD) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
COWLING (GSX750SD) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
COWLING (GSX750SD) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1
944104550080A
ref: 1
BODY, COWLING (BLACK/SILVER)
€ 663.00
2
681904550070T
ref: 2
TAPE SET
€ 0.00
3
0214206125
ref: 3
SCREW 6X12
0214206125
€ 2.00
4
0916107003
ref: 4
WASHER
€ 3.00
5
944304550013L
ref: 5
COVER,COWLING,RIGHT
€ 26.50
6
6813145500019
ref: 6
EMBLEM,FRAME COVER
€ 0.00
7
944404550013L
ref: 7
COVER,COWLING,LEFT
€ 32.00
8
6813145500019
ref: 8
EMBLEM,FRAME COVER
€ 0.00
9
9444549300
ref: 9
COVER,COWLING LOWER
9444549300
€ 35.50
10
0214206308
ref: 10
SCREW
€ 2.00
11
9444649300
ref: 11
CUSHION
€ 1.50
12
9441249300
ref: 12
COVER,COWLING LOWER FR
9441249300
€ 12.00
13
9445049300
ref: 13
WING,COWLING RH
9445049300
€ 29.00
14
9446049300
ref: 14
WING,COWLING LH
9446049300
€ 27.50
15
0831011068
ref: 15
NUT
0831011068
€ 2.50
16
0832121068
ref: 16
LOCK WASHER
0832121068
€ 2.50
17
9461149303
ref: 17
WINDOW,COWLING
9461149303
€ 347.50
18
9463149300
ref: 18
MOLD,COWLING
9463149300
€ 15.00
19
0932005008
ref: 19
CUSHION
0932005008
€ 5.00
20
0214205105
ref: 20
SCREW
0214205105
€ 2.50
21
0916105010
ref: 21
WASHER(5.2X11X1)
0916105010
€ 2.00
22
9462145500
ref: 22
BRACE,COWLING WINDOW RH
9462145500
€ 77.00
23
9462545500
ref: 23
BRACE,COWLING WINDOW LH
9462545500
€ 83.00
24
0110706128
ref: 24
BOLT
0110706128
€ 2.00
25
0916006019
ref: 25
WASHER(6.5X16X1.2)
0916006019
€ 1.50
26
9451049302
ref: 26
BRACKET,COWLING UPPER
9451049302
€ 64.50
27
0110706163
ref: 27
BOLT
0110706163
€ 2.00
28
0832121068
ref: 28
LOCK WASHER
0832121068
€ 2.50
29
0110708128
ref: 29
BOLT 8X12
0110708128
€ 2.50
30
0832121088
ref: 30
LOCK WASHER
0832121088
€ 2.00
31
9453049301
ref: 31
BRACE,COWLING RR
9453049301
€ 133.50
32
0110708168
ref: 32
BOLT
€ 2.00
33
0832121088
ref: 33
LOCK WASHER
0832121088
€ 2.00
34
0932008018
ref: 34
CUSHION
0932008018
€ 4.00
