WIRING HARNESS

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

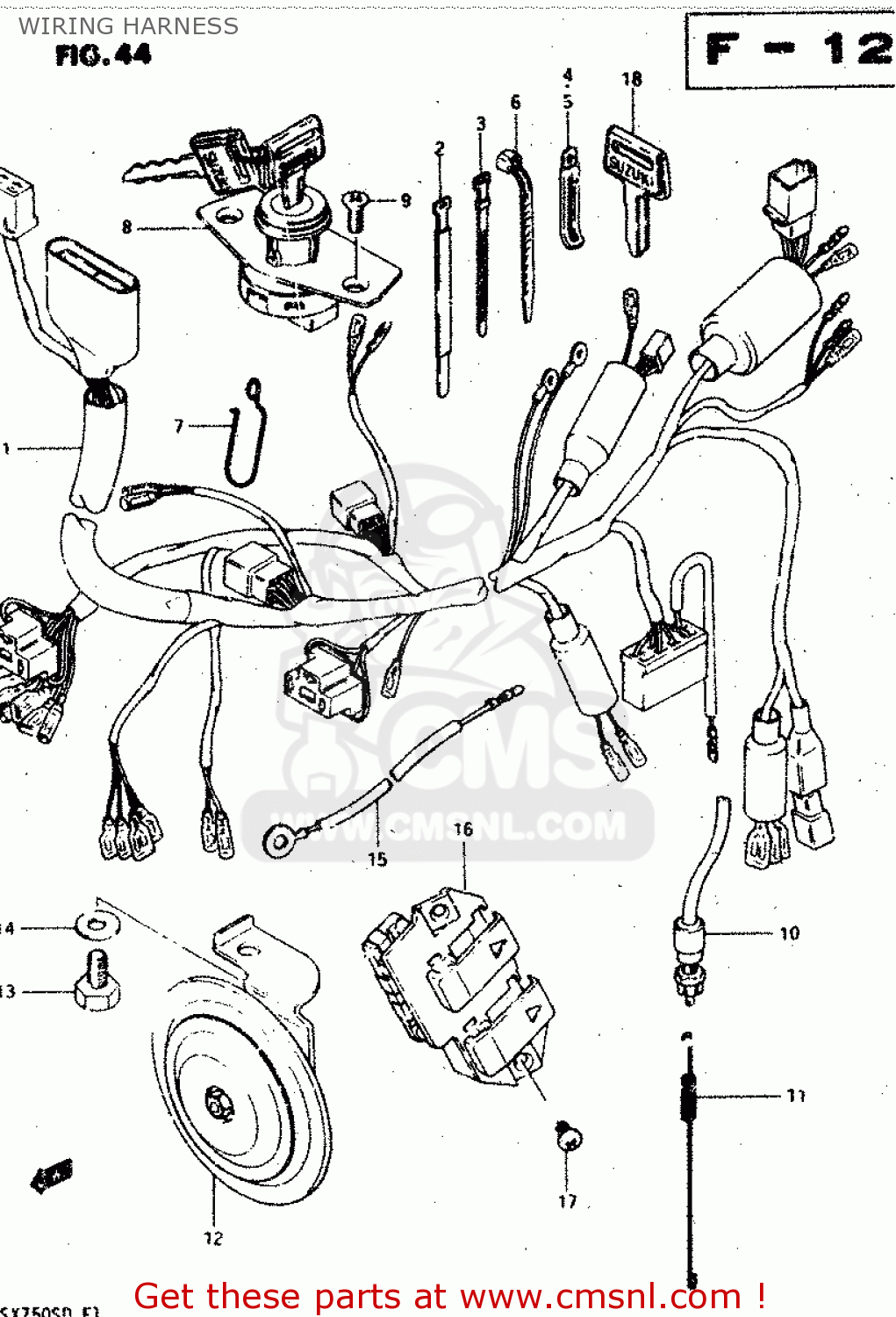

Wiring harness diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

WIRING HARNESS GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

WIRING HARNESS GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

prices are in EUR

ref

part #

description

quantity

1-1

3661049300
ref: 1-1
MODEL Z

WIRING HARNESS

€ 226.50

1-2

3661049350
ref: 1-2
MODEL D

HARNESS,WIRING

€ 0.00

1-3

3661049310
ref: 1-3
MODEL Z E22,TO 36610

WIRING HARNESS

€ 277.00

1-4

3661049360
ref: 1-4
MODEL D E22

WIRING HARNESS

€ 0.00

2

0940718301
ref: 2
MODEL Z

CLAMP

€ 6.00

3-1

0940712402
ref: 3-1
MODEL Z

CLAMP(L:120)

€ 3.00

3-2

0940708401
ref: 3-2

CLAMP(L:80)

€ 2.50

4-1

0940406401
ref: 4-1

CLAMP L:35

€ 2.50

4-2

0940406412
ref: 4-2

CLAMP

€ 2.50

4-3

0940406414
ref: 4-3

CLAMP

€ 3.00

4-4

0940406415
ref: 4-4

CLAMP

€ 3.00

5

0940408401
ref: 5

CLAMP

€ 3.50

6-1

0940711401
ref: 6-1
MODEL D

CLAMP(L:95)

€ 2.50

6-2

0940714403
ref: 6-2
MODEL D

CLAMP(L:125)

€ 2.50

6-3

0940718402
ref: 6-3
MODEL D

CLAMP(L:165)

€ 2.50

7

3661849300
ref: 7

BOOT,WIRING HARNESS

€ 4.50

8

3711049300
ref: 8

SWITCH ASSY,IGNITION

€ 111.50

9

0212205108
ref: 9

SCREW

€ 1.00

10

3774004572
ref: 10
FROM 37740-04571

SWITCH ASSEMBLY,STOP LAMP

€ 22.00

11

0944306027
ref: 11

SPRING

€ 4.50

12-1

3850049320
ref: 12-1

HORN ASSY

€ 69.00

12-2

3850049300
ref: 12-2
E4,E34,E39

HORN

€ 69.00

12-3

3850049310
ref: 12-3
E18

HORN

€ 0.00

13

0110708128
ref: 13

BOLT 8X12

€ 2.50

14

0832211088
ref: 14

WASHER

€ 2.00

15-1

3685145401
ref: 15-1
MODEL Z

WIRE

€ 14.00

15-2

3685145410
ref: 15-2
MODEL D

WIRE

€ 0.00

16

3785049300
ref: 16

SWITCH ASSY,SIDE COVER,L

€ 104.00

17

0324104088
ref: 17

SCREW

€ 1.50

18

3714649300
ref: 18
OPT

KEY,BLANK

€ 13.00
