RIGHT HANDLE SWITCH (MODEL Z)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

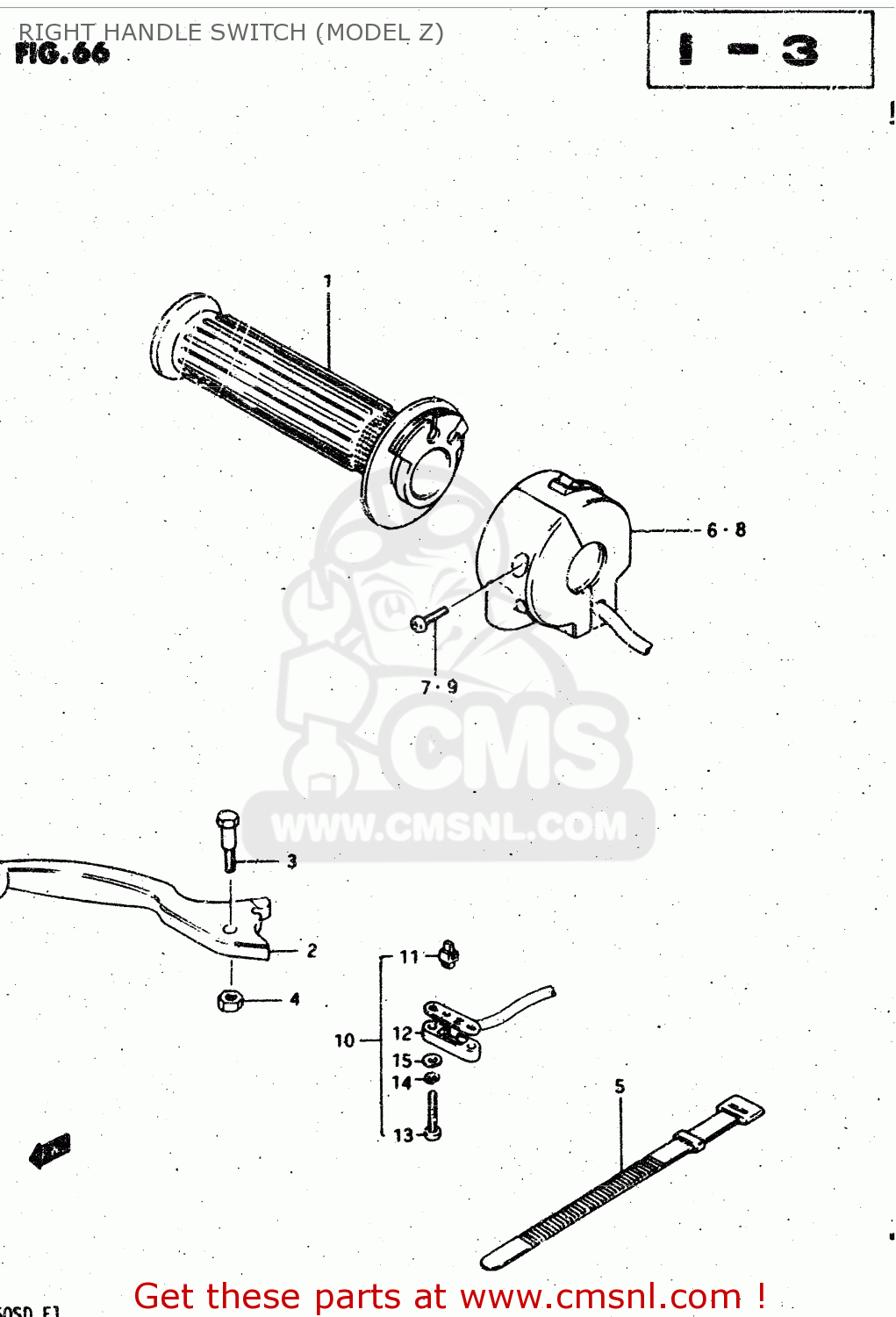

Right handle switch (model z) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

RIGHT HANDLE SWITCH (MODEL Z) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

RIGHT HANDLE SWITCH (MODEL Z) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

prices are in EUR

ref

part #

description

quantity

1

5711044100
ref: 1

GRIP,THROTTLE

€ 26.00

2

5742049101
ref: 2

LEVER,BRAKE

€ 36.50

3

5743118621
ref: 3

BOLT

€ 8.00

4

0831921068
ref: 4

NUT 6MM

€ 2.00

5

0940712402
ref: 5

CLAMP(L:120)

€ 3.00

6

3720047510
ref: 6

SWITCH ASSY, HANDLE RH

€ 164.50

7

3759149210
ref: 7

SCREW

€ 2.50

8

3720047520
ref: 8
E4,E15,E16,E17,E18,E

SWITCH ASSY, HARDLE RH

€ 145.50

9

3759149210
ref: 9
E4,E15,E16,E17,E18,E

SCREW

€ 2.50

10

5746049300
ref: 10
E4,E6,E15,E16,E17,E1

SWITCH ASSEMBLY

€ 40.00

11

5746518601
ref: 11
E4,E6,E15,E16,E17,E1

CONTACT,SWITCH

€ 4.50

12

5748133010
ref: 12
E4,E6,E15,E16,E17,E1

COVER,FR BK TERMINAL BASE

€ 19.50

13

0912503105
ref: 13
E4,E6,E15,E16,E17,E1

SCREW

€ 2.50

14

0832121038
ref: 14
E4,E6,E15,E16,E17,E1

LOCK WASHER

€ 1.50

15

0832221038
ref: 15
E4,E6,E15,E16,E17,E1

WASHER

€ 2.00
