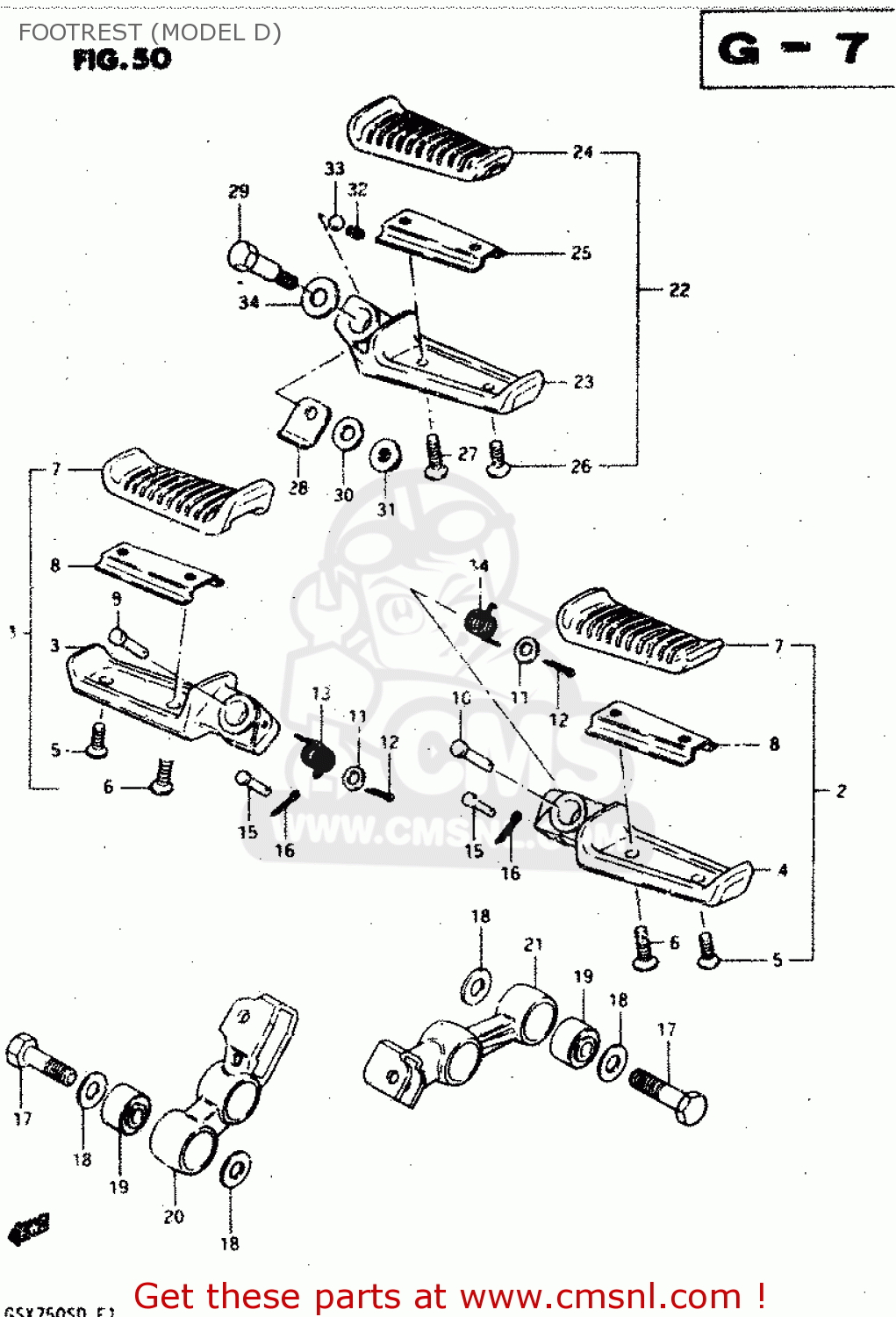

FOOTREST (MODEL D)

ref

part #

description

quantity

1

4350133300
ref: 1

FOOTREST ASSEMBLY,FRONT,RIGHT

€ 64.00

2

4350233300
ref: 2

FOOTREST ASSEMBLY,FRONT,LEFT

€ 57.50

3

4351033300
ref: 3

BAR,FRONT FOOTREST

€ 64.00

4

4352033300
ref: 4

BAR,FRONT FOOTREST,LEFT

€ 57.50

5

0211205128
ref: 5

SCREW

€ 2.50

6

0211205168
ref: 6

SCREW

€ 2.50

7

4355133300
ref: 7

RUBBER,FR FOOTREST

€ 9.00

8

4358033301
ref: 8

PLATE,FR FOOTREST RUBBER

€ 4.50

9

0920008002
ref: 9

PIN

€ 2.00

10

0920008040
ref: 10

PIN

€ 3.00

11

0832211088
ref: 11

WASHER

€ 2.00

12

0411120208
ref: 12

PIN 20X20

€ 1.50

13

0944810002
ref: 13

SPRING

€ 2.00

14

0944814028
ref: 14

SPRING

€ 3.50

15

0920006040
ref: 15

PIN

€ 3.00

16

0411120208
ref: 16

PIN 20X20

€ 1.50

17

0910410012
ref: 17

BOLT

€ 3.50

18

0916010057
ref: 18

WASHER

€ 2.00

19

0931910047
ref: 19

BUSH

€ 8.00

20

4353149310
ref: 20

HOLDER,FR FOOTREST,R

€ 63.00

21

4354149310
ref: 21

HOLDER,FR FOOTREST,L

€ 64.50

22-1

4360045501
ref: 22-1

FOOTREST ASSY,PILLION,R

€ 41.50

22-2

4370045501
ref: 22-2

FOOTREST ASSY,PILLION,L

€ 56.50

23-1

4361045501
ref: 23-1

BAR,PILLION FOOTREST,RIGHT

€ 17.00

23-2

4371045501
ref: 23-2

BAR,PILLION FOOTREST,LEFT

€ 16.00

24

4361245500
ref: 24

RUBBER,PILLION FOOTREST

€ 10.00

25

4363245501
ref: 25

PLATE,RUBBER STOPPER

€ 2.50

26

0213205127
ref: 26

SCREW 5X12

€ 2.50

27

0213205168
ref: 27

SCREW

€ 2.00

28

4363545510
ref: 28

PLATE,SPRING STOP

€ 3.50

29

0911106038
ref: 29

BOLT(6X45)

€ 4.00

30

0832211088
ref: 30

WASHER

€ 2.00

31

0831931068
ref: 31

NUT

€ 2.50

32

0944005003
ref: 32

SPRING

€ 1.50

33

0611107004
ref: 33

BALL

€ 1.50

34

0918108004
ref: 34

SHIM(8.2X22X0.2)

€ 2.50

all assemblies
