Buy Suzuki GSX Parts Online


CHAIN CASE - REAR SHOCK ABSORBER

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

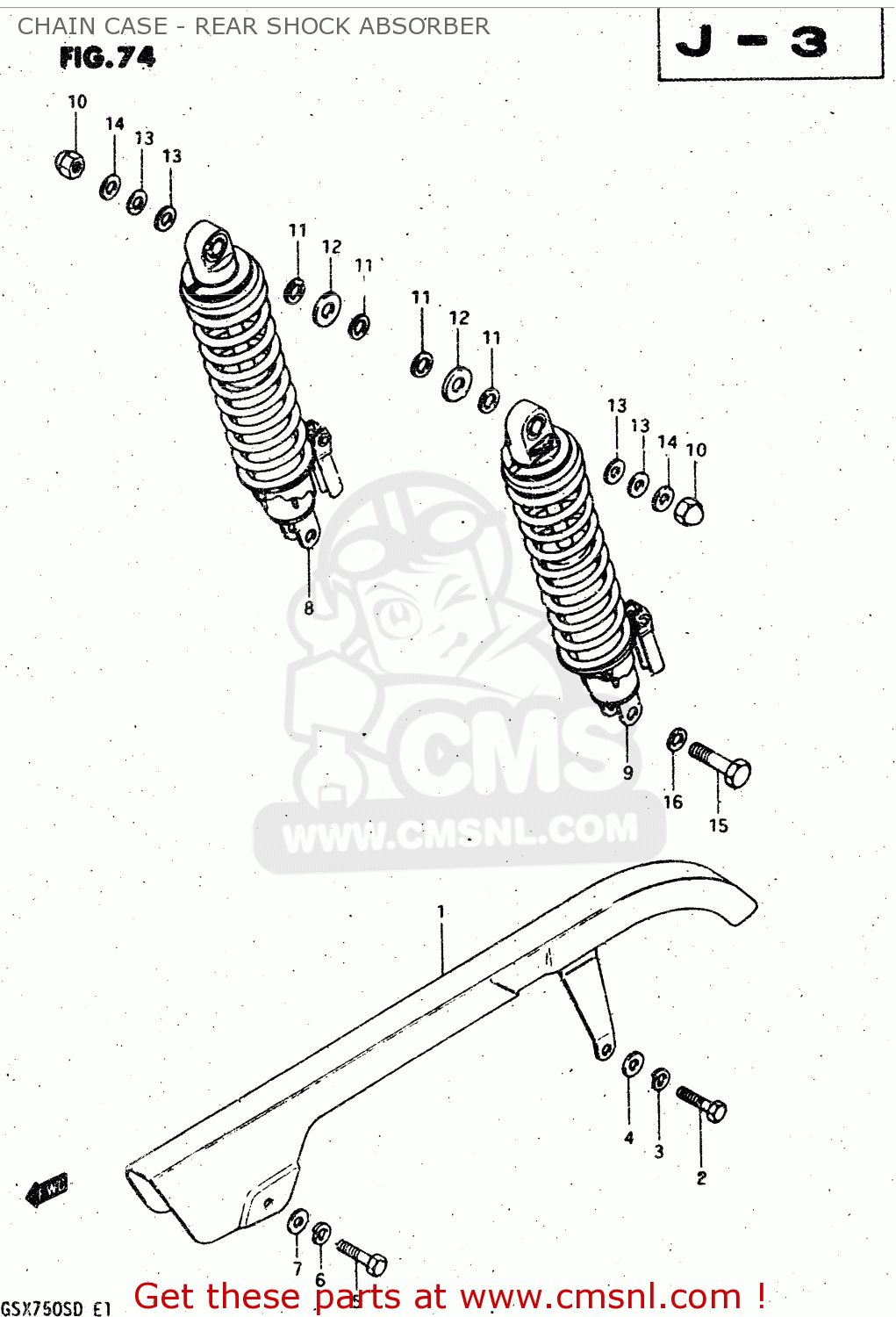

Chain case - rear shock absorber diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

CHAIN CASE - REAR SHOCK ABSORBER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CHAIN CASE - REAR SHOCK ABSORBER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CHAIN CASE - REAR SHOCK ABSORBER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1
6131049300291
ref: 1
CASE,CHAIN
€ 115.50
2
0110706258
ref: 2
BOLT
€ 2.00
3
0832121068
ref: 3
LOCK WASHER
0832121068
€ 2.50
4
0832221068
ref: 4
WASHER
0832221068
€ 2.00
5
0110706128
ref: 5
BOLT
0110706128
€ 2.00
6
0832121068
ref: 6
LOCK WASHER
0832121068
€ 2.50
7
0916006007
ref: 7
WASHER
0916006007
€ 2.00
8-1
6210349300
ref: 8-1
MODEL Z
SHOCK ABSORBER, REAR RH
€ 419.50
8-2
6210349320
ref: 8-2
MODEL D (BLACK)
ABSORBER ASSY,RR SHOCK,R
6210349320
€ 419.50
9-1
6210449300
ref: 9-1
MODEL Z
SHOCK ABSORBER, REAR LH
€ 440.50
9-2
6210449320
ref: 9-2
MODEL D (BLACK)
ABSORBER ASSY,RR SHOCK,L
6210449320
€ 440.50
10
0831311108
ref: 10
NUT, LOWER LH
0831311108
€ 2.50
11
0832211128
ref: 11
WASHER
0832211128
€ 2.00
12
0916012012
ref: 12
WASHER (12.5X24X3.2)
0916012012
€ 2.50
13-1
0916010001
ref: 13-1
WASHER
0916010001
€ 2.00
13-2
0916010001
ref: 13-2
MODEL Z:E16,E21,E22,
WASHER
0916010001
€ 2.00
14
0916010033
ref: 14
WASHER(10.5X24X3.2)
0916010033
€ 2.00
15
0910410002
ref: 15
BOLT(10X36)
0910410002
€ 4.50
16
0832211108
ref: 16
WASHER
€ 2.50
