CYLINDER HEAD COVER (E.NO.103622~)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

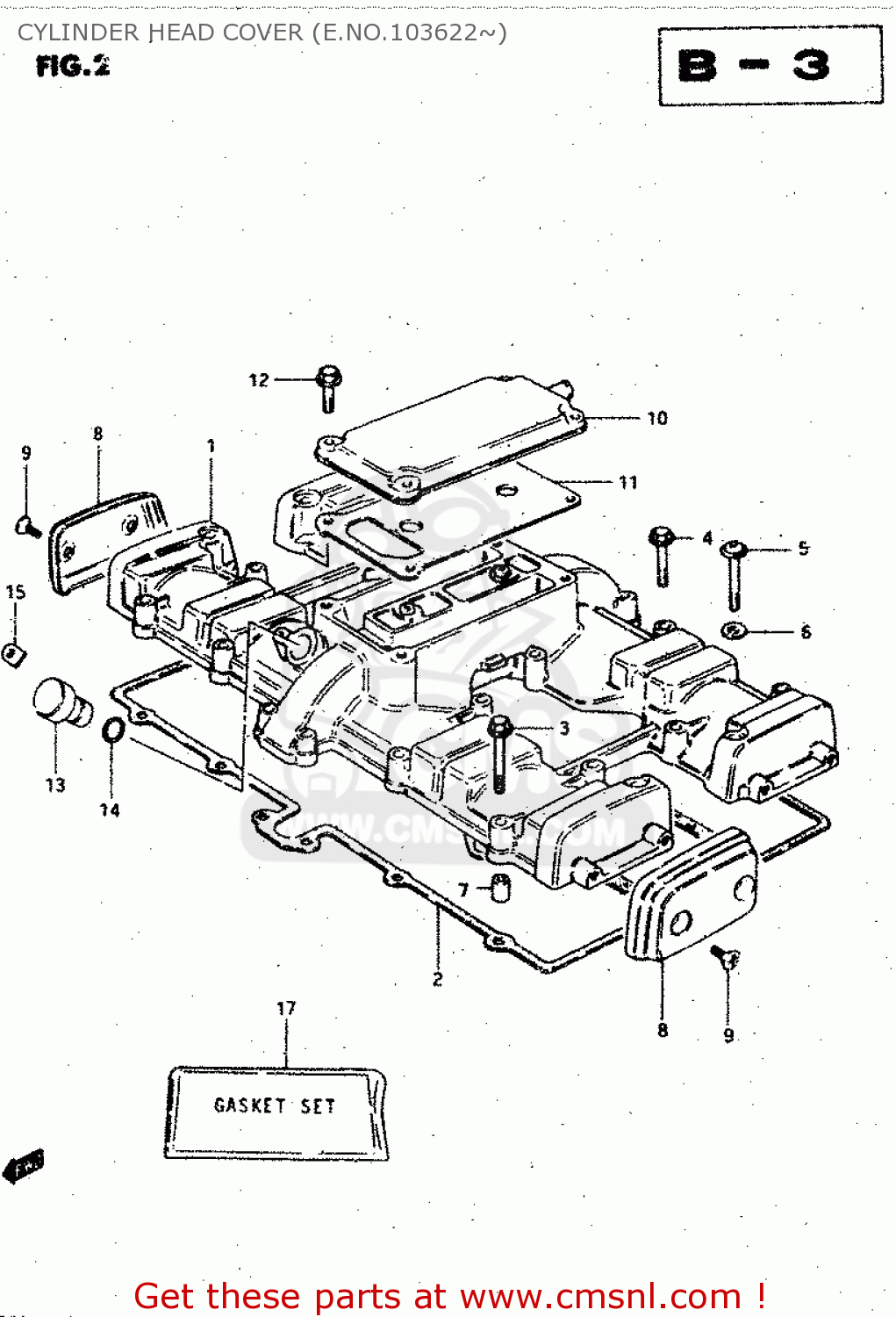

Cylinder head cover (e.no.103622~) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

CYLINDER HEAD COVER (E.NO.103622~) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CYLINDER HEAD COVER (E.NO.103622~) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CYLINDER HEAD COVER (E.NO.103622~) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1
1117145420
ref: 1
COVER,CYLINDER HEAD
€ 259.50
2
1117349210
ref: 2
GASKET,CYLINDER HEAD COVER (MCA)
1117349210
€ 47.00
3
0151706408
ref: 3
BOLT
0151706408
€ 2.50
4
0151706358
ref: 4
BOLT 6X35
0151706358
€ 2.50
5
0215206408
ref: 5
SCREW 6X40
0215206408
€ 3.00
6
0916806015
ref: 6
WASHER
0916806015
€ 2.00
7
0920608001
ref: 7
PIN(6.2X8X11)
0920608001
€ 2.00
8
1117449210
ref: 8
CAP,CYLINDER HEAD COVER
1117449210
€ 28.50
9
0912705013
ref: 9
SCREW(5X12)
0912705013
€ 2.50
10
1117645402
ref: 10
COVER,BREATHER
1117645402
€ 24.50
11
1117745400
ref: 11
GASKET (MCA)
1117745400
€ 19.00
12
0151706208
ref: 12
BOLT,REAR
€ 2.50
13
2644245000
ref: 13
PLUG,TACH GEAR SLEEVE HOLE
2644245000
€ 15.50
14
2645145000A
ref: 14
SEAL,TACHOMETER DRIVEN
2645145000A
€ 4.50
15
2644933000
ref: 15
PLATE,TACH DRIVE GEAR SLEEVE
2644933000
€ 3.50
16
0912805101
ref: 16
SCREW(5X12)
0912805101
€ 1.50
17
1140045891
ref: 17
OPT
GASKET SET
€ 187.00
