REAR WHEEL (GSX750SZ)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

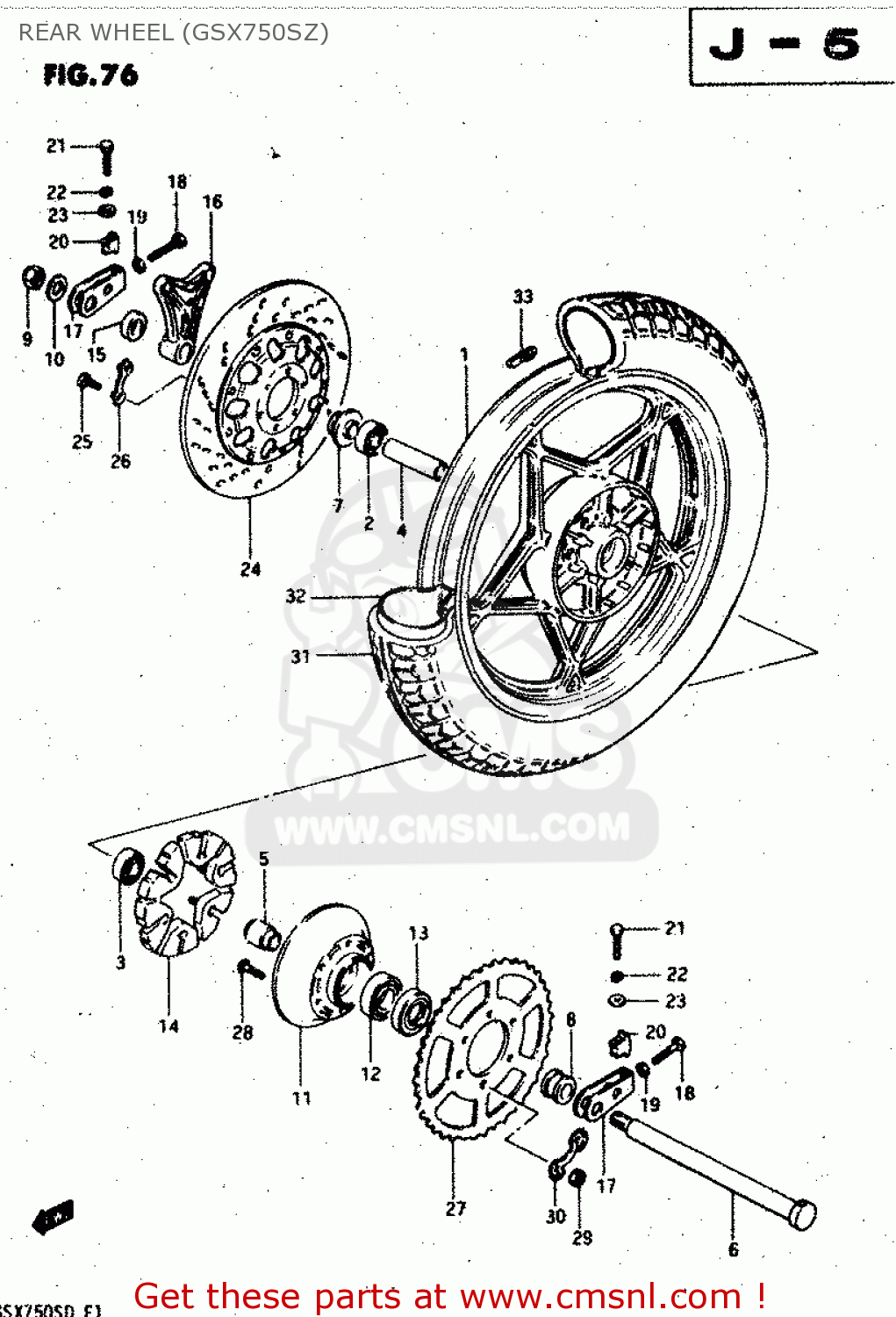

Rear wheel (gsx750sz) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

REAR WHEEL (GSX750SZ) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
REAR WHEEL (GSX750SZ) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
REAR WHEEL (GSX750SZ) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1
641114930012U
ref: 1
CASTING WHEEL,REAR 2.15
641114930012U
€ 420.00
2
0813362047
ref: 2
BEARING WHEEL REAR(20X47X14)
0813362047
€ 22.50
3
0815362047
ref: 3
BEARING, LH
0815362047
€ 21.00
4
6473145000
ref: 4
SPACER,REAR HUB BEARING
6473145000
€ 18.50
5
6473331000
ref: 5
SPACER,REAR HUB BEARING
6473331000
€ 20.00
6
6471149000
ref: 6
AXLE,REAR
€ 59.00
7
6474045001
ref: 7
SPACER,REAR AXLE
€ 15.00
8
0918020054
ref: 8
SPACER(20X33X28.3)
0918020054
€ 13.00
9
0915918002
ref: 9
NUT
€ 5.00
10
0916019008
ref: 10
WASHER(19X34X4)
0916019008
€ 3.00
11
6461131001
ref: 11
DRUM,REAR SPROCKET MOUNT
€ 140.00
12
0811363050
ref: 12
BEARING
0811363050
€ 21.50
13
0928533001
ref: 13
SEAL,OIL(33X62X7)
0928533001
€ 20.00
14
6465131000
ref: 14
ABSORBER,REAR HUB SHOCK
6465131000
€ 9.50
15
0918020070
ref: 15
SPACER (20X38X17)
0918020070
€ 10.00
16
6972147011
ref: 16
BRACKET,RR,CALIPER
6972147011
€ 29.00
17
6141031001
ref: 17
ADJUSTER,CHAIN
6141031001
€ 50.00
18
0910408006
ref: 18
BOLT
0910408006
€ 3.00
19
0831012088
ref: 19
NUT
0831012088
€ 2.00
20
6143331000
ref: 20
SUPPORTER,CHAIN ADJUST
6143331000
€ 22.50
21
0110708608
ref: 21
BOLT
€ 2.50
22
0832121088
ref: 22
LOCK WASHER
0832121088
€ 2.00
23
0832211088
ref: 23
WASHER
0832211088
€ 2.00
24
5921018450
ref: 24
DISC,RR BRAKE
5921018450
€ 446.00
25
0910008094
ref: 25
BOLT(8X30)
0910008094
€ 2.50
26
0916908016
ref: 26
WASHER
0916908016
€ 3.50
27
6451145001
ref: 27
SPROCKET,RR
6451145001
€ 82.00
28
0911910002
ref: 28
BOLT
0911910002
€ 3.50
29
0914010026
ref: 29
NUT
0914010026
€ 2.00
30
0916910007
ref: 30
WASHER
0916910007
€ 7.50
31-1
6510045410
ref: 31-1
IRC
TIRE 4.00-H18
€ 0.00
31-2
6510045530
ref: 31-2
BS
TIRE (120/90-18 67H)
€ 0.00
32-1
6520049015
ref: 32-1
TUBE,INNER
€ 39.00
32-2
6520015030
ref: 32-2
TUBE ASSEMBLY,WHEEL,INNER
€ 39.00
33-1
5541149300
ref: 33-1
BALANCER,WHEEL
€ 7.00
33-2
5541249300
ref: 33-2
BALANCER,WHEEL (30G)
5541249300
€ 4.00
