CRANKCASE COVER (MODEL D)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

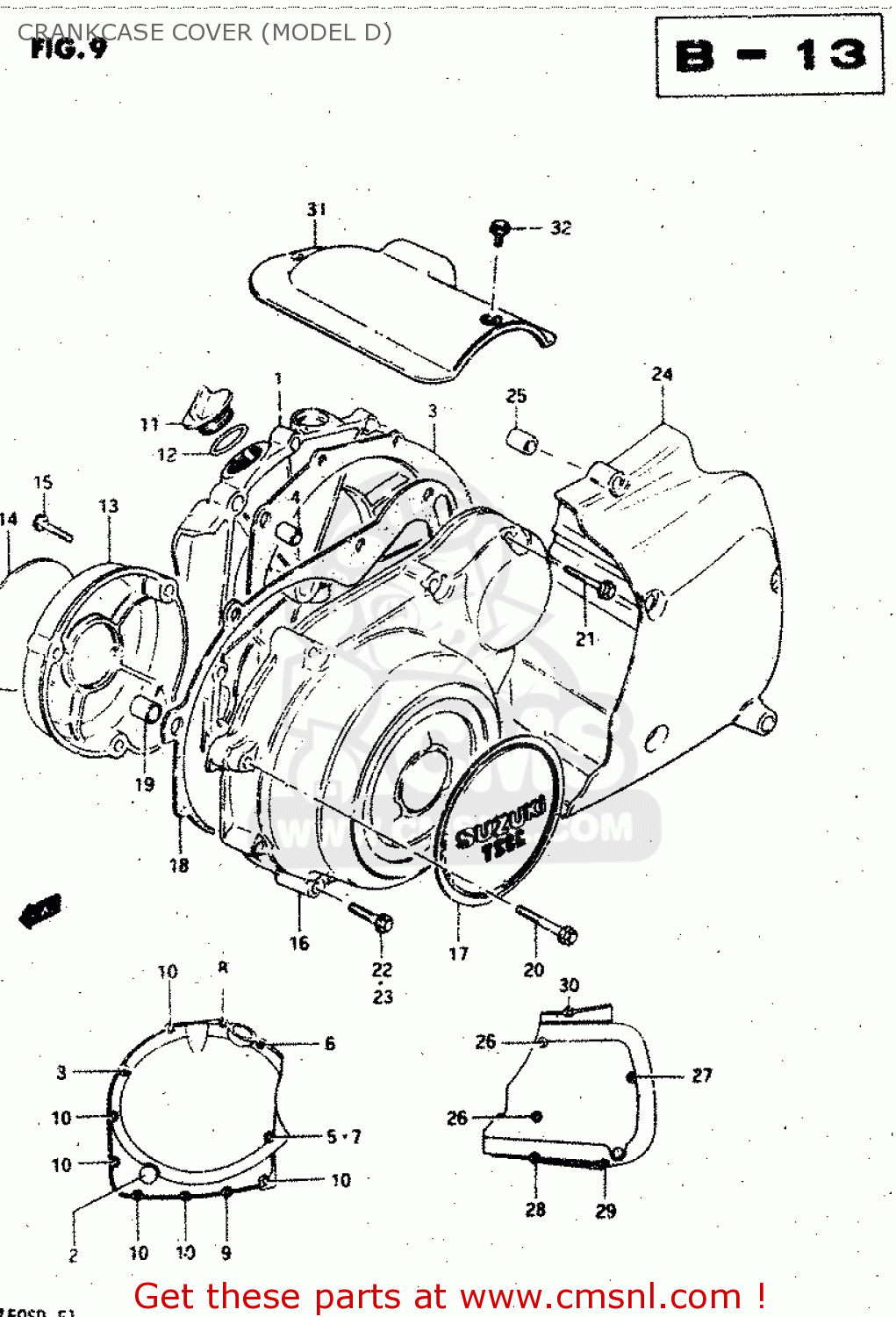

Crankcase cover (model d) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

CRANKCASE COVER (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

CRANKCASE COVER (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

prices are in EUR

ref

part #

description

quantity

1

1134045411
ref: 1

COVER,CLUTCH

€ 187.50

2

1197145010
ref: 2

LENS,OIL LEVEL CHECK

€ 13.00

3

1148245400
ref: 3

GASKET,CLUTCH COVER (MCA)

€ 20.00

4

0421109129
ref: 4

PIN

€ 2.00

5

0916806015
ref: 5

WASHER

€ 2.00

6

0154706404
ref: 6

BOLT 6X40

€ 3.00

7

0154706354
ref: 7

BOLT 6X35

€ 3.00

8

0154706304
ref: 8

BOLT 6X30

€ 2.50

9

0154706254
ref: 9

BOLT 6X25

€ 2.50

10

0154706205
ref: 10

BOLT 6X20

€ 2.50

11

0925930001
ref: 11

CAP

€ 8.50

12

0928032005
ref: 12

O RING(D:2.2,ID:32)

€ 2.00

13

1138145412
ref: 13

COVER,CONTACT BREAKER

€ 54.00

14

6823549500
ref: 14

EMBLEM

€ 21.50

15

0154705304
ref: 15

BOLT 5X30

€ 2.50

16

1135145411
ref: 16

COVER

€ 293.00

17

6823349500
ref: 17

EMBLEM,MAGNETO COVER

€ 23.50

18

1148349200
ref: 18

GASKET,MAGNETO COVER (MCA)

€ 13.00

19

0920613001
ref: 19

PIN

€ 2.50

20

0154706454
ref: 20

BOLT

€ 3.00

21

0154706404
ref: 21

BOLT 6X40

€ 3.00

22

0154706354
ref: 22

BOLT 6X35

€ 3.00

23

0154706304
ref: 23

BOLT 6X30

€ 2.50

24

1136045411
ref: 24

COVER,ENGINE SPROCKET

€ 141.50

25

0421109129
ref: 25

PIN

€ 2.00

26

0154706955
ref: 26

BOLT (6X95)

€ 3.50

27

0154706855
ref: 27

BOLT (6X85)

€ 2.50

28

0154706705
ref: 28

BOLT (6X70)

€ 3.00

29

0154706555
ref: 29

BOLT (6X55)

€ 3.00

30

0154706304
ref: 30

BOLT 6X30

€ 2.50

31

1138245410
ref: 31

COVER,STARTER MOTOR

€ 35.00

32

0154705084
ref: 32

BOLT

€ 2.50
