MASTER CYLINDER

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

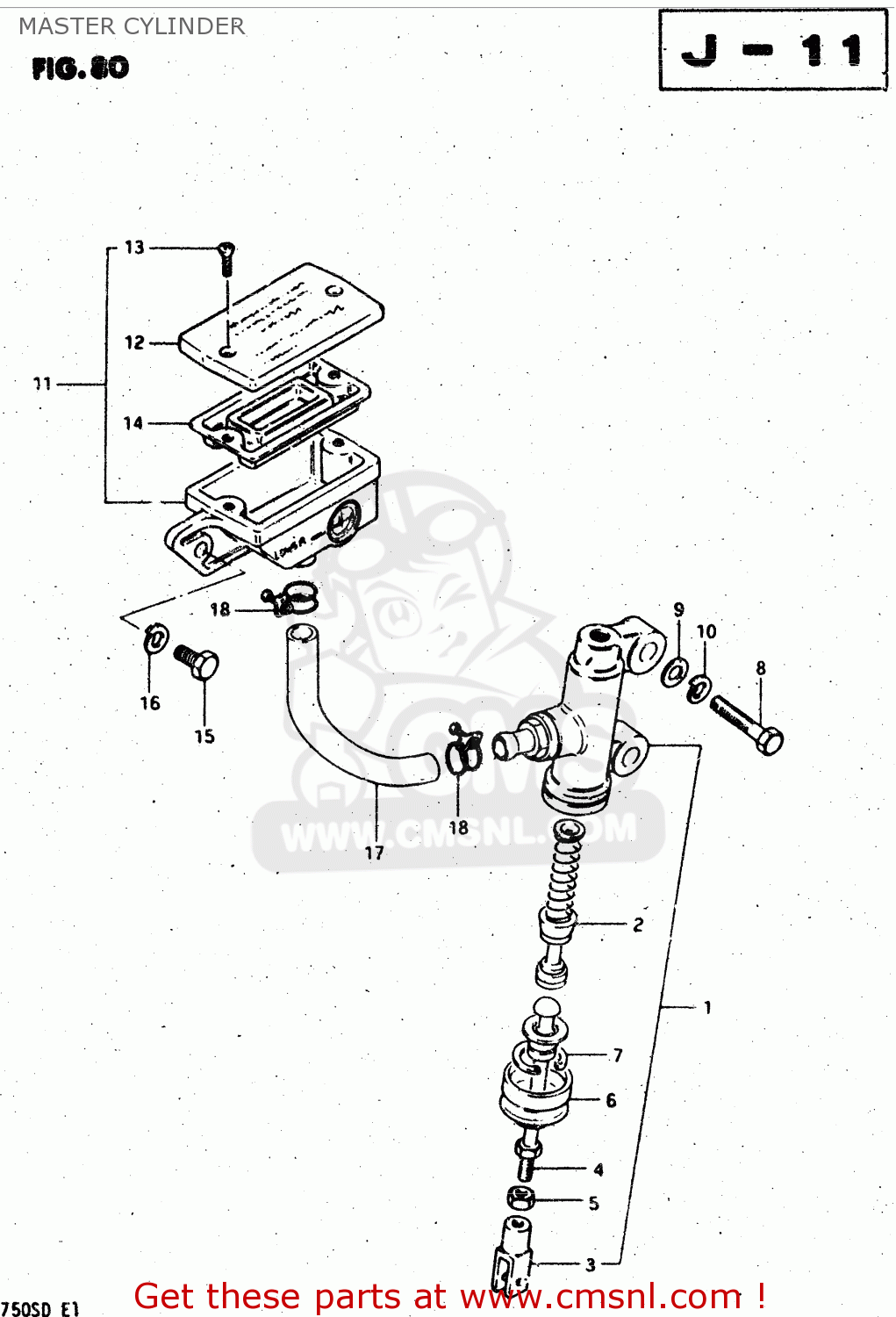

Master cylinder diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

MASTER CYLINDER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

MASTER CYLINDER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

prices are in EUR

ref

part #

description

quantity

1

6960047010
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 182.00

2

6960045820
ref: 2

PISTON/CUP SET

€ 53.00

3

6969247010
ref: 3

YOKE

€ 9.00

4

6967045010
ref: 4

LOD,PUSH

€ 11.50

5

6969347010
ref: 5

NUT,MASTER CYLINDER

€ 1.50

6

6969145001
ref: 6

BOOT

€ 6.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

0110708308
ref: 8

BOLT (8X30)

€ 2.50

9

0832211088
ref: 9

WASHER

€ 2.00

10

0832121088
ref: 10

LOCK WASHER

€ 2.00

11

6974049300
ref: 11

RESERVOIR TANK ASSY

€ 84.00

12

6966949300
ref: 12

CAP

€ 30.00

13

6968949300
ref: 13

SCREW

€ 1.50

14

6966749300
ref: 14

6966749300

15

0110706168
ref: 15

BOLT, UPPER

€ 3.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

6973149300
ref: 17

HOSE,RESERVOIR TANK

€ 5.50

18

0940016302
ref: 18

CLAMP

€ 4.50
