CYLINDER

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

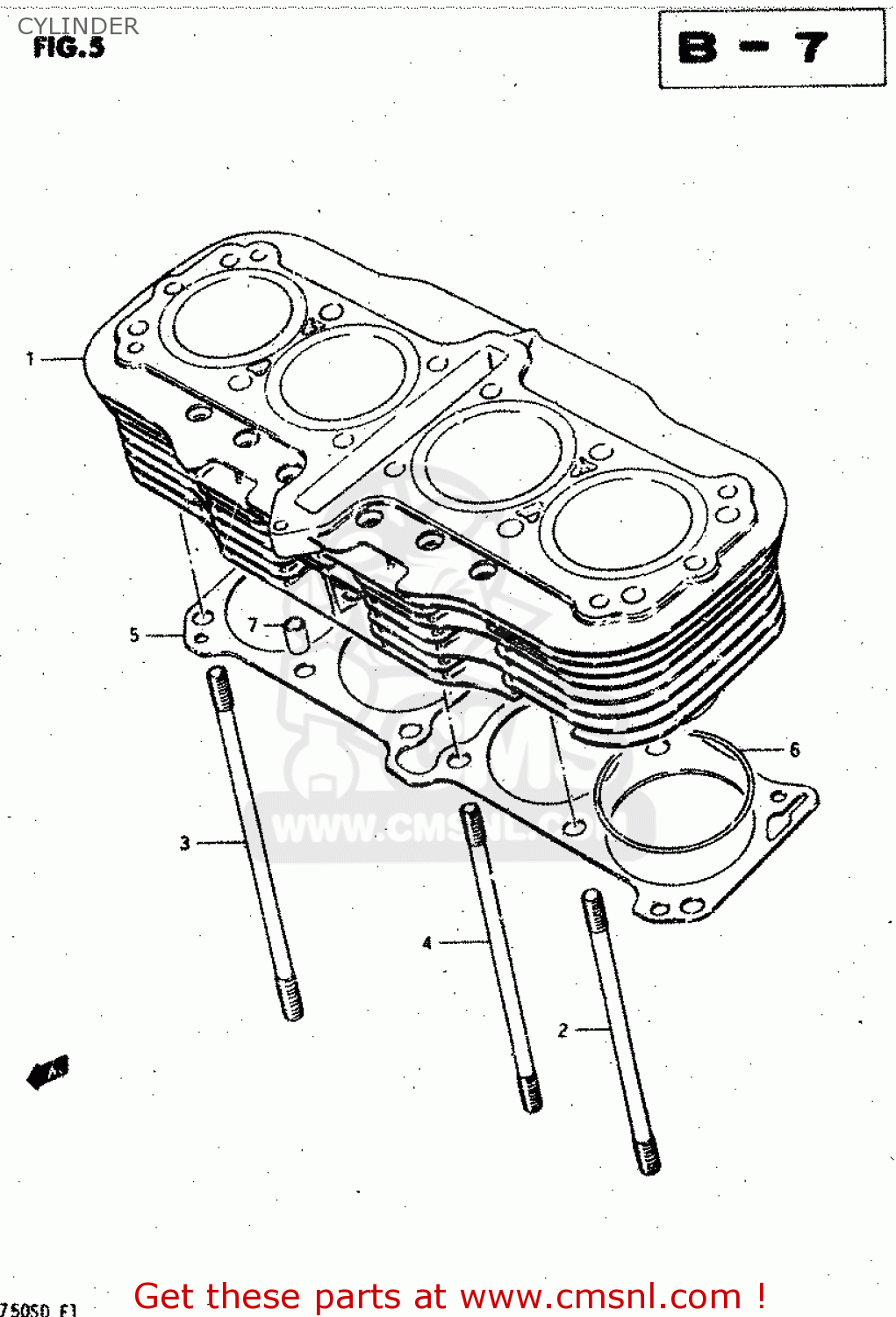

Cylinder diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

CYLINDER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CYLINDER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CYLINDER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
1121045420
ref: 1-1
MODEL Z
CYLINDER
1121045420
€ 785.50
1-2
1121045410
ref: 1-2
MODEL D
CYLINDER
€ 519.50
2
0910810032
ref: 2
STUD
0910810032
€ 5.50
3
0910810034
ref: 3
STUD
0910810034
€ 7.00
4
0910810033
ref: 4
STUD
0910810033
€ 12.50
5
1124145401
ref: 5
GASKET,CYLINDER (MCA)
1124145401
€ 23.50
6
0928070001
ref: 6
O RING(D:2,ID:70)
0928070001
€ 7.50
7
0920613006
ref: 7
PIN
0920613006
€ 9.00
