CARBURETOR (MODEL D)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

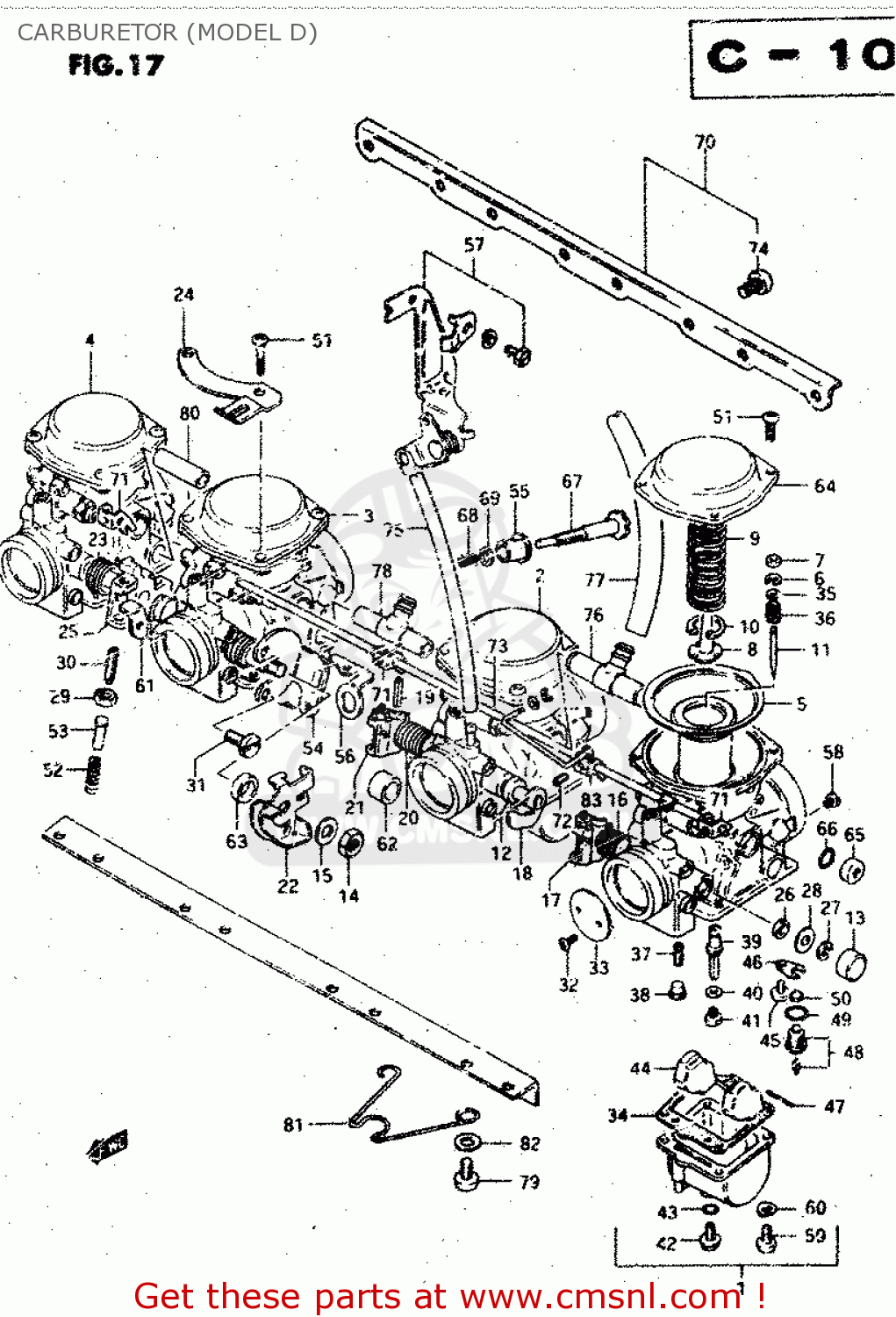

Carburetor (model d) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

CARBURETOR (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CARBURETOR (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CARBURETOR (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
1320145540
ref: 1-1
CARBURETOR, LH
€ 249.50
1-2
1320145550
ref: 1-2
E18
CARBURETOR, LH
1320145550
€ 328.00
2-1
1320245540
ref: 2-1
CARBURETOR, ML
€ 0.00
2-2
1320245550
ref: 2-2
E18
CARBURETOR, ML
€ 0.00
3-1
1320345540
ref: 3-1
CARBURETOR, MR
€ 0.00
3-2
1320345550
ref: 3-2
E18
CARBURETOR, MR
€ 0.00
4-1
1320445540
ref: 4-1
CARBURETOR, RH
€ 0.00
4-2
1320445550
ref: 4-2
E18
CARBURETOR, RH
€ 0.00
5-1
1350049250
ref: 5-1
DIAPHRAGM,CARBURETOR
1350049250
€ 128.50
5-2
1350045520
ref: 5-2
E18
DIAPHRAGM
€ 0.00
6
1339431210
ref: 6
CLIP,NEEDLE
1339431210
€ 3.50
7
1338744030
ref: 7
RING
1338744030
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
1338944030
€ 10.50
9
1350344080
ref: 9
SPRING
1350344080
€ 11.50
10
1358144030
ref: 10
E RING
1358144030
€ 6.50
11
1338345120
ref: 11
NEEDLE, JET (5057-2)
1338345120
€ 14.00
12
1355749200
ref: 12
ML,MR
GASKET
1355749200
€ 7.00
13
1357845530
ref: 13
RH,LH
CAP,THROTTLE SHAFT
€ 5.50
14
0831022088
ref: 14
MR
NUT 8MM
0831022088
€ 2.00
15
1360647070
ref: 15
MR
WASHER
1360647070
€ 3.00
16
1357347070
ref: 16
LH
SPRING,THROTTLE SHAFT
1357347070
€ 6.00
17
1355049200
ref: 17
LH
SHAFT,THROTTLE
€ 0.00
18
1355045500
ref: 18
ML
SHAFT ASSEMBLY
€ 0.00
19
1356347070
ref: 19
LH,ML,RH
PIN,THROTTLE SHAFT
€ 0.00
20
1357345110
ref: 20
ML
SPRING,THROTTLE SHAFT
€ 0.00
21
1355347070
ref: 21
ML
LEVER,THROTTLE SHAFT
€ 0.00
22
1355547070
ref: 22
MR
LEVER ASSEMBLY,THROTTLE
€ 0.00
23
1357347080
ref: 23
MR,RH
SPRING,THROTTLE SHAFT
€ 0.00
24
1362145530
ref: 24
MR
BRACKET
€ 0.00
25
1355049200
ref: 25
RH
SHAFT,THROTTLE
€ 0.00
26
1365151010
ref: 26
SEAL
1365151010
€ 4.00
27
1361744080
ref: 27
LH,RH
E RING
1361744080
€ 3.50
28
1355747070
ref: 28
LH,RH
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
29
1360747070
ref: 29
LH,ML,RH
NUT
1360747070
€ 4.00
30
1360547080
ref: 30
LH,ML,RH
SCREW
1360547080
€ 7.00
31
1360545420
ref: 31
MR
SCREW
€ 2.00
32
1360444080
ref: 32
SCREW
1360444080
€ 3.50
33
1355149200
ref: 33
VALVE,THROTTLE (BUTTERFLY)
€ 17.00
34
1325144080
ref: 34
GASKET,FLOAT CHAMBER (NAS)
1325144080
€ 9.50
35
1338244030
ref: 35
WASHER
1338244030
€ 3.50
36
1338844030
ref: 36
SPRING
1338844030
€ 6.00
37
0949242007
ref: 37
JET,PILOT(42.5)
0949242007
€ 8.50
38
1335744080
ref: 38
PLUG,NEEDLE JET
1335744080
€ 4.50
39
0949400339
ref: 39
JET, NEEDLE (X-2)
€ 12.50
40
1333244080
ref: 40
WASHER,NEEDLE NOZZLE
€ 2.50
41
0949122015
ref: 41
JET,MAIN(112.5)
0949122015
€ 11.00
42
1324744080
ref: 42
PLUG,DRAIN
1324744080
€ 9.50
43
1324644080
ref: 43
GASKET (NAS)
1324644080
€ 3.50
44
1325044080
ref: 44
FLOAT
1325044080
€ 31.00
45
0211204068
ref: 45
SCREW 4X6
0211204068
€ 2.00
46
1337311400
ref: 46
PLATE,NEEDLE VALVE FITING
1337311400
€ 7.00
47
1325492311
ref: 47
PIN,FLOAT
1325492311
€ 2.00
48
1337011400
ref: 48
VALVE ASSEMBLY,NEEDLE
1337011400
€ 40.50
49
1337444080
ref: 49
O-RING,NEEDLE VALVE
1337444080
€ 6.00
50
1337665010
ref: 50
FILTER
€ 6.50
51
0211205168
ref: 51
SCREW
0211205168
€ 2.50
52
1326044010
ref: 52
LH,ML,RH
SPRING
€ 0.00
53
1357547070
ref: 53
LH,ML,RH
PIN,THROTTLE LEVER
1357547070
€ 2.50
54
1362745110
ref: 54
MR
BRACKET,THROTTLE ADJUST
€ 0.00
55
1327631210
ref: 55
MR
BUSH
1327631210
€ 4.00
56
1362744090
ref: 56
MR
BRACKET,THROTTLE ADJUST
€ 0.00
57
1362745530
ref: 57
ML
BRACKET,THROTTLE
€ 0.00
58
0949330005
ref: 58
JET,AIR
0949330005
€ 17.00
59
0211205165
ref: 59
SCREW
0211205165
€ 2.00
60
0832121055
ref: 60
WASHER,LOCK
0832121055
€ 3.00
61
1355049230
ref: 61
MR
SHAFT,THROTTLE
€ 0.00
62
1357445110
ref: 62
ML
RING
€ 3.50
63
1357445120
ref: 63
MR
RING
€ 2.50
64
1350245530
ref: 64
COVER,DIAPHRAGM
€ 0.00
65
1368231210
ref: 65
CAP,STARTER VALVE
1368231210
€ 5.00
66
1327847090
ref: 66
O RING
1327847090
€ 2.00
67
1326747070
ref: 67
MR
SCREW
1326747070
€ 21.00
68
1327193011
ref: 68
MR
SPRING
1327193011
€ 4.50
69
1343247090
ref: 69
MR
WASHER
1343247090
€ 2.50
70
1321045530
ref: 70
CARBURETOR ASSEMBLY
€ 0.00
71
1342249330
ref: 71
LEVER
€ 10.00
72
1360549330
ref: 72
SCREW
1360549330
€ 5.50
73
1341045530
ref: 73
SHAFT,STARTER
€ 0.00
74
1360245540
ref: 74
SCREW
€ 0.00
75
1368345110
ref: 75
HOSE
€ 14.00
76
1368547070
ref: 76
NIPPLE
1368547070
€ 25.00
77
1368345530
ref: 77
HOSE
€ 18.00
78
1368545110
ref: 78
NIPPLE
1368545110
€ 31.50
79
1360245530
ref: 79
SCREW
€ 0.00
80
1368549210
ref: 80
NIPPLE
1368549210
€ 16.50
81
1361949210
ref: 81
CLIP
1361949210
€ 10.00
82
1361549200
ref: 82
WASHER
€ 0.00
83
1342247070
ref: 83
LEVER ASSY
1342247070
€ 11.50
