CYLINDER HEAD

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

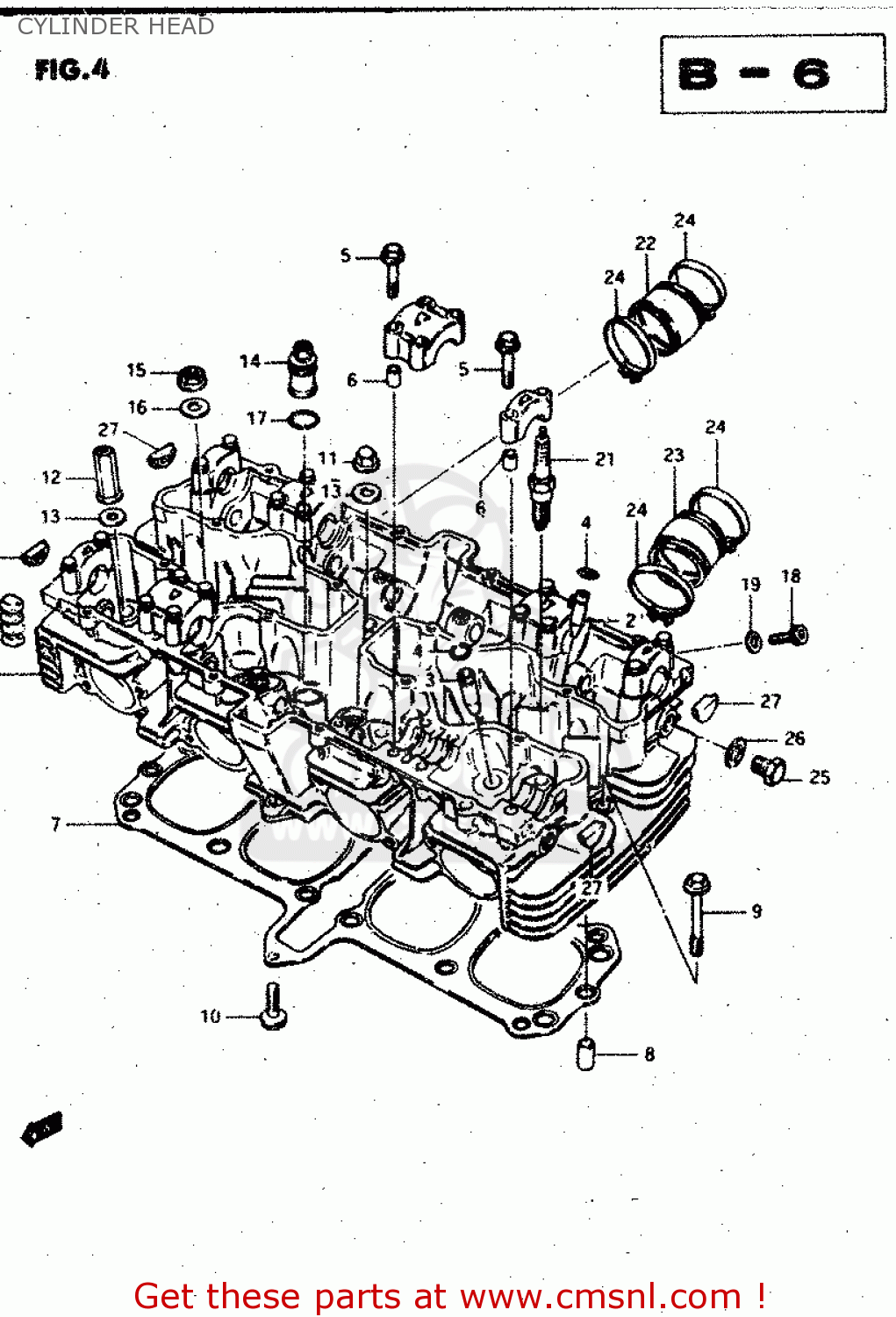

Cylinder head diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

CYLINDER HEAD GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CYLINDER HEAD GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
CYLINDER HEAD GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
1110045430
ref: 1-1
~E.NO.103621 TO 1110
HEAD ASSEMBLY,CYLINDER
€ 637.00
1-2
1110045450
ref: 1-2
E.NO.103622~
HEAD SET,CYLINDER
€ 1,521.00
1-3
1110045470
ref: 1-3
MODEL D
HEAD ASSEMBLY,CYLINDER
€ 626.00
2
1111549290
ref: 2
GUIDE,INTAKE VALVE
1111549290
€ 19.50
3
1111549290
ref: 3
GUIDE,INTAKE VALVE
1111549290
€ 19.50
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0910306026
ref: 5
BOLT(6X39)
0910306026
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7
1114145410
ref: 7
GASKET,CYLINDER HEAD (NAS)
1114145410
€ 83.50
8
0421111189
ref: 8
PIN
0421111189
€ 2.00
9-1
0151706558
ref: 9-1
MODEL Z
BOLT
€ 2.50
9-2
0151706555
ref: 9-2
MODEL D
BOLT 6X55
€ 2.00
10-1
0151706308
ref: 10-1
MODEL Z
BOLT
€ 2.00
10-2
0151706305
ref: 10-2
MODEL D
BOLT 6X30
€ 2.50
11
0915910026
ref: 11
NUT
0915910026
€ 6.00
12
0915910029
ref: 12
NUT
0915910029
€ 59.50
13
0916810017
ref: 13
GASKET(10.5X22X2) (NAS)
0916810017
€ 3.50
14
1114549200
ref: 14
NUT,CYLINDER HEAD SEAL
1114549200
€ 12.50
15
0831616108
ref: 15
NUT
0831616108
€ 2.00
16
0916010039
ref: 16
WASHER(10.5X22X2.3)
0916010039
€ 2.50
17
0928017002
ref: 17
O RING(D:2.4,ID:16.8)
0928017002
€ 3.50
18
0910605006
ref: 18
BOLT
0910605006
€ 2.00
19
0916805010
ref: 19
GASKET(5.3X9.3X1.2) (NAS)
0916805010
€ 2.00
20
1125136500
ref: 20
PAD,CYLINDER
1125136500
€ 6.50
21-1
0948200144
ref: 21-1
SPARK PLUG D8EA
0948200144
€ 3.50
21-2
0948200145
ref: 21-2
SPARK PLUG X24ES-U
€ 3.50
21-3
0948200149
ref: 21-3
E2,E4,E6,E15,E16,E17
SPARK PLUG DR8ES-L
0948200149
€ 3.50
21-4
0948200223
ref: 21-4
E2,E4,E6,E15,E16,E17
PLUG,SPARK(X24ESR-U)
€ 3.50
22
1311145500
ref: 22
PIPE,INTAKE,R
1311145500
€ 22.00
23
1312145500
ref: 23
PIPE,INTAKE
1312145500
€ 22.00
24
0940250306
ref: 24
CLAMP
0940250306
€ 6.00
25
0924714012
ref: 25
PLUG (14X12)
0924714012
€ 3.50
26
0916814004
ref: 26
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
27
0924123002
ref: 27
PLUG
0924123002
€ 8.50
