FRAME COVER (MODEL Z)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

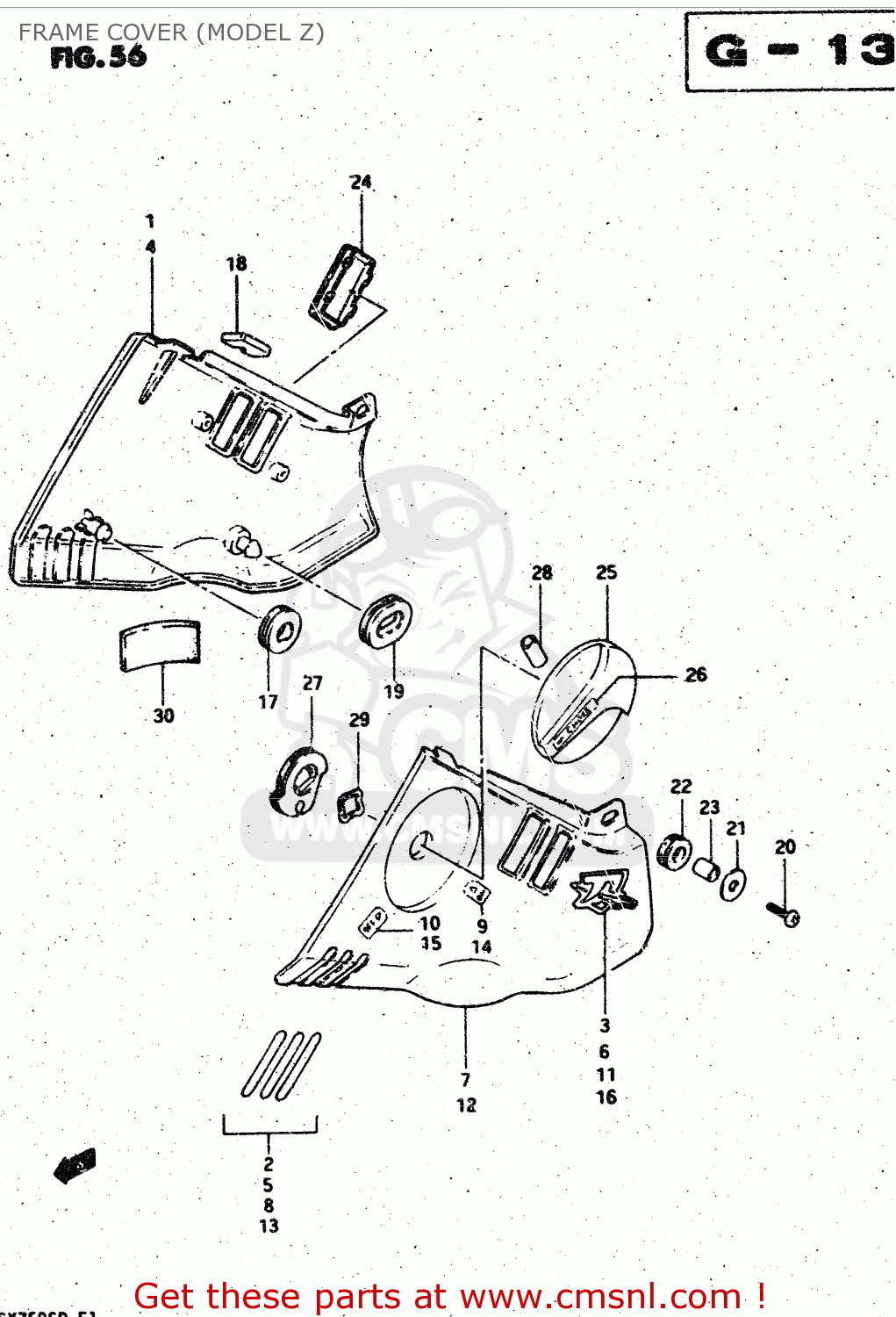

Frame cover (model z) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

FRAME COVER (MODEL Z) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

FRAME COVER (MODEL Z) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

prices are in EUR

ref

part #

description

quantity

1

471014982013L
ref: 1

COVER SET,FRAME,R(SILVER)

€ 360.00

2

6813449300
ref: 2

LABEL,FRAME COVER DENT

€ 6.00

3

681313431067T
ref: 3

EMBLEM

€ 15.50

4

471014982011W
ref: 4

COVER, FRAME RH (RED)

€ 59.50

5

6813449300
ref: 5

LABEL,FRAME COVER DENT

€ 6.00

6

681313431080U
ref: 6

EMBLEM,FRAME COVER

€ 5.00

7

472014982013L
ref: 7

COVER SET,FRAME,L(SILVER)

€ 393.00

8

6814449300
ref: 8

LABEL,FRAME COVER

€ 6.00

9

6822449300
ref: 9

LABEL,CHOKE ON

€ 1.50

10

6822549300
ref: 10

LABEL,CHOKE OFF

€ 1.50

11

681313431067T
ref: 11

EMBLEM

€ 15.50

12

472014982011W
ref: 12

COVER, FRAME LH (RED)

€ 71.00

13

6814449300
ref: 13

LABEL,FRAME COVER

€ 6.00

14

6822449300
ref: 14

LABEL,CHOKE ON

€ 1.50

15

6822549300
ref: 15

LABEL,CHOKE OFF

€ 1.50

16

681313431080U
ref: 16

EMBLEM,FRAME COVER

€ 5.00

17

0932008018
ref: 17

CUSHION

€ 4.00

18

0932902002
ref: 18

CUSHION

€ 1.50

19

0932908003
ref: 19

CUSHION

€ 3.50

20

0214206167
ref: 20

SCREW

€ 2.00

21

0916006020
ref: 21

WASHER

€ 2.00

22

0932008007
ref: 22

CUSHION

€ 4.00

23

0918006038
ref: 23

SPACER(6.1X9X7.5)

€ 2.00

24

4712949300
ref: 24

CAP,FRAME COVER SWITCH HOLE

€ 2.50

25-1

584814930113L
ref: 25-1

LEVER,CHOKE CABLE

€ 61.00

25-2

584814930111W
ref: 25-2

LEVER, STARTER (RED)

€ 28.50

26

6822349300
ref: 26

LABEL,CHOKE LEVER

€ 2.00

27

5848249300
ref: 27
TO 58482-49301

HOLDER, STARTER

€ 6.50

28

5848349300
ref: 28

TUBE,CHOKE CABLE LEVER

€ 1.50

29

0916416003
ref: 29

WASHER

€ 2.50

30

7882167000
ref: 30

PAD

€ 2.00
