STARTING MOTOR (MODEL D)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

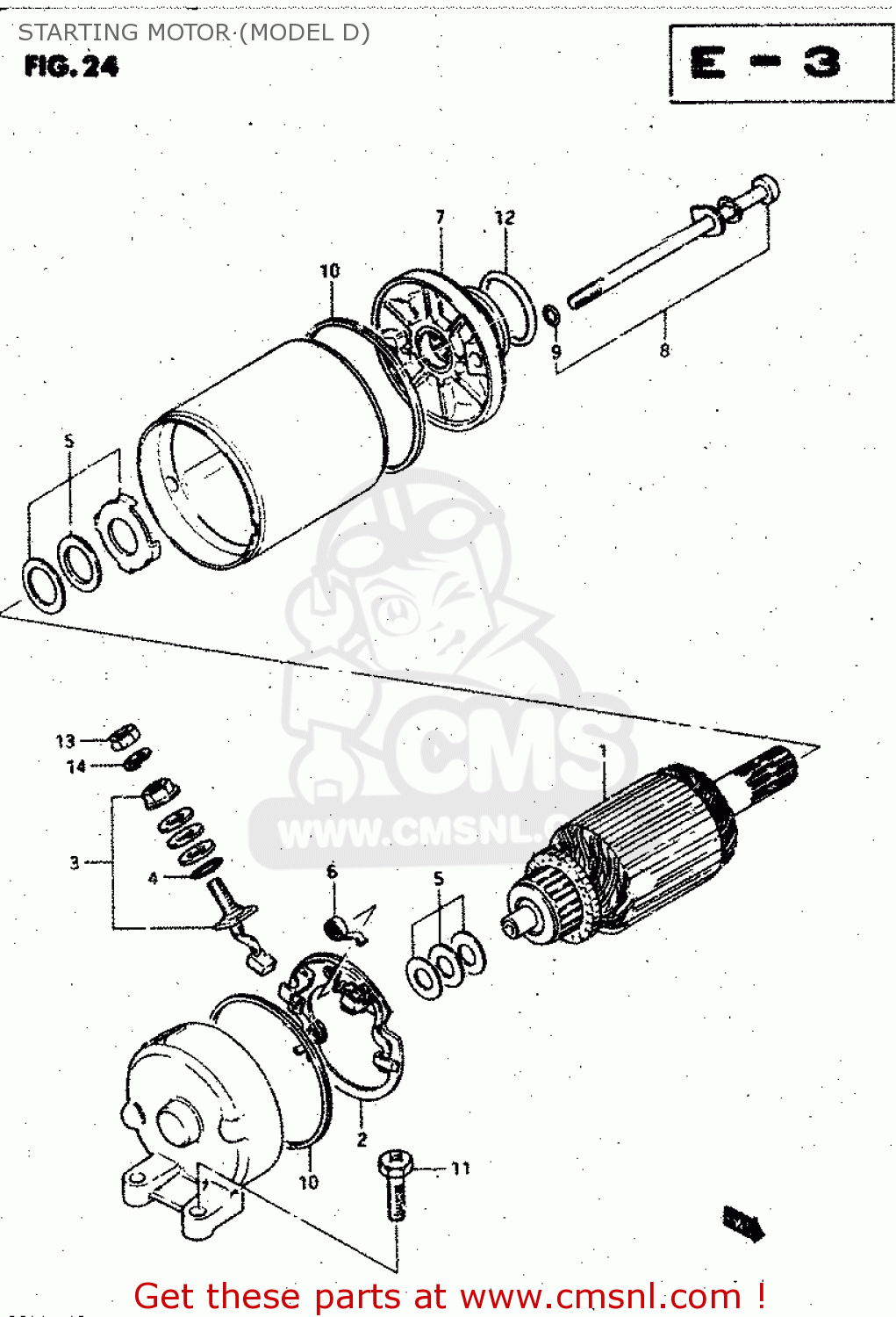

Starting motor (model d) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

STARTING MOTOR (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
STARTING MOTOR (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
STARTING MOTOR (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
0
3110049050
ref: 0
MITSUBA
MOTOR ASSY,STARTING
3110049050
€ 911.00
1
3131131300
ref: 1
ARMATURE
€ 138.50
2
3113231300
ref: 2
HOLDER SET,BRUSH(-)
3113231300
€ 55.50
3
3113031300
ref: 3
TERMINAL SET,BRUSH,PLUS
3113031300
€ 36.00
4
3114349040
ref: 4
O RING
3114349040
€ 3.00
5
3117031300
ref: 5
SHIM SET,STARTING MOTOR
3117031300
€ 10.50
6
3113531300
ref: 6
SPRING,BRUSH
3113531300
€ 4.00
7
3115031300
ref: 7
BRACKET SET,STARTING MOTOR
€ 86.50
8
3128031300
ref: 8
BOLT SET,STARTING MOTOR
€ 0.00
9
3114349040
ref: 9
O RING
3114349040
€ 3.00
10
3126431300
ref: 10
O RING
3126431300
€ 7.50
11
0912806024
ref: 11
SCREW (6X25)
0912806024
€ 2.50
12
0928024001
ref: 12
O RING(D:2,ID:24.5)
0928024001
€ 2.00
13
0831022068
ref: 13
NUT 6MM
€ 2.50
14
0832121068
ref: 14
LOCK WASHER
0832121068
€ 2.50
