ELECTRICAL

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

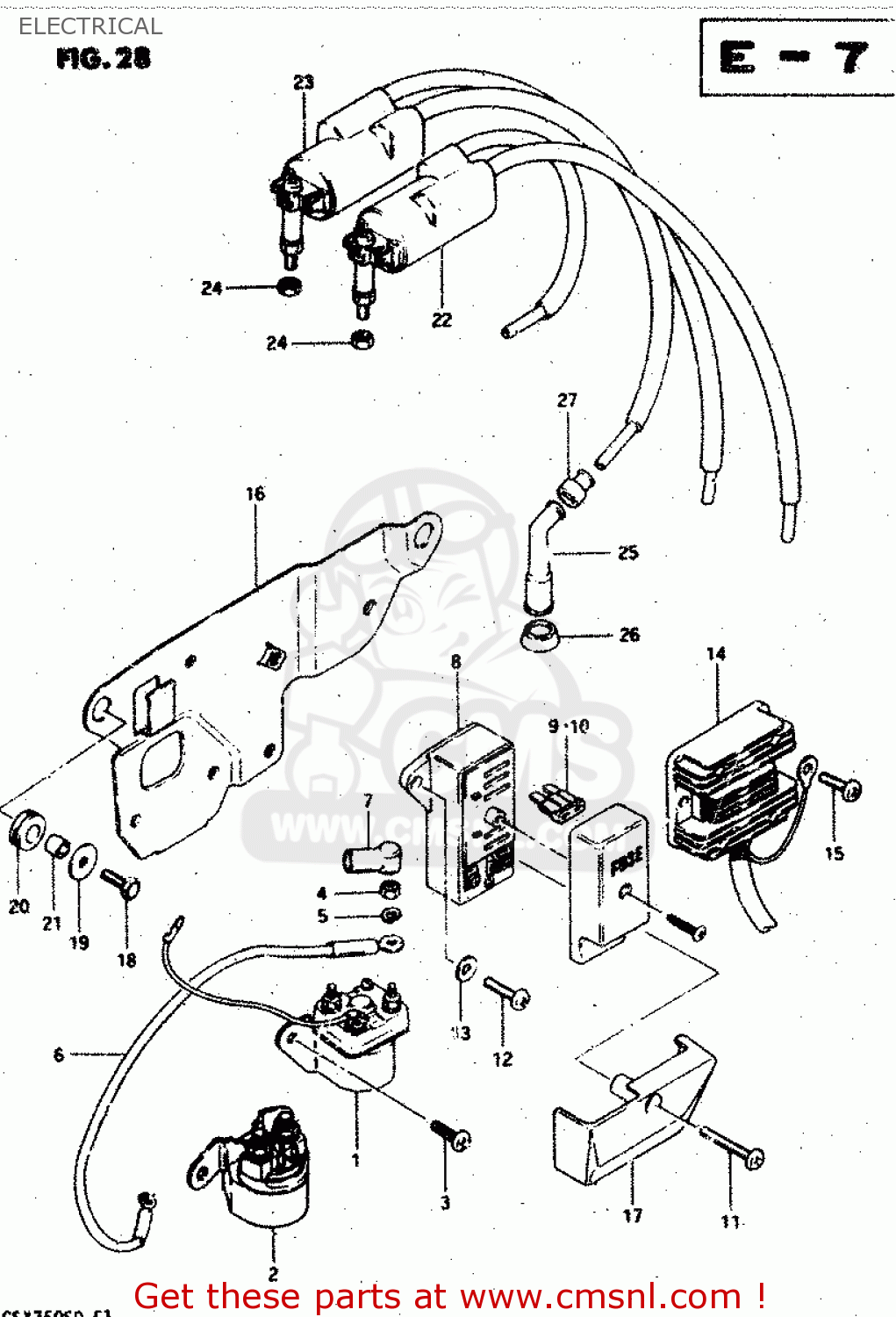

Electrical diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

ELECTRICAL GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
ELECTRICAL GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
ELECTRICAL GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1
3180049320
ref: 1
MODEL Z
RELAY, STARTING MOTOR
€ 105.00
2
3180033400
ref: 2
MODEL D
RELAY ASSEMBLY,STARTING MOTOR
€ 89.00
3-1
0211206108
ref: 3-1
MODEL Z
SCREW
0211206108
€ 1.50
3-2
0211206088
ref: 3-2
MODEL D
SCREW
€ 2.00
4
0831022068
ref: 4
NUT 6MM
€ 2.50
5
0832121068
ref: 5
LOCK WASHER
0832121068
€ 2.50
6-1
3385044110
ref: 6-1
MODEL Z
CORD,BATTERY MINUS
€ 8.50
6-2
3385049002
ref: 6-2
MODEL D
WIRE,STARTER MOTOR LEAD
€ 8.50
7
3186135100
ref: 7
CAP,STARTER RELAY
3186135100
€ 4.50
8
3674049300
ref: 8
BOX ASSEMBLY,FUSE
€ 69.50
9
0948110101
ref: 9
FUSE(10A)
0948110101
€ 2.50
10
0948115101
ref: 10
FUSE(15A)
0948115101
€ 1.50
11
0211206355
ref: 11
SCREW
€ 2.50
12
0211206168
ref: 12
SCREW
0211206168
€ 2.50
13
0832221068
ref: 13
WASHER
0832221068
€ 2.00
14-1
3280045250
ref: 14-1
MODEL Z
RECTIFIER, REGULATOR
€ 397.00
14-2
3280049320
ref: 14-2
MODEL D
RECTIFIER ASSEMBLY
€ 397.00
15
0211206128
ref: 15
SCREW 6X12
0211206128
€ 2.00
16-1
4741049310
ref: 16-1
HOLDER COMP,ELECTRONIC PARTS
4741049310
€ 10.00
16-2
4741049301
ref: 16-2
E22
PLATE, PARTS HOLDER
€ 0.00
17
4741949301
ref: 17
COVER,ELECTRIC PARTS HOLDER
4741949301
€ 5.50
18
0110706168
ref: 18
BOLT, UPPER
€ 3.00
19
0916006063
ref: 19
WASHER (6.5X22X1.6)
0916006063
€ 2.00
20
0932008013
ref: 20
CUSHION
0932008013
€ 4.00
21
0918007005
ref: 21
SPACER (7X9X7)
0918007005
€ 2.50
22
3341049210
ref: 22
COIL ASSEMBLY,IGNITION
€ 182.00
23
3342049210
ref: 23
COIL ASSEMBLY,IGNITION
3342049210
€ 182.00
24
0831011068
ref: 24
NUT
0831011068
€ 2.50
25
3351045010
ref: 25
CAP ASSY,SPARK PLUG
3351045010
€ 23.00
26
3354138210
ref: 26
FROM 33541-32410
SEAL,SPARK PLUG
€ 7.00
27
3354298000
ref: 27
SEAL,SPARK PLU
3354298000
€ 4.50
