MUFFLER

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

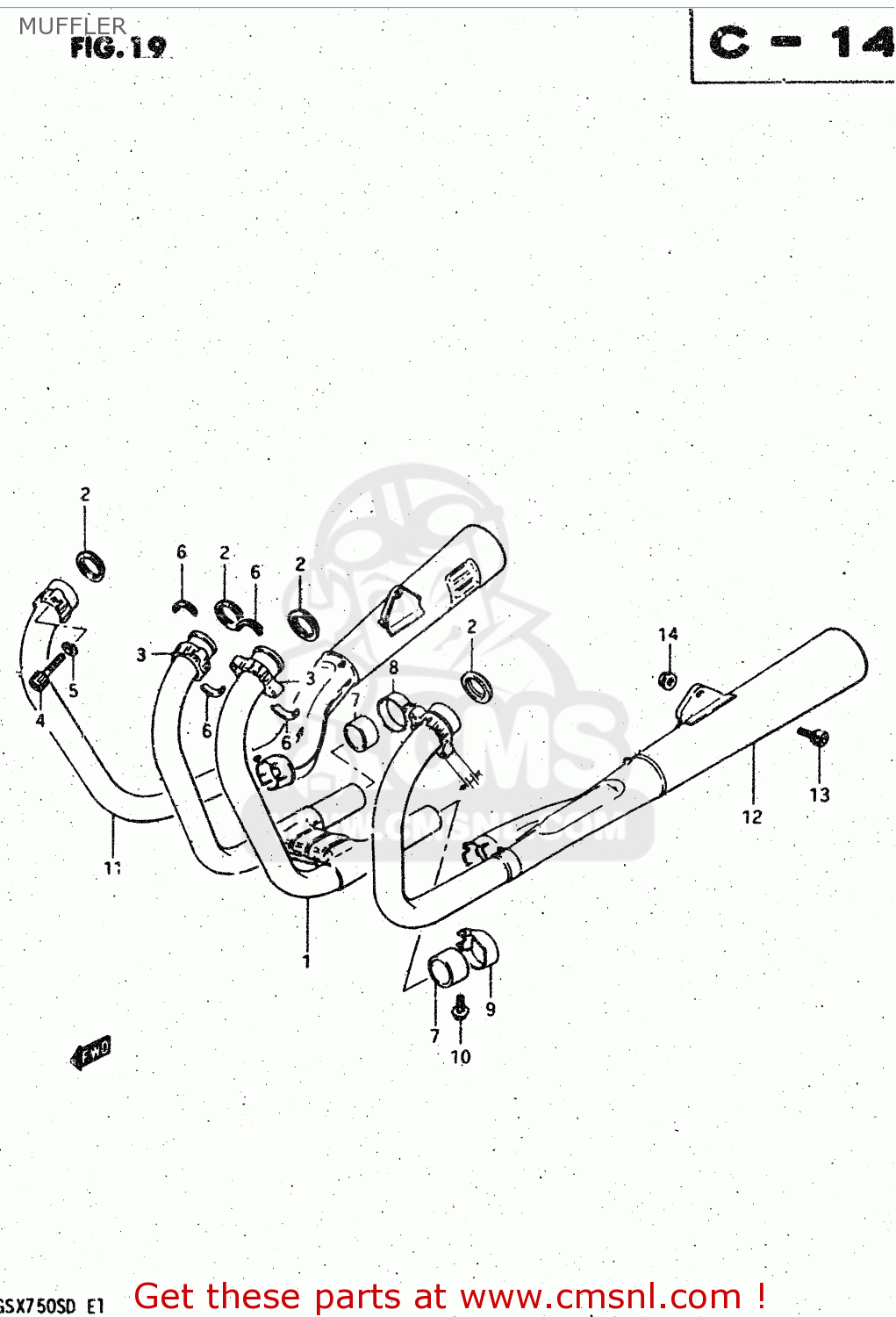

Muffler diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

MUFFLER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

MUFFLER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

prices are in EUR

ref

part #

description

quantity

1

1410045500
ref: 1

PIPE,EXHAUST

€ 205.50

2

1418111020
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 8.00

3-1

1418249010A
ref: 3-1

CLAMP,EXHAUST PIPE

€ 49.00

3-2

1418249011
ref: 3-2

CLAMP(H:21)

€ 49.00

4-1

0910608018
ref: 4-1

BOLT

€ 3.00

4-2

0910608021
ref: 4-2

BOLT

€ 3.50

5

0832121088
ref: 5

LOCK WASHER

€ 2.00

6

1415549000A
ref: 6

PLATE,EXHAUST P

€ 9.50

7

1477149001
ref: 7

CONNECTOR,MUFFLER

€ 26.00

8

1445945420
ref: 8

CLAMP,MUFFLER CONNECTOR,R

€ 12.00

9

1446945420
ref: 9

CLAMP,MUFFLER CONNECTOR,L

€ 14.50

10-1

0151708258
ref: 10-1
MODEL Z

BOLT

€ 2.50

10-2

0151708255
ref: 10-2
MODEL D

BOLT

€ 2.50

11-1

1430545500
ref: 11-1

MUFFLER, RH (H:26.5)

€ 451.00

11-2

1430545502
ref: 11-2

MUFFLER, RH (H:21)

€ 151.50

11-3

1430145510
ref: 11-3
E22

MUFFLER, RH (H:26.5)

€ 387.50

11-4

1430545512
ref: 11-4
E22

MUFFLER, RH (H:21)

€ 197.00

12-1

1430645500
ref: 12-1

MUFFLER, LH (H:26.5)

€ 411.50

12-2

1430645502
ref: 12-2

MUFFLER, LH (H:21)

€ 279.00

12-3

1430245510
ref: 12-3
E22

MUFFLER, LH (H:26.5)

€ 0.00

12-4

1430645512
ref: 12-4
E22

MUFFLER, LH (H:21)

€ 151.50

13

0910610003
ref: 13

BOLT

€ 3.00

14-1

0831616108
ref: 14-1
MODEL Z

NUT

€ 2.00

14-2

0831626105
ref: 14-2
MODEL D

NUT

€ 3.50
