GEAR SHIFTING

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

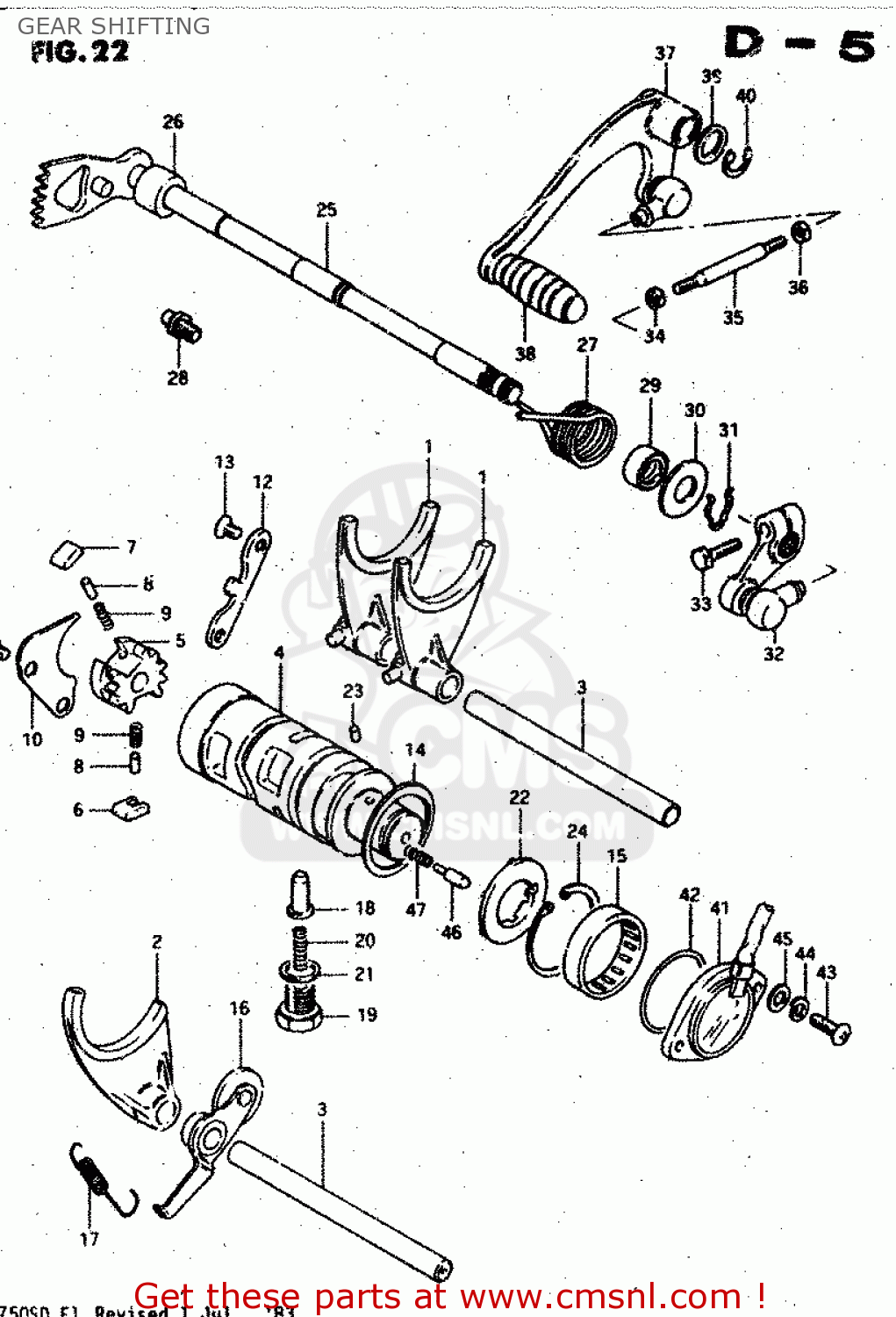

Gear shifting diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

GEAR SHIFTING GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
GEAR SHIFTING GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
GEAR SHIFTING GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1
2521134000
ref: 1
FORK,GEAR SHIFT NO.1
2521134000
€ 54.50
2
2523134000
ref: 2
FORK,GEAR SHIFT NO.3
2523134000
€ 72.50
3
2541149200
ref: 3
SHAFT,GEAR SHIFT FORK
€ 13.00
4
2531045400
ref: 4
CAM,GEAR SHIFT
2531045400
€ 82.00
5
2532234200
ref: 5
FROM 25322-11000
SHIFTER,GEAR SHIFT CAM
2532234200
€ 14.50
6
2532334200
ref: 6
FROM 25323-11000
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532434200
ref: 7
FROM 25324-11000
PAWL,GEAR SHIFT NO.2
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
0926105003
€ 1.50
9
0944004003
ref: 9
SPRING
0944004003
€ 1.50
10
2533149200
ref: 10
LIFTER,GEAR SHIFT PAWL
2533149200
€ 43.50
11
0212206128
ref: 11
SCREW
0212206128
€ 3.00
12
2534118000
ref: 12
GUIDE,GEAR SHIFT CAM
2534118000
€ 51.50
13
0212206128
ref: 13
SCREW
0212206128
€ 3.00
14
0916040001
ref: 14
WASHER(40X45X1)
0916040001
€ 2.50
15
0926325018
ref: 15
BEARING(25X32X12)
0926325018
€ 17.50
16
2535045400
ref: 16
STOPPER,GEAR SHIFTING
2535045400
€ 8.50
17
0944308019
ref: 17
SPRING
0944308019
€ 2.50
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
19
2535430000
ref: 19
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
20
0944006020
ref: 20
SPRING
0944006020
€ 14.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
22
2538145400
ref: 22
PLATE,GEAR SHIFT CAM STOPPER
2538145400
€ 10.50
23
0621104063
ref: 23
PIN 4X6
0621104063
€ 2.00
24
0833131258
ref: 24
CIRCLIP,25MM
€ 2.00
25
2551045400
ref: 25
SHAFT,GEAR SHIFT
2551045400
€ 88.00
26
0918012068
ref: 26
SPACER(12X20X15.3)
0918012068
€ 3.00
27
0944426017
ref: 27
SPRING
0944426017
€ 5.00
28
2567101000
ref: 28
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
29
0928512002
ref: 29
OIL SEAL
0928512002
€ 7.00
30
0916012020
ref: 30
WASHER (12.5X27X1.6)
0916012020
€ 2.00
31
0938412001
ref: 31
SPRING,RETAINER
0938412001
€ 2.00
32-1
2552047020
ref: 32-1
MODEL Z
ARM,GEAR SHIFT LINK
2552047020
€ 53.50
32-2
2552049310
ref: 32-2
MODEL D
ARM,GEAR SHIFT
€ 53.50
33
0110706258
ref: 33
BOLT
€ 2.00
34
0831011068
ref: 34
NUT
0831011068
€ 2.50
35
2552549300
ref: 35
ROD,GEAR SHIFT LINK
€ 12.00
36
0914006011
ref: 36
NUT
0914006011
€ 1.50
37-1
2560049301
ref: 37-1
MODEL Z, FROM 25600-
LEVER ASSY,GEA
2560049301
€ 86.00
37-2
2560049310
ref: 37-2
MODEL D
LEVER ASSEMBLY,GEAR SHIFTING
€ 86.00
38
2565249300
ref: 38
RUBBER,PEDAL
2565249300
€ 5.50
39
0816012011
ref: 39
WASHER
€ 0.00
40
0833131128
ref: 40
CIRCLIP
0833131128
€ 2.00
41
3772044600
ref: 41
TERMINAL BASE,NEUTRAL SWITCH
3772044600
€ 51.00
42
0928026003
ref: 42
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
43
0211205208
ref: 43
SCREW 5X20
0211205208
€ 3.00
44
0832121058
ref: 44
LOCK WASHER
0832121058
€ 2.00
45
0832221058
ref: 45
WASHER
€ 2.50
46
0920905011
ref: 46
PIN(5X15.5)
0920905011
€ 2.00
47
0944004010
ref: 47
SPRING
0944004010
€ 1.50
