REAR BRAKE HOSE

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

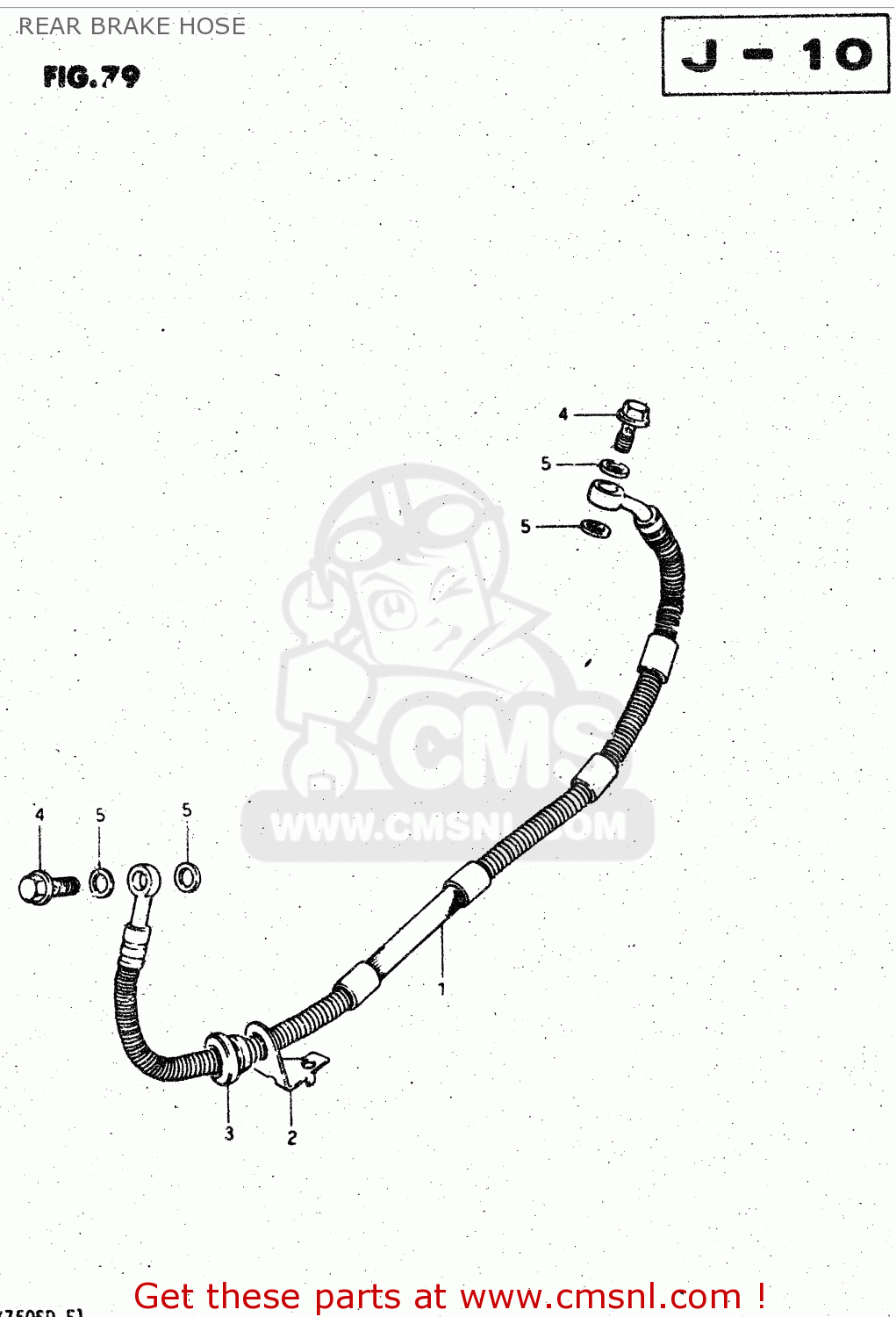

Rear brake hose diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

REAR BRAKE HOSE GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
REAR BRAKE HOSE GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
REAR BRAKE HOSE GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
6948049301
ref: 1-1
MODEL Z
HOSE, REAR BRAKE
€ 94.00
1-2
6948049302
ref: 1-2
MODEL D
HOSE,REAR BRAKE
6948049302
€ 94.00
2
6924347000
ref: 2
GUIDE,BRAKE HOSE
6924347000
€ 5.50
3
5924436200
ref: 3
GROMMET,BRAKE HOSE GUIDE
5924436200
€ 4.00
4-1
0936010007
ref: 4-1
MODEL Z
BOLT,UNION
0936010007
€ 6.50
4-2
0936010009
ref: 4-2
MODEL D
BOLT UNION
€ 6.50
5
0916110005
ref: 5
WASHER
0916110005
€ 2.00
