FRAME (MODEL D)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

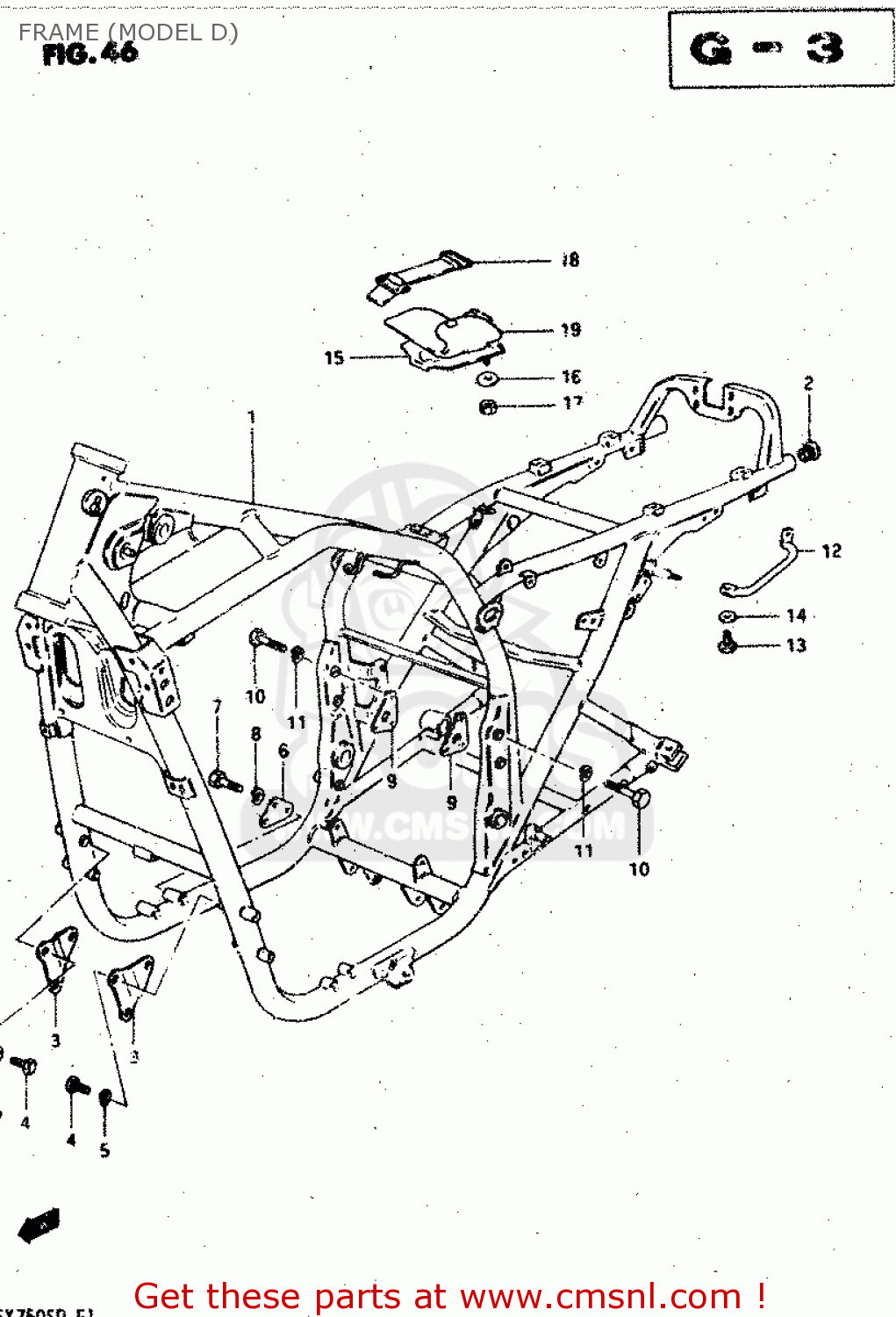

Frame (model d) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

FRAME (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
FRAME (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
FRAME (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
1-1
411004550313L
ref: 1-1
FRAME
€ 0.00
1-2
411004553313L
ref: 1-2
E18
FRAME (SILVER)
€ 0.00
1-3
411004552313L
ref: 1-3
E22,E25
FRAME (SILVER)
€ 0.00
2
0925022002
ref: 2
CAP(OD:26)
0925022002
€ 2.00
3
419114595013L
ref: 3
PLATE,ENG MTG NO.1
419114595013L
€ 12.50
4
0910408021
ref: 4
BOLT(8X65)
0910408021
€ 7.00
5
0832121088
ref: 5
LOCK WASHER
0832121088
€ 2.00
6
419214900013L
ref: 6
PLATE,ENG MTG NO.2
419214900013L
€ 30.00
7
0910408019
ref: 7
BOLT 8X16
0910408019
€ 2.00
8
0832121088
ref: 8
LOCK WASHER
0832121088
€ 2.00
9
419404900013L
ref: 9
PLATE,ENG MTG NO.4
419404900013L
€ 60.00
10
0110708168
ref: 10
BOLT
€ 2.00
11
0832121088
ref: 11
LOCK WASHER
0832121088
€ 2.00
12
4161049301
ref: 12
GRIP,STAND
4161049301
€ 26.50
13
0110708168
ref: 13
BOLT
€ 2.00
14
0832211088
ref: 14
WASHER
0832211088
€ 2.00
15
4155049200
ref: 15
HOLDER,TOOL
€ 10.00
16
0916006021
ref: 16
WASHER(6.5X30X1.6)
0916006021
€ 3.00
17
0831011068
ref: 17
NUT
0831011068
€ 2.50
18
0946200072
ref: 18
BAND
0946200072
€ 3.50
19
0980000239
ref: 19
TOOL SET
€ 50.00
