SEAT (MODEL D)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

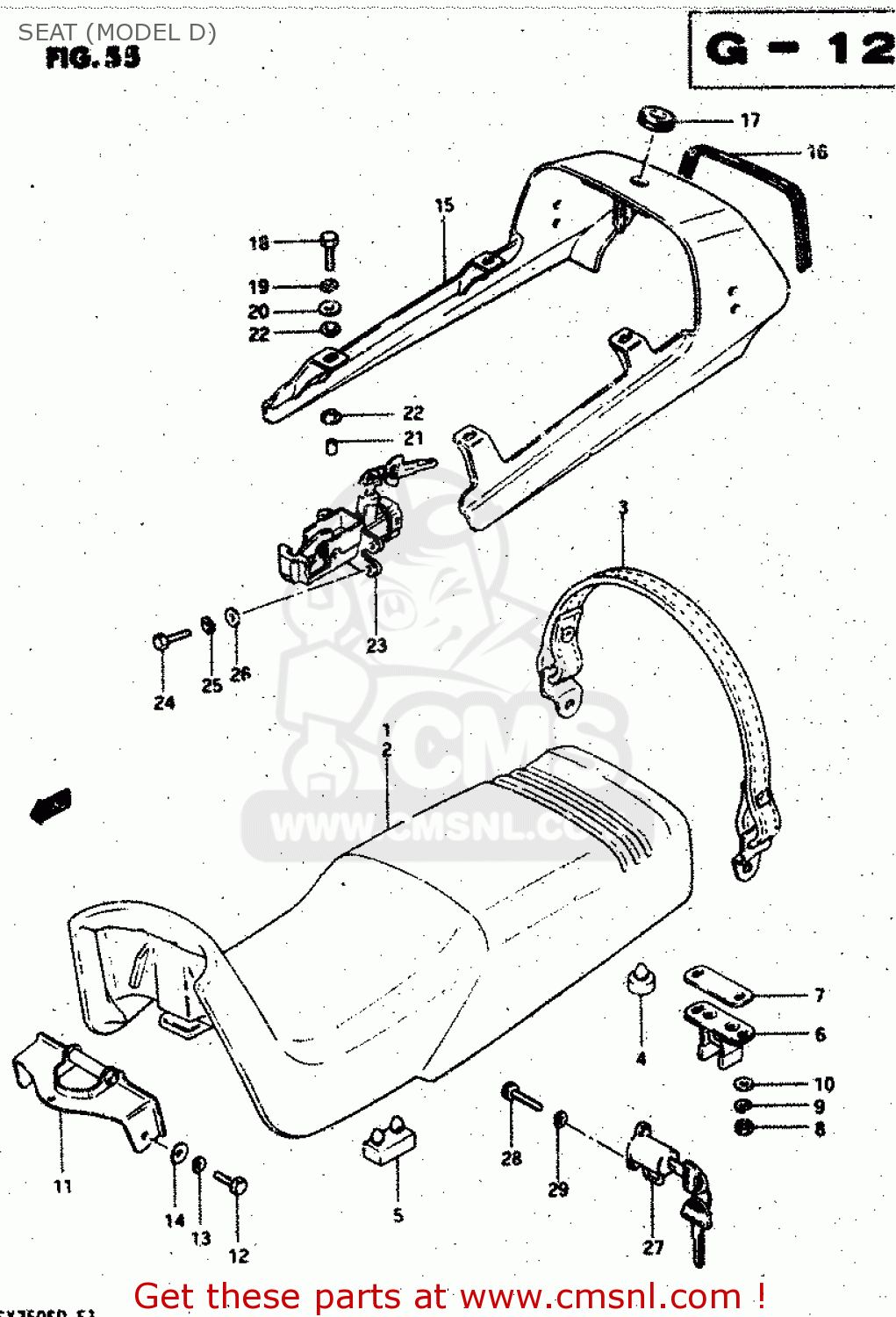

Seat (model d) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

SEAT (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

SEAT (MODEL D) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

prices are in EUR

ref

part #

description

quantity

1

451004930086Y
ref: 1

SEAT ASSY

€ 523.00

2

451004930586Y
ref: 2
E4,E21,E22,E24,E34,E

SEAT ASSY

€ 523.00

3

451004930649V
ref: 3
E4,E21,E22,E24,E34,E

BAND, SEAT GRIP (GRAY)

€ 0.00

4

0932108009
ref: 4

CUSHION

€ 4.00

5

0932910001
ref: 5

CUSHION

€ 2.50

6

4521044101
ref: 6

STRIKER,SEAT LOCK

€ 32.50

7

4521744100
ref: 7

SHIM,SEAT LOCK STRIKER

€ 4.50

8

0831022068
ref: 8

NUT 6MM

€ 2.50

9

0832121068
ref: 9

LOCK WASHER

€ 2.50

10

0832221068
ref: 10

WASHER

€ 2.00

11

4521049301
ref: 11

PLATE,SEAT HOOK FR

€ 17.50

12

0110706128
ref: 12

BOLT

€ 2.00

13

0832121068
ref: 13

LOCK WASHER

€ 2.50

14

0832221068
ref: 14

WASHER

€ 2.00

15

4551149300291
ref: 15

COVER,SEAT TAIL

€ 124.50

16

4556249301
ref: 16

MOLE,SEAT TAIL COVER

€ 5.50

17

4552249200
ref: 17

GROMMET,SEAT LOCK HOLE

€ 5.50

18

0110706258
ref: 18

BOLT

€ 2.00

19

0832121068
ref: 19

LOCK WASHER

€ 2.50

20

0916006004
ref: 20

WASHER (6.5X24X1.6)

€ 1.50

21

0918007013
ref: 21

SPACER (7X10X12)

€ 2.50

22

0932010003
ref: 22

CUSHION

€ 2.50

23

9570049300KEY
ref: 23

LOCK SET

€ 78.00

24

0110705128
ref: 24

BOLT

€ 2.00

25

0832121058
ref: 25

LOCK WASHER

€ 2.00

26

0832221058
ref: 26

WASHER

€ 2.50

27

9570035821
ref: 27

LOCK ASSEMBLY,HELMET

€ 57.50

28

0910606005
ref: 28

BOLT

€ 3.00

29

0832121068
ref: 29

LOCK WASHER

€ 2.50
