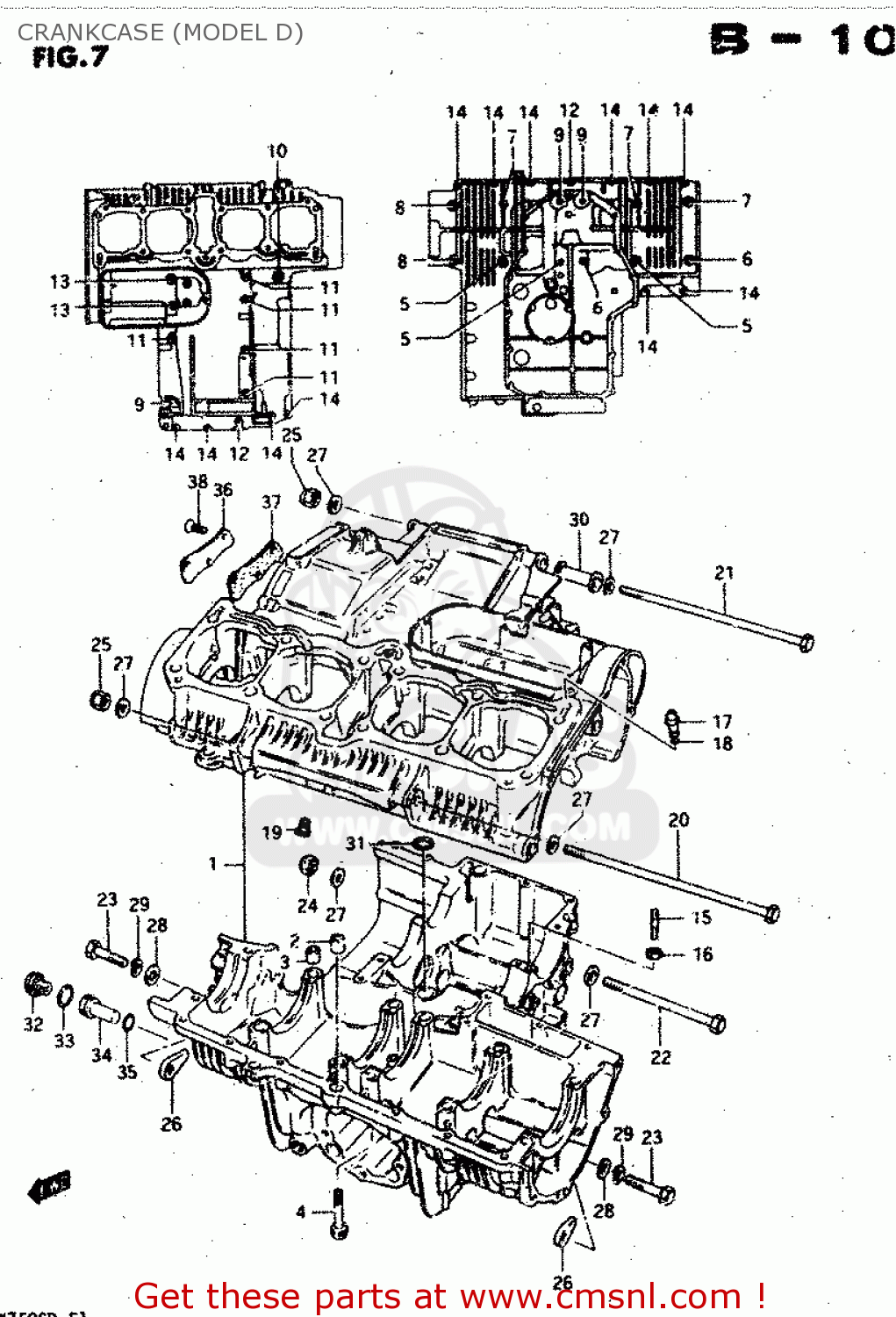

CRANKCASE (MODEL D)

ref

part #

description

quantity

1

1130045841
ref: 1

CRANKCASE SET

€ 932.50

2

0920613004
ref: 2

PIN(10.4X13X22)

€ 3.00

3

0920611005
ref: 3

PIN (11X20)(SUS)

€ 6.50

4

0910608015
ref: 4

BOLT

€ 4.50

5

0910308040
ref: 5

BOLT(8X140)

€ 4.00

6

0910308024
ref: 6

BOLT

€ 3.00

7

0151708955
ref: 7

BOLT (8X95)

€ 3.50

8

0151708705
ref: 8

BOLT (8X70)

€ 2.50

9

0151708658
ref: 9

BOLT 8X65

€ 3.00

10

0151706955
ref: 10

BOLT (5X95)

€ 3.00

11

0151706805
ref: 11

BOLT

€ 2.50

12

0151706605
ref: 12

BOLT ,6X60

€ 2.50

13

0151706458
ref: 13

BOLT,UNDER

€ 2.50

14

0151706405
ref: 14

BOLT (6X40)

€ 2.00

15

0142106358
ref: 15

STUD BOLT

€ 2.00

16

0915906017
ref: 16

NUT

€ 2.50

17

0949324008
ref: 17

JET

€ 16.00

18

0928003003
ref: 18

O RING(D:1.05,ID:3.1)

€ 2.50

19

0949324005
ref: 19

JET,AIR

€ 13.00

20

0910410014
ref: 20

BOLT(10X225)

€ 9.00

21

0910410013
ref: 21

BOLT(10X250)

€ 11.00

22

0910010078
ref: 22

BOLT(10X165)

€ 10.50

23

0910410015
ref: 23

BOLT 10X60

€ 3.00

24

0915910028
ref: 24

NUT (10MM)

€ 2.50

25

0915910037
ref: 25

NUT

€ 8.50

26

0915910020
ref: 26

NUT

€ 7.50

27

0832211108
ref: 27

WASHER

€ 2.50

28

0916010063
ref: 28

WASHER (10.5X20X3.2)

€ 2.00

29

0832131108
ref: 29

LOCK WASHER

€ 2.00

30

1161049300
ref: 30

SPACER

€ 14.50

31

0928013001
ref: 31

O RING(D:3.2,ID:12.9)

€ 4.00

32

0924718001
ref: 32

PLUG

€ 8.00

33

0928018004
ref: 33

O RING(D:2.4,ID:17.8)

€ 5.50

34

1132945400
ref: 34

PIN,OIL GALLERY

€ 2.50

35

0928010005
ref: 35

SEAL (D:1.9 ID:9.8)

€ 3.50

36

1139445000
ref: 36

CAP,OIL GALLERY

€ 6.50

37

1149745000
ref: 37

GASKET,OIL GALLERY (MCA)

€ 13.00

38

0212206168
ref: 38

SCREW

€ 2.00
