FRONT CALIPERS

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

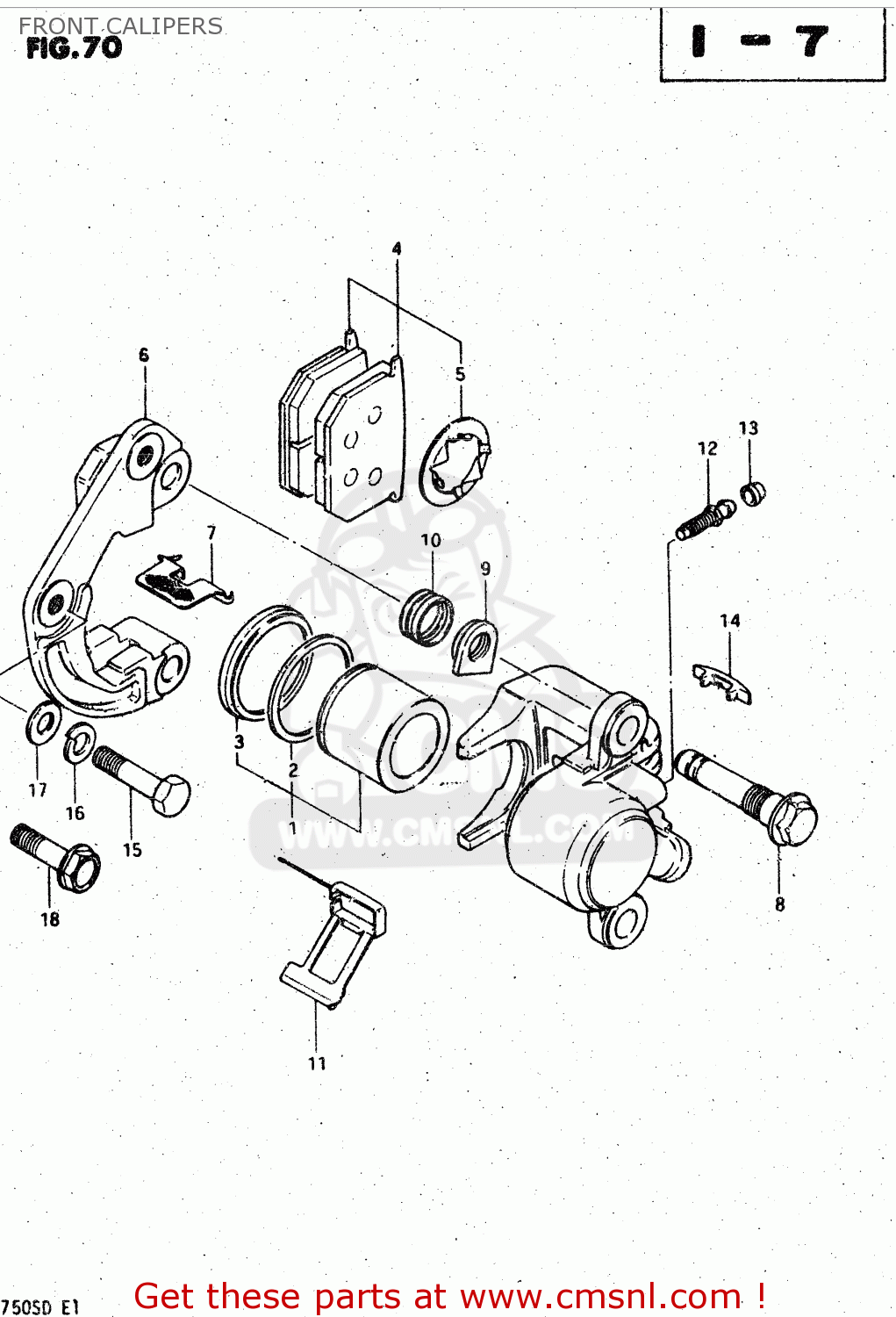

Front calipers diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

FRONT CALIPERS GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
FRONT CALIPERS GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
FRONT CALIPERS GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)
prices are in EUR
ref
part #
description
quantity
0
5910049002
ref: 0
MODEL Z
CARIPER ASSEMBLY,RIGHT
€ 187.50
0
5930049002
ref: 0
MODEL Z
CALIPER ASSEMBLY,LEFT
€ 290.00
0
5910049003
ref: 0
MODEL D
CARIPER ASSEMBLY,RIGHT
€ 187.50
0
5930049003
ref: 0
MODEL D
CALIPER ASSEMBLY,LEFT
€ 290.00
1
5930049810
ref: 1
PISTON SET
5930049810
€ 52.50
2
5910734020
ref: 2
SEAL,PISTON
5910734020
€ 6.50
3
5930849000
ref: 3
BOOT,PISTON
5930849000
€ 9.00
4
5930049821
ref: 4
PAD & SHIM SET (MCA)
5930049821
€ 91.00
5
5937149000
ref: 5
SHIM,PAD
5937149000
€ 7.00
6-1
5915049001
ref: 6-1
HOLDER,CALIPER,RIGHT
5915049001
€ 96.00
6-2
5935049001
ref: 6-2
HOLDER,CALIPER,LEFT
5935049001
€ 83.50
7
5931649001
ref: 7
PAD,GUIDE
5931649001
€ 11.00
8-1
5930549000
ref: 8-1
MODEL Z
AXLE,CALIPER
5930549000
€ 42.00
8-2
5930549001
ref: 8-2
MODEL D
AXLE
5930549001
€ 42.00
9
5931749000
ref: 9
NUT,CALIPER AXLE
5931749000
€ 14.00
10
5931249000
ref: 10
BOOT
5931249000
€ 30.00
11
5931549000
ref: 11
SPRING
5931549000
€ 9.50
12
5912147050
ref: 12
BREATHER
5912147050
€ 11.50
13
5247460020
ref: 13
CAP,BLEEDER PL
5247460020
€ 6.00
14
5932449000
ref: 14
COVER,INDICATOR
5932449000
€ 12.50
15
0910410012
ref: 15
MODEL Z
BOLT
0910410012
€ 3.50
16
0832121108
ref: 16
MODEL Z
LOCK WASHER
0832121108
€ 2.00
17
0832221108
ref: 17
MODEL Z
WASHER
0832221108
€ 2.50
18
0910310038
ref: 18
MODEL D
BOLT 10X37
0910310038
€ 3.00
