FRONT FENDER

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

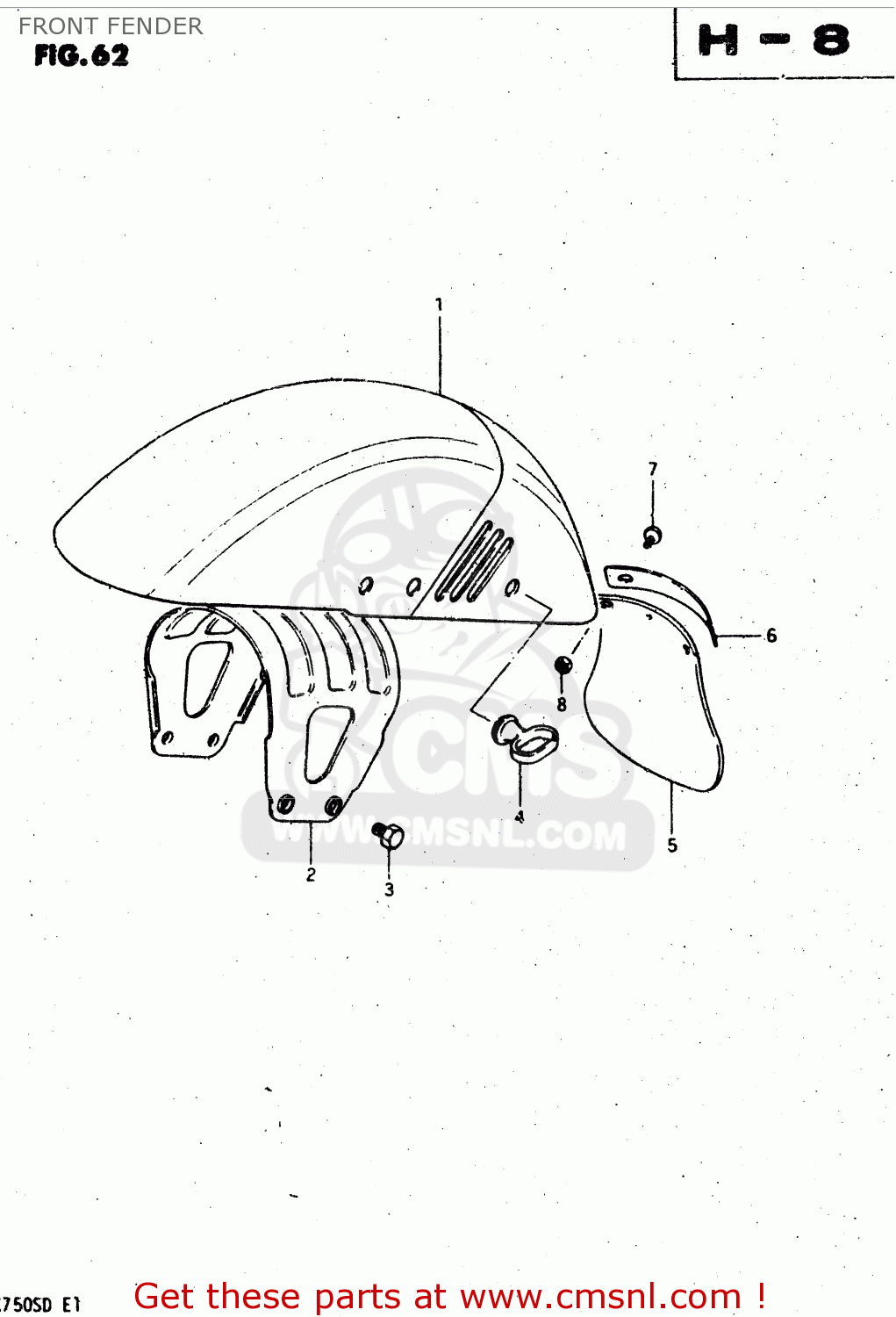

Front fender diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

FRONT FENDER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

FRONT FENDER GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

prices are in EUR

ref

part #

description

quantity

1-1

531114930113L
ref: 1-1
MODEL Z

FENDER, FRONT (SILVER)

€ 128.50

1-2

531114930111W
ref: 1-2
MODEL Z

FENDER, FRONT (RED)

€ 112.50

1-3

531114930180A
ref: 1-3
MODEL D

FENDER,FR

€ 106.50

1-4

531114931113L
ref: 1-4
MODEL Z:E15,E16,E17,

FENDER, FRONT (SILVER)

€ 128.50

1-5

531114931111W
ref: 1-5
MODEL Z:E15,E16,E17,

FENDER, FRONT (RED)

€ 0.00

1-6

531114931180A
ref: 1-6
MODEL D E24

FENDER, FRONT (SILVER/BLACK)

€ 106.50

2

5311449301
ref: 2

BRACE,FR FENDER CTR

€ 50.00

3

0910008135
ref: 3

BOLT 8X16

€ 3.00

4

5862121203A
ref: 4

GUIDE,CABLE

€ 7.50

5

5331125600
ref: 5
MODEL Z:E15,E16,E17,

FLAP,MUD

€ 9.00

6

5332149300
ref: 6
MODEL Z:E15,E16,E17,

PLATE

€ 0.00

7

0214205128
ref: 7
MODEL Z:E15,E16,E17,

SCREW

€ 1.50

8

0831626058
ref: 8
MODEL Z:E15,E16,E17,

NUT 5MM

€ 2.00
