HEADLAMP (E2)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

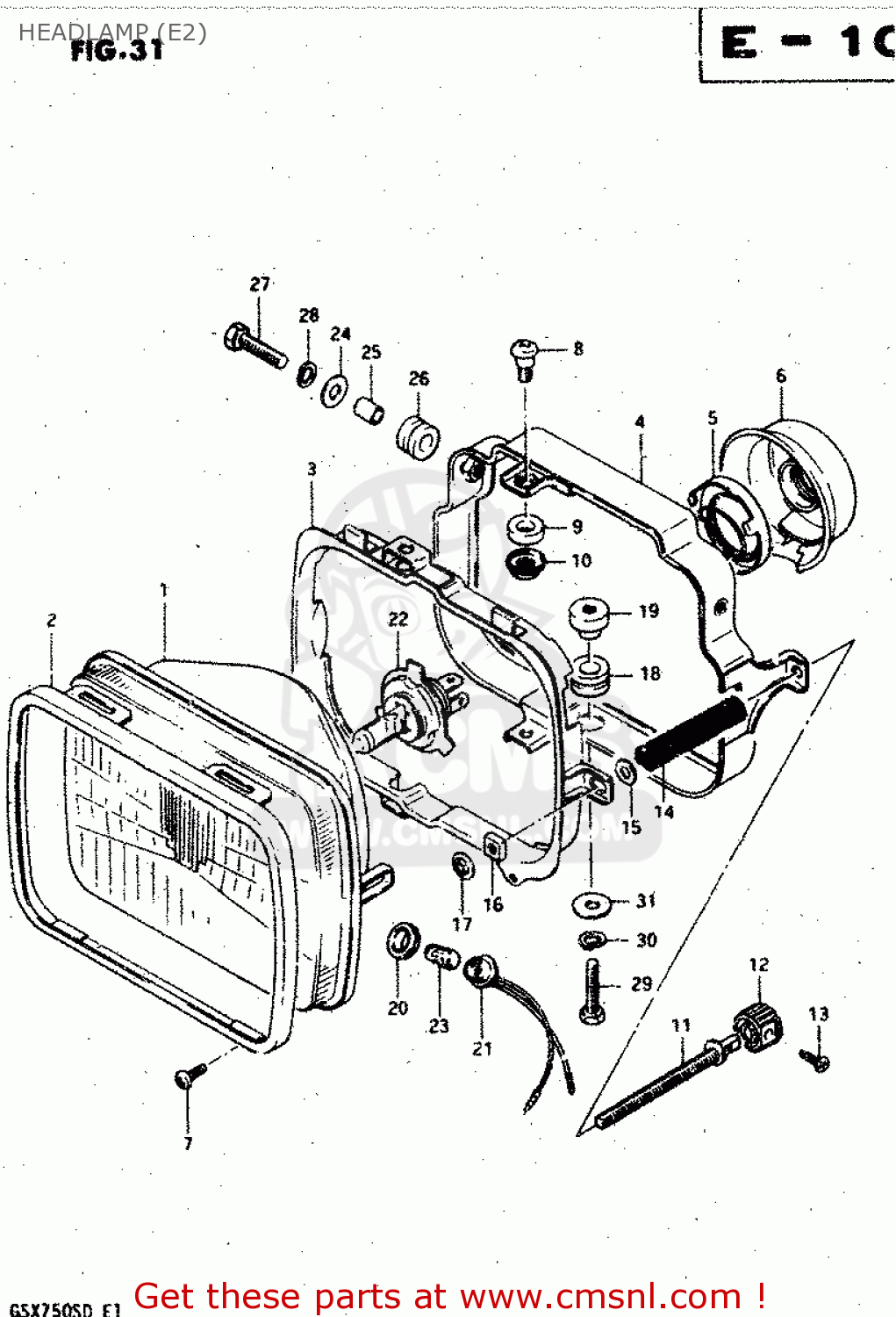

Headlamp (e2) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

HEADLAMP (E2) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

HEADLAMP (E2) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

prices are in EUR

ref

part #

description

quantity

0

3510049320999
ref: 0

HEADLAMP ASSY

€ 0.00

1

3512149220
ref: 1

UNIT

€ 175.00

2

3512749320
ref: 2

RETAINER

€ 37.50

3

3513049320
ref: 3

RING,MOUNTING

€ 30.00

4

3538149320
ref: 4

HOUSING

€ 42.50

5

3513649200
ref: 5
FROM 35136-49320

HOLDER

€ 8.50

6

3517349200
ref: 6

COVER,HEADLAMP SOCKET

€ 12.50

7

0211203088
ref: 7

SCREW

€ 1.50

8

3513625611
ref: 8

SCREW

€ 4.00

9

3513345600
ref: 9

SPACER

€ 3.50

10

3513525611
ref: 10

NUT,ADJUSTING

€ 2.50

11

3515149320
ref: 11

SCREW,ADJUSTING

€ 16.50

12

3516149320
ref: 12

KNOB,ADJUSTER

€ 6.00

13

0211203108
ref: 13

SCREW

€ 1.50

14

3515449320
ref: 14

SPRING

€ 3.00

15

3515749320
ref: 15

WASHER

€ 2.00

16

3515249320
ref: 16

NUT

€ 0.00

17

3515249330
ref: 17

NUT,HEADLAMP ADJUSTER

€ 2.00

18

3538249321
ref: 18

CUSHION

€ 0.00

19

3538349321
ref: 19

NUT

€ 0.00

20

3611622630
ref: 20

JOINT,RUBBER

€ 5.00

21

3611849320
ref: 21

SOCKET

€ 12.00

22

0947112060
ref: 22
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

23

0947112063
ref: 23
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

24

0916006007
ref: 24

WASHER

€ 2.00

25

0918006044
ref: 25

SPACER (6.1X8X9.5)

€ 2.50

26

0932008001
ref: 26

CUSHION

€ 3.50

27

0110706258
ref: 27

BOLT

€ 2.00

28

0832121068
ref: 28

LOCK WASHER

€ 2.50

29

0912806030
ref: 29

SCREW(6X20)

€ 0.00

30

0832121068
ref: 30

LOCK WASHER

€ 2.50

31

0832221068
ref: 31

WASHER

€ 2.00
