TURN SIGNAL LAMP (E15, E16, E18, E26, E39)

GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

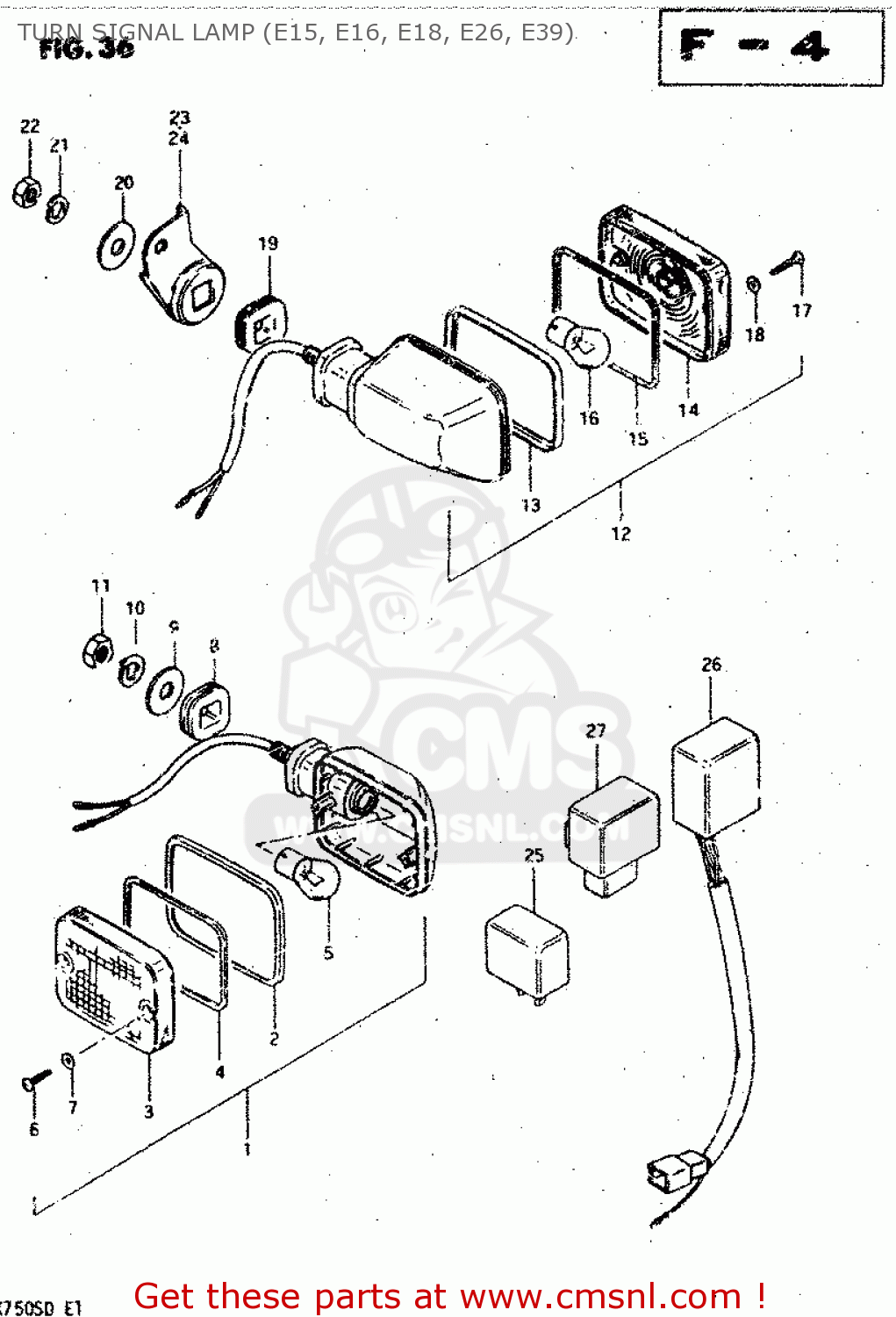

Turn signal lamp (e15, e16, e18, e26, e39) diagram GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

TURN SIGNAL LAMP (E15, E16, E18, E26, E39) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

TURN SIGNAL LAMP (E15, E16, E18, E26, E39) GSX750S 1983 (D) (E01 E02 E04 E06 E18 E21 E22 E24 E25 E30 34 39)

prices are in EUR

ref

part #

description

quantity

1

3560145521
ref: 1
FROM 35601-45520

LAMP ASSY,FR T

€ 70.00

2

3561149230
ref: 2

RIM

€ 11.00

3

3561249231
ref: 3

LENS

€ 13.00

4

3561349230
ref: 4

GASKET (NAS)

€ 5.00

5

0947112056
ref: 5

BULB 12V 21W

€ 5.00

6

0321104208
ref: 6

SCREW

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

0932015004
ref: 8

CUSHION

€ 5.00

9

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

10

0832121108
ref: 10

LOCK WASHER

€ 2.00

11

0831012108
ref: 11

NUT

€ 2.50

12

3560345581
ref: 12
FROM 35603-45580

LAMP ASSY,RR T

€ 68.50

13

3561149230
ref: 13

RIM

€ 11.00

14

3565244182
ref: 14

LENS

€ 13.00

15

3561349230
ref: 15

GASKET (NAS)

€ 5.00

16

0947112056
ref: 16

BULB 12V 21W

€ 5.00

17

0321104208
ref: 17

SCREW

€ 1.50

18

3562743010
ref: 18

GASKET (NAS)

€ 2.00

19

0932015002
ref: 19

CUSHION

€ 4.50

20

0916010006
ref: 20

WASHER (10.5X30X2.3)

€ 2.50

21

0832121108
ref: 21

LOCK WASHER

€ 2.00

22

0831012108
ref: 22

NUT

€ 2.50

23

3562049300
ref: 23

BRACKET,RR TURNSIGNAL LAMP,R

€ 39.50

24

3564049300
ref: 24

BRACKET,RR TURNSIGNAL LAMP,L

€ 25.00

25

3861049231
ref: 25

RELAY ASSY,TURNSIGNAL

€ 71.00

26

3883049200
ref: 26
MODEL Z,TO 38830-492

UNIT,TURN SIGNAL CONTROL

€ 269.50

27

3883049500
ref: 27
MODEL D

UNIT,TURN SIGNAL CONTROL

€ 269.50
