CAM CHAIN

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

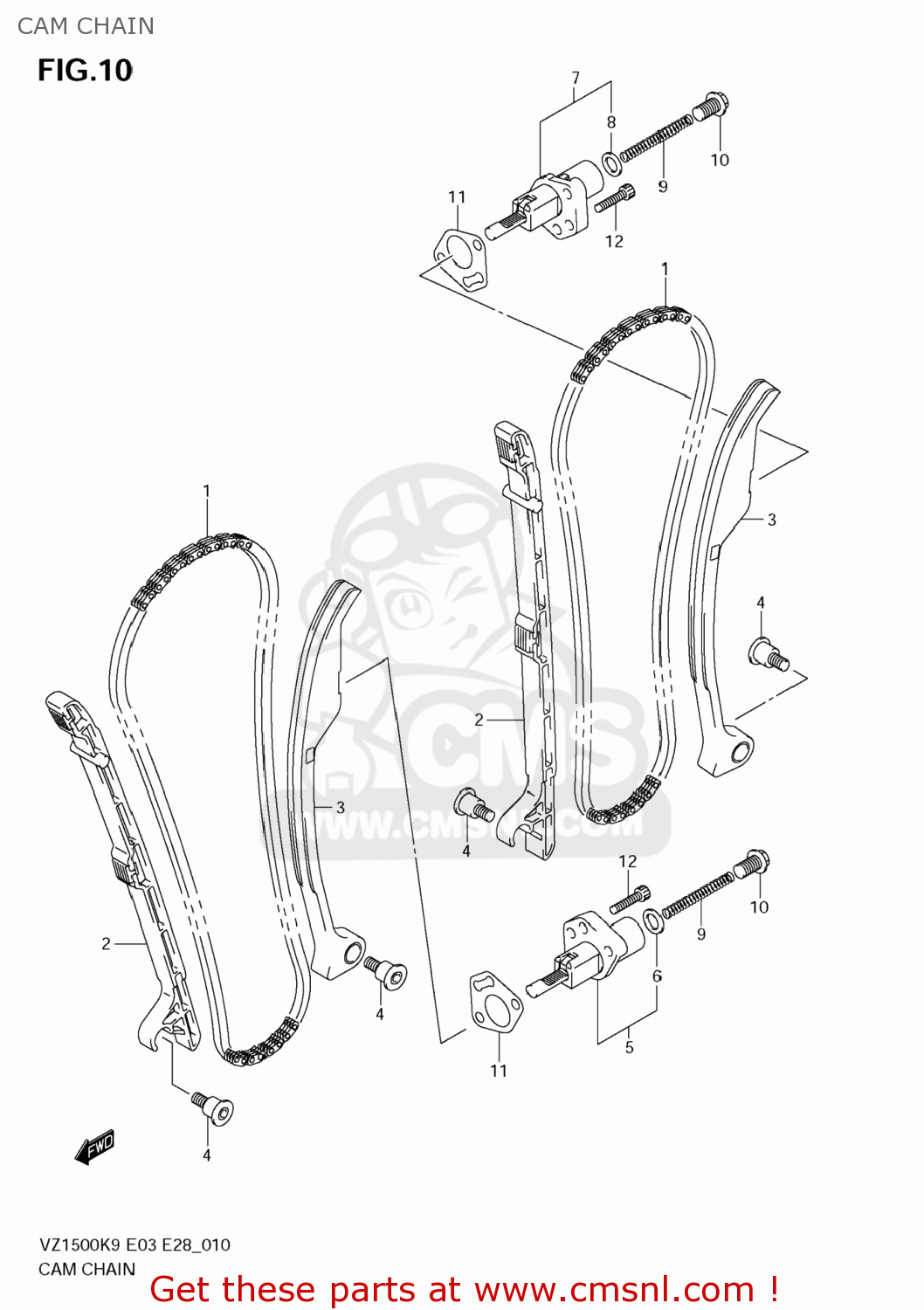

Cam chain diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1276040H00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 123.50

1277140H00
ref: 2

GUIDE,CAM CHAIN

€ 25.50

1281140H00
ref: 3

TENSIONER,CAM CHAIN

€ 62.00

1281231G00
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 4.00

1283040H00
ref: 5

ADJUSTER ASSY,TENSIONER FR

€ 79.00

1283724F10
ref: 6

GASKET,TENSIONER ADJUSTER (NAS)

€ 4.00

1283040H10
ref: 7

ADJUSTER ASSY,TENSIONER RR

€ 79.00

1283724F10
ref: 8

GASKET,TENSIONER ADJUSTER (NAS)

€ 4.00

1283141G00
ref: 9

SPRING

€ 3.50

1283317G00
ref: 10

PLUG,TENSIONER ADJUSTER

€ 3.50

1283727G00
ref: 11

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

071300625B
ref: 12

BOLT

€ 3.00

all assemblies
