FRONT BRAKE HOSE

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

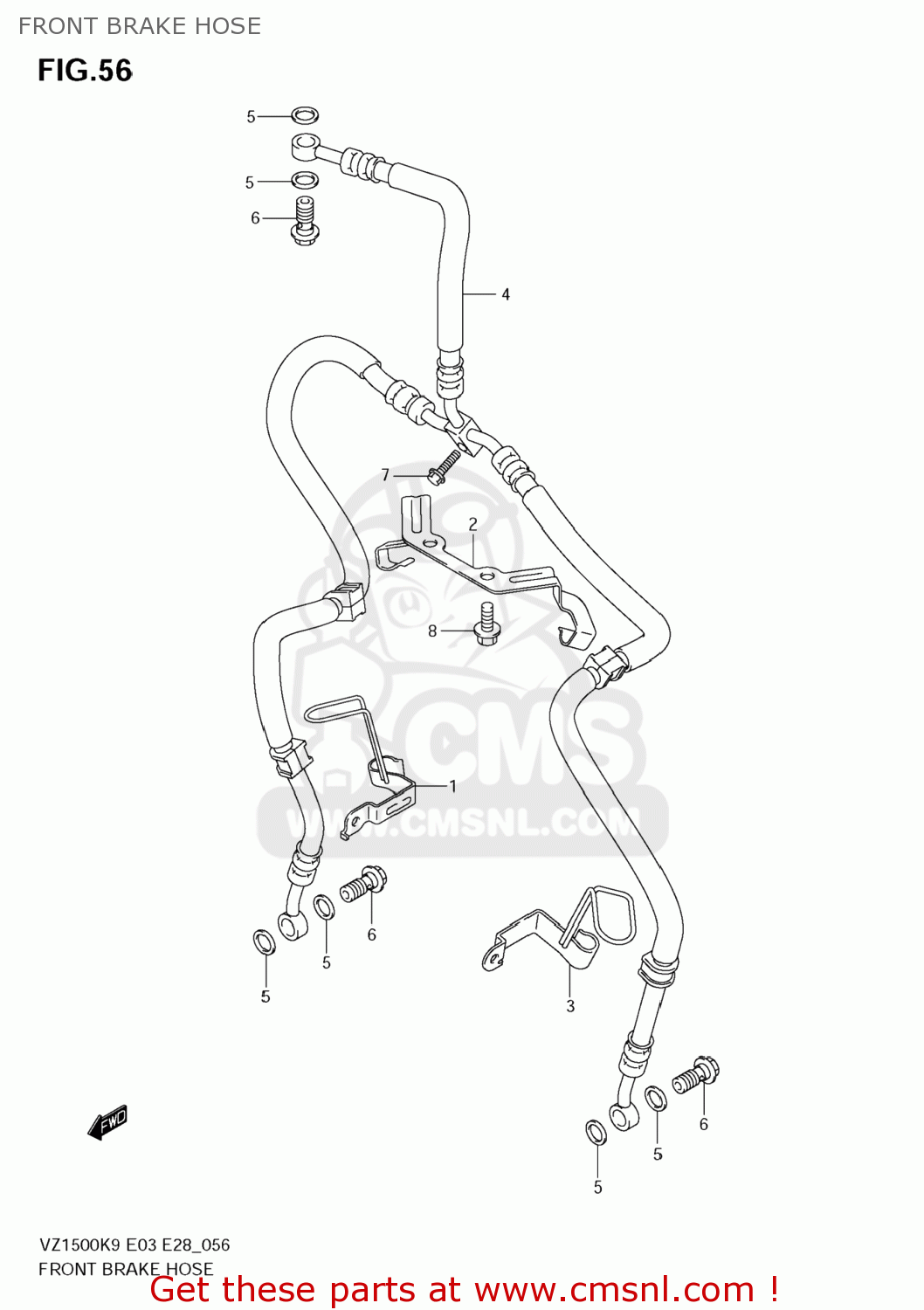

Front brake hose diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

FRONT BRAKE HOSE VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

FRONT BRAKE HOSE VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

5926040H00
ref: 1

CLAMP,FR BRAKE HOSE,R

€ 24.50

2

5926640H00
ref: 2

CLAMP,FR BRAKE HOSE

€ 14.50

3

5927040H00
ref: 3

CLAMP,FR BRAKE HOSE,L

€ 25.00

4

5948040H00
ref: 4

HOSE,FR BRAKE

€ 160.50

5

0916110009
ref: 5

WASHER(10X15X1.5)

€ 2.00

6

0936010062
ref: 6

BOLT UNION

€ 5.00

7

015470625A
ref: 7

BOLT

€ 2.50

8

071200816A
ref: 8

BOLT

€ 3.00
