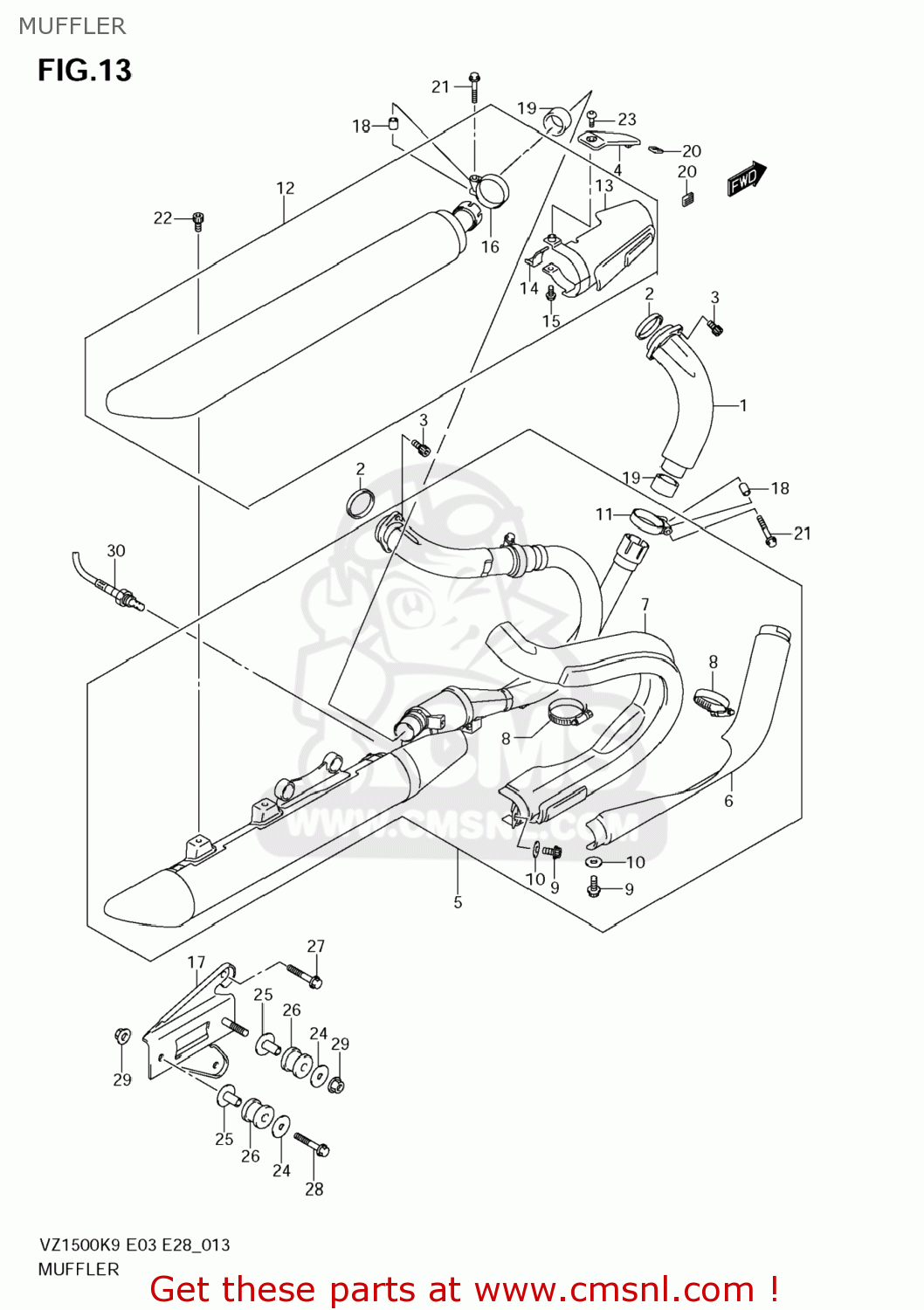

MUFFLER

ref

part #

description

quantity

1

1415040H00
ref: 1

PIPE,EXHAUST FR

€ 200.00

2

1418131D00
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 9.50

3

0910608165
ref: 3

BOLT(8X25)

€ 5.00

4

1426040H00
ref: 4

COVER,MUFFLER RR UP

€ 71.00

5-1

1430540H00H01
ref: 5-1

MUFFLER,FR

€ 1,438.50

5-2

1430540H20H01
ref: 5-2

MUFFLER,FR

€ 1,576.00

6

1417040H00
ref: 6

COVER,EXHAUST FR

€ 241.00

7

1418040H00
ref: 7

COVER,EXHAUST RR

€ 583.50

8

0940245503
ref: 8

CLAMP

€ 5.50

9

1445140H00
ref: 9

BOLT

€ 3.00

10

1417540H00
ref: 10

SPACER

€ 4.00

11

1445940H00
ref: 11

CLAMP,MUFFLER CONNECTOR

€ 22.00

12-1

1434040H00H01
ref: 12-1

BODY,MUFFLER RR

€ 752.50

12-2

1434040H20H01
ref: 12-2

BODY,MUFFLER RR

€ 911.00

13

1439840H00
ref: 13

COVER,MUFFLER

€ 301.00

14

1439940H00
ref: 14

CLAMP

€ 7.00

15

1445140H00
ref: 15

BOLT

€ 3.00

16

1445940H00
ref: 16

CLAMP,MUFFLER CONNECTOR

€ 22.00

17

1441040H00
ref: 17

BRACKET,MUFFLER SUPPORT

€ 51.00

18

1445845G10
ref: 18

SPACER,CLAMP

€ 4.00

19

1477140H00
ref: 19

CONNECTOR

€ 21.00

20

1479510FA0
ref: 20

GROMMET

€ 3.00

21

0910308365
ref: 21

BOLT(8X35)

€ 3.50

22

0910608107
ref: 22

BOLT(8X20)

€ 2.00

23

0913906172
ref: 23

SCREW(6X10)

€ 3.00

24

0916008140
ref: 24
09160-08146

WASHER (8.5X33X1.6)

€ 3.00

25

0918008156
ref: 25

SPACER(8.6X12X27.1)

€ 6.50

26

0932012063
ref: 26

CUSHION

€ 9.00

27

015500816A
ref: 27

BOLT

€ 2.50

28

015500845A
ref: 28

BOLT

€ 3.00

29

083612508A
ref: 29

NUT

€ 2.50

30

1821348G00
ref: 30

SENSOR,OXYGEN RR

€ 336.00

all assemblies
