REAR CALIPER

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

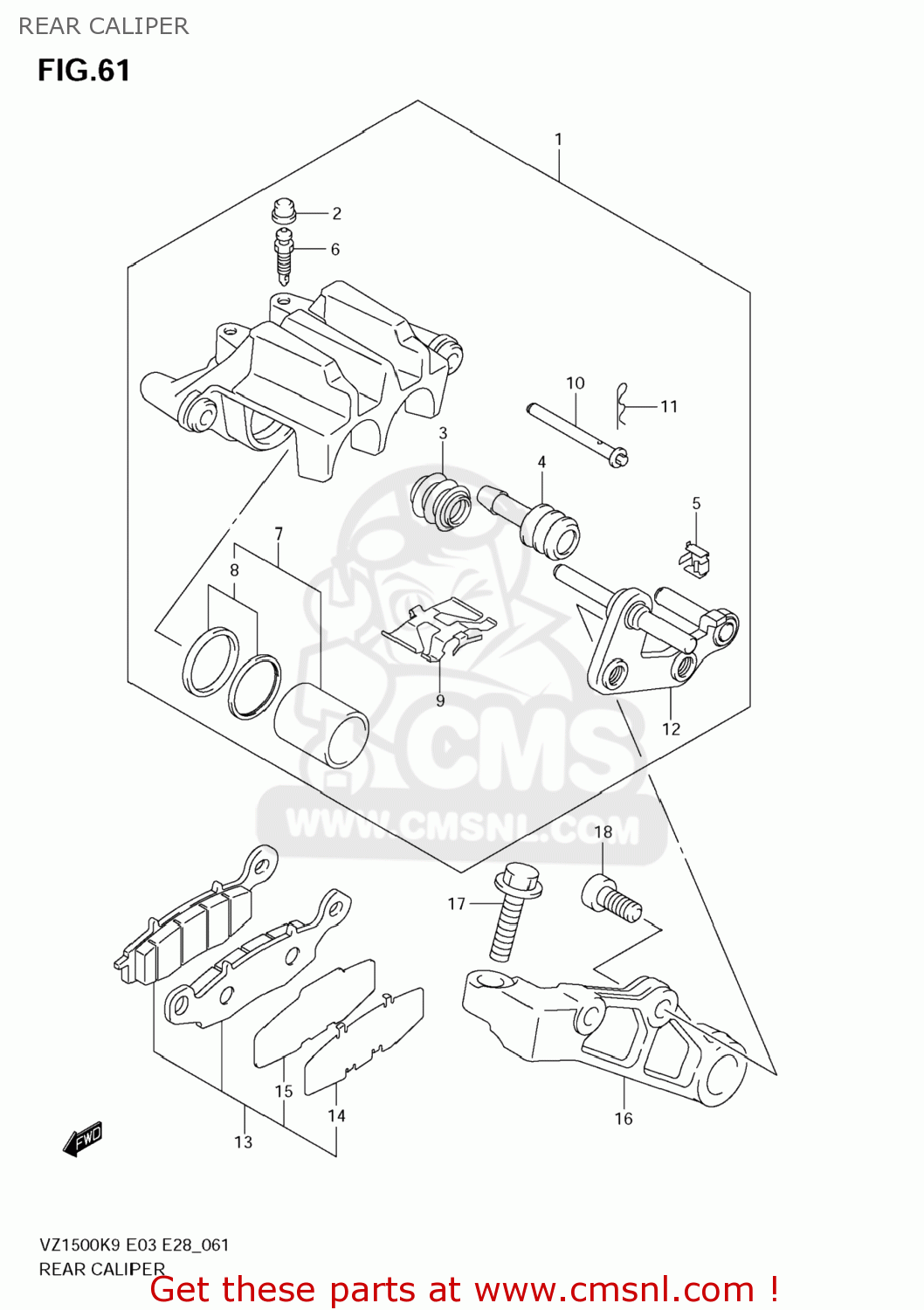

Rear caliper diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

6910001D40999
ref: 1

CALIPER ASSY,RR

€ 356.50

5515666310
ref: 2

CAP,BLEEDER PLUG

€ 6.00

5911244B00
ref: 3

BOOT,AXLE

€ 8.00

5911301D00
ref: 4

INSULATOR,AXLE

€ 7.00

5911633D00
ref: 5

GUIDE,PAD

€ 6.50

5912103B00
ref: 6

BLEEDER

€ 13.50

6910001840
ref: 7

PISTON SET

€ 96.00

5930033841
ref: 8

SEAL SET,PISTON

€ 26.50

6911501D40
ref: 9

SPRING,PAD

€ 11.50

6914101D40
ref: 10

PIN,PAD

€ 8.50

6914245000
ref: 11

CLIP,PAD PIN

€ 4.50

6915001D40
ref: 12

CARRIER,CALIPER

€ 98.50

6910001890
ref: 13

PAD & SHIM SET (NAS)

€ 64.50

5917233D00
ref: 14

SHIM,PAD NO.2

€ 10.50

6917201D40
ref: 15

INSULATOR NO.2

€ 16.50

6972148G20
ref: 16

BRACKET,RR CALIPER

€ 160.50

0910312109
ref: 17

BOLT(12X40)

€ 3.50

0910610062
ref: 18

BOLT(10X20)

€ 3.50
