SECOND AIR

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

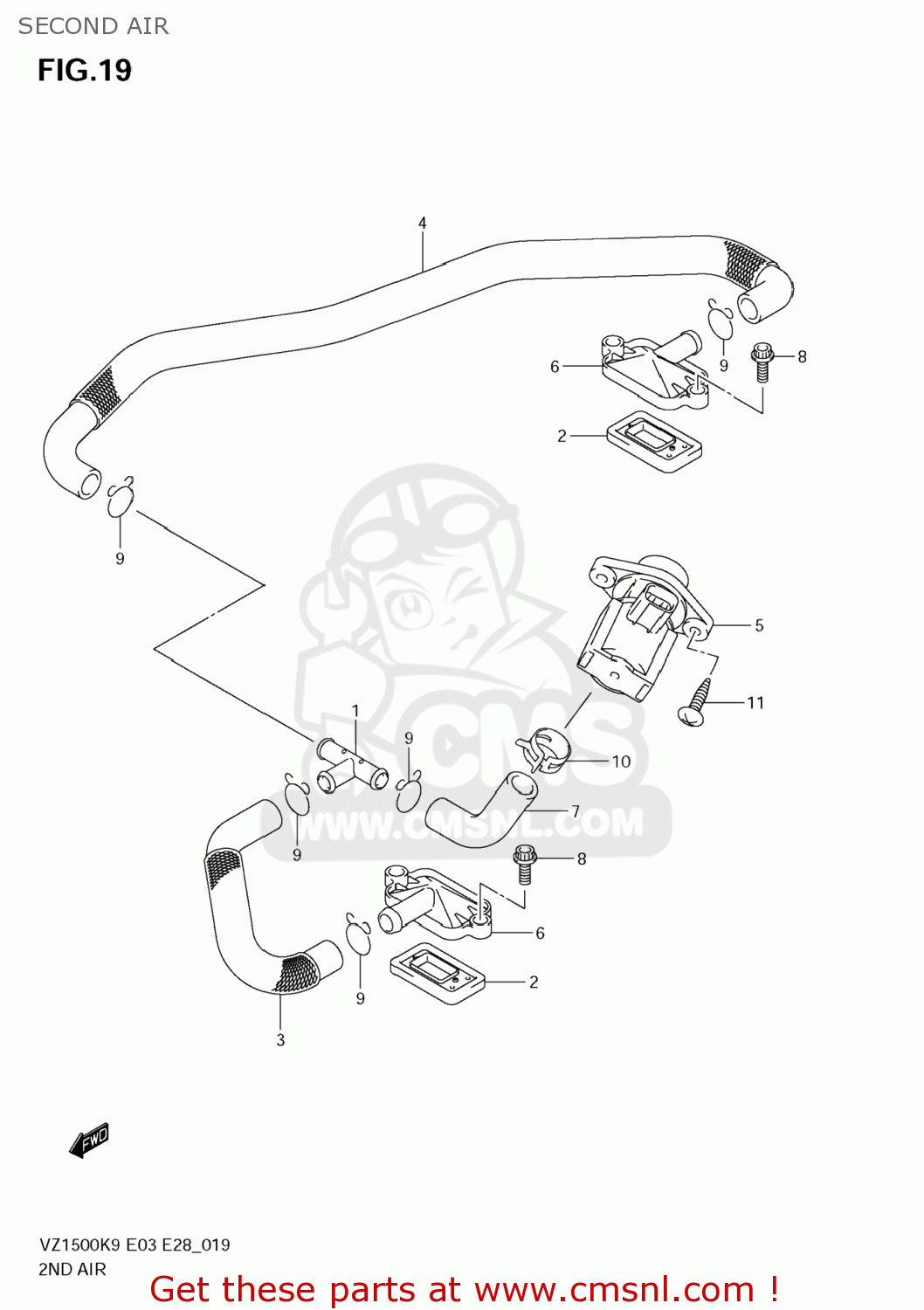

Second air diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1385518A03
ref: 1

JOINT

€ 4.00

1845006G00
ref: 2

VALVE ASSY,2ND AIR REED

€ 22.50

1846140H00
ref: 3

HOSE,2ND AIR VALVE FR

€ 18.50

1847140H00
ref: 4

HOSE,2ND AIR VALVE RR

€ 40.00

1851027G00
ref: 5

VALVE ASSY,AIR CUT

€ 61.00

1853149F00
ref: 6

COVER,2ND AIR REED VALVE

€ 12.50

1871140H00
ref: 7

HOSE,2ND AIR VALVE

€ 11.00

0910606105
ref: 8

BOLT(6X18)

€ 2.50

0940115101
ref: 9

CLIP

€ 2.00

0940117401
ref: 10

CLIP

€ 2.00

035410520A
ref: 11

SCREW

€ 2.50
