STARTING MOTOR

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

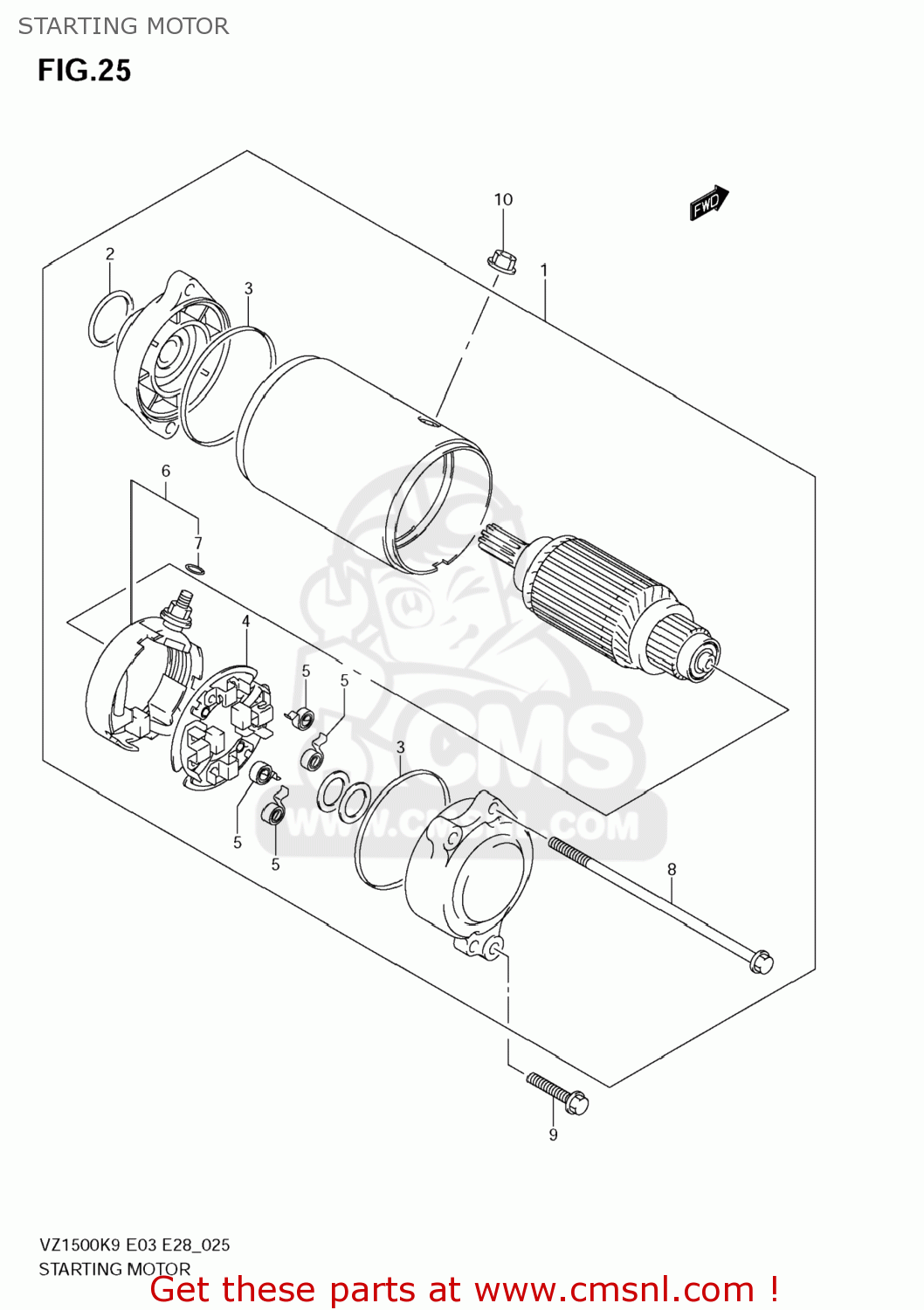

Starting motor diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

3110040H00
ref: 1

MOTOR ASSY,STARTING

€ 589.50

0928025002
ref: 2

O RING(D:3.1,ID:24.4)

€ 2.00

3126431300
ref: 3
31264-32E00

O RING

€ 7.50

3113238B00
ref: 4

HOLDER SET,BRUSH

€ 45.00

3113538B00
ref: 5

SPRING,BRUSH

€ 3.50

3113038B00
ref: 6

TERMINAL SET,BRUSH

€ 45.00

3114349040
ref: 7

O RING

€ 3.00

3128124B10
ref: 8

BOLT

€ 5.00

0910306212
ref: 9

BOLT(6X25)

€ 2.50

083613506A
ref: 10

NUT

€ 2.00
