HANDLE SWITCH

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

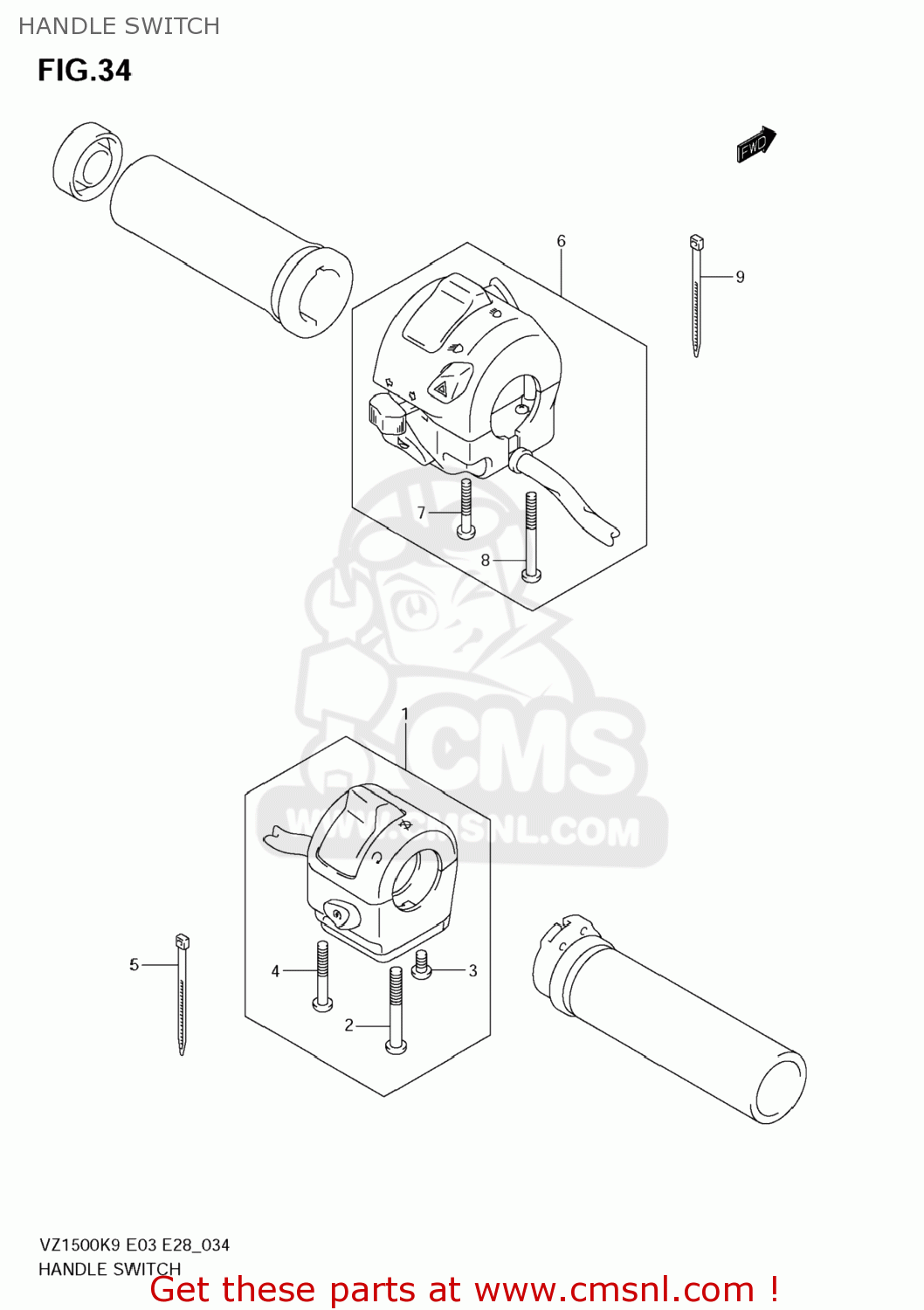

Handle switch diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

HANDLE SWITCH VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

HANDLE SWITCH VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

3720048GA0
ref: 1

SWITCH ASSY,HA

€ 170.00

2

021120545B
ref: 2

SCREW

€ 4.00

3

021120510B
ref: 3

SCREW

€ 2.00

4

021120535B
ref: 4

SCREW

€ 1.50

5

0940714407
ref: 5

CLAMP(L:145)

€ 4.00

6

3740048G60
ref: 6

SWITCH ASSY,HANDLE,L

€ 227.00

7

021120530B
ref: 7

SCREW

€ 1.50

8

021120545B
ref: 8

SCREW

€ 4.00

9

0940714407
ref: 9

CLAMP(L:145)

€ 4.00
