TURN SIGNAL LAMP

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

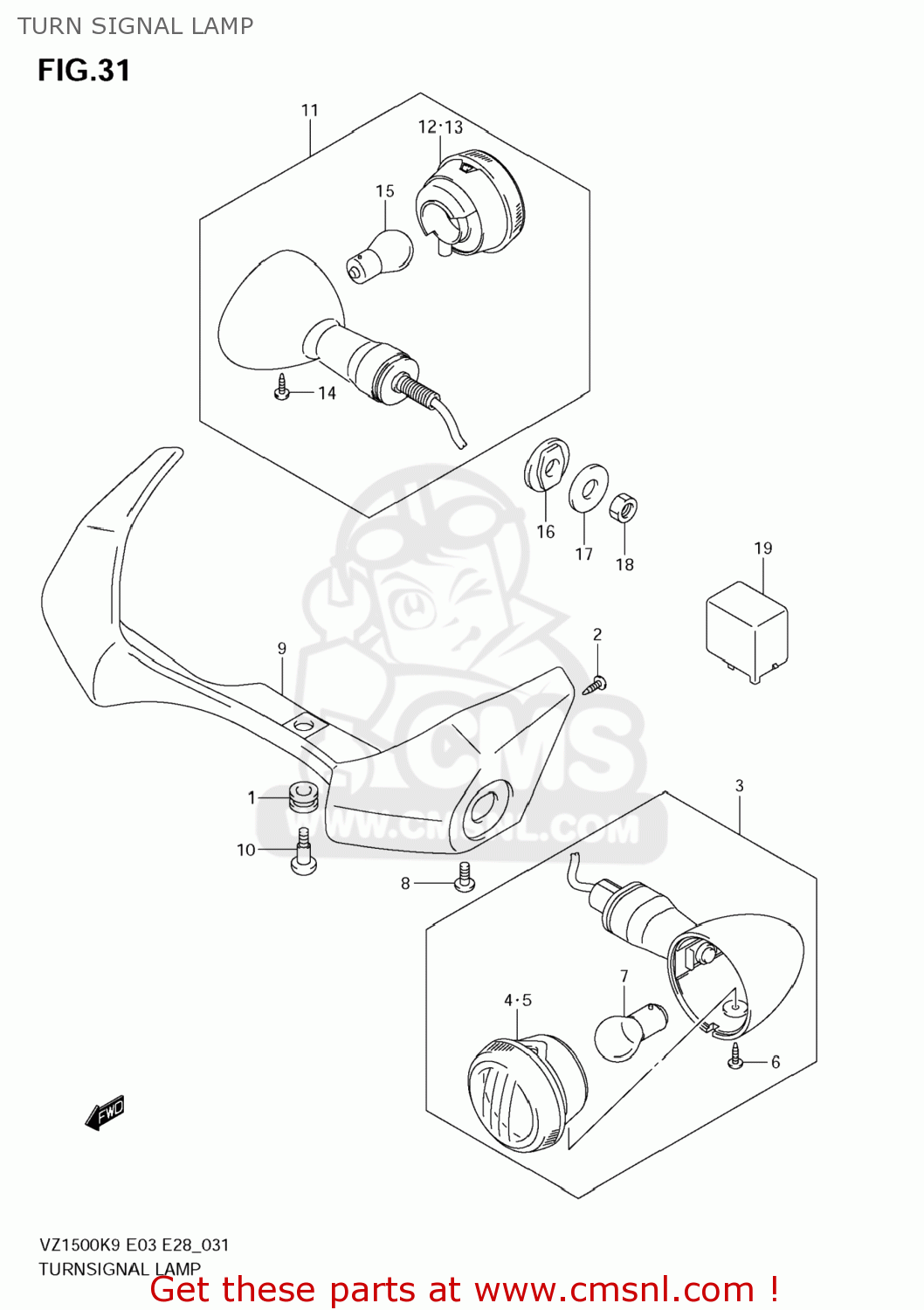

Turn signal lamp diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

0932009016
ref: 1

CUSHION

€ 2.50

035410510A
ref: 2

SCREW

€ 1.50

3-1

3560138AF0
ref: 3-1

LAMP ASSY,FR TURN SIGNAL,R

€ 68.50

3-2

3560238AF0
ref: 3-2

LAMP ASSY,FR TURN SIGNAL,L

€ 68.50

3561038AA0
ref: 4

LENS

€ 19.50

3563038AA0
ref: 5

LENS

€ 19.50

3562338AA0
ref: 6

SCREW(4X10)

€ 4.00

0947112083
ref: 7
09471-12128

BULB(12V21/5W)

€ 6.00

021420612A
ref: 8

SCREW

€ 2.00

3564140H00
ref: 9

STAY,FR TURNSIGNAL

€ 164.00

0913906146
ref: 10

SCREW(6X16)

€ 3.00

11-1

3560338AG0
ref: 11-1

LAMP ASSY,RR TURNSIGNAL,R

€ 91.00

11-2

3560438AG0
ref: 11-2

LAMP ASSY,RR TURNSIGNAL,L

€ 91.00

3563038AE1
ref: 12

LENS

€ 19.50

3561038AE1
ref: 13

LENS

€ 19.50

3562338AA0
ref: 14

SCREW(4X10)

€ 4.00

0947112045
ref: 15

BULB(12V21W)

€ 5.00

3569517C00
ref: 16

SPACER,RR TURNSIGNAL

€ 3.00

0916010501
ref: 17

WASHER(10.5X30X2.3)

€ 2.50

083100010A
ref: 18

NUT

€ 2.00

3861003F00
ref: 19

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
