FRAME

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

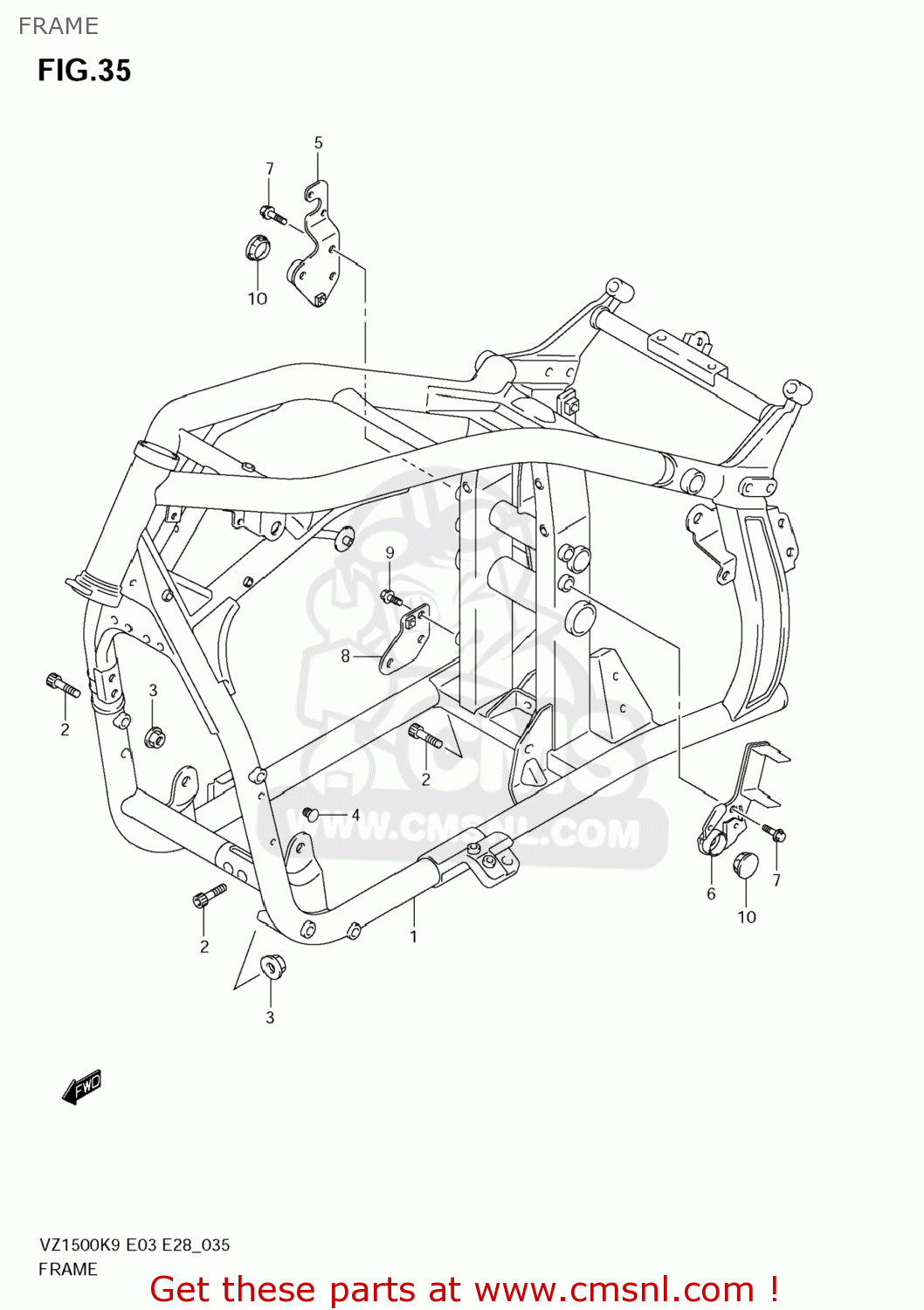

Frame diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

FRAME VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

FRAME VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

4110040H00019
ref: 1

FRAME(BLACK)

€ 3,476.00

2

071301035B
ref: 2

BOLT

€ 3.50

3

083193110B
ref: 3

NUT

€ 3.00

4

0925009001
ref: 4

CAP(OD:14)

€ 1.00

5

4193040H00
ref: 5

PLATE,ENG MTG RR,R

€ 25.00

6

4194040H00
ref: 6

PLATE,ENG MTG RR,L

€ 41.50

7

015500830B
ref: 7

BOLT

€ 3.00

8

4195140H00
ref: 8

PLATE,ENG MTG RR LOW,R

€ 14.00

9

015500820A
ref: 9

BOLT

€ 2.50

10

4358540H00
ref: 10

CAP,ENG MTG BOLT

€ 9.00
