OIL PUMP

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

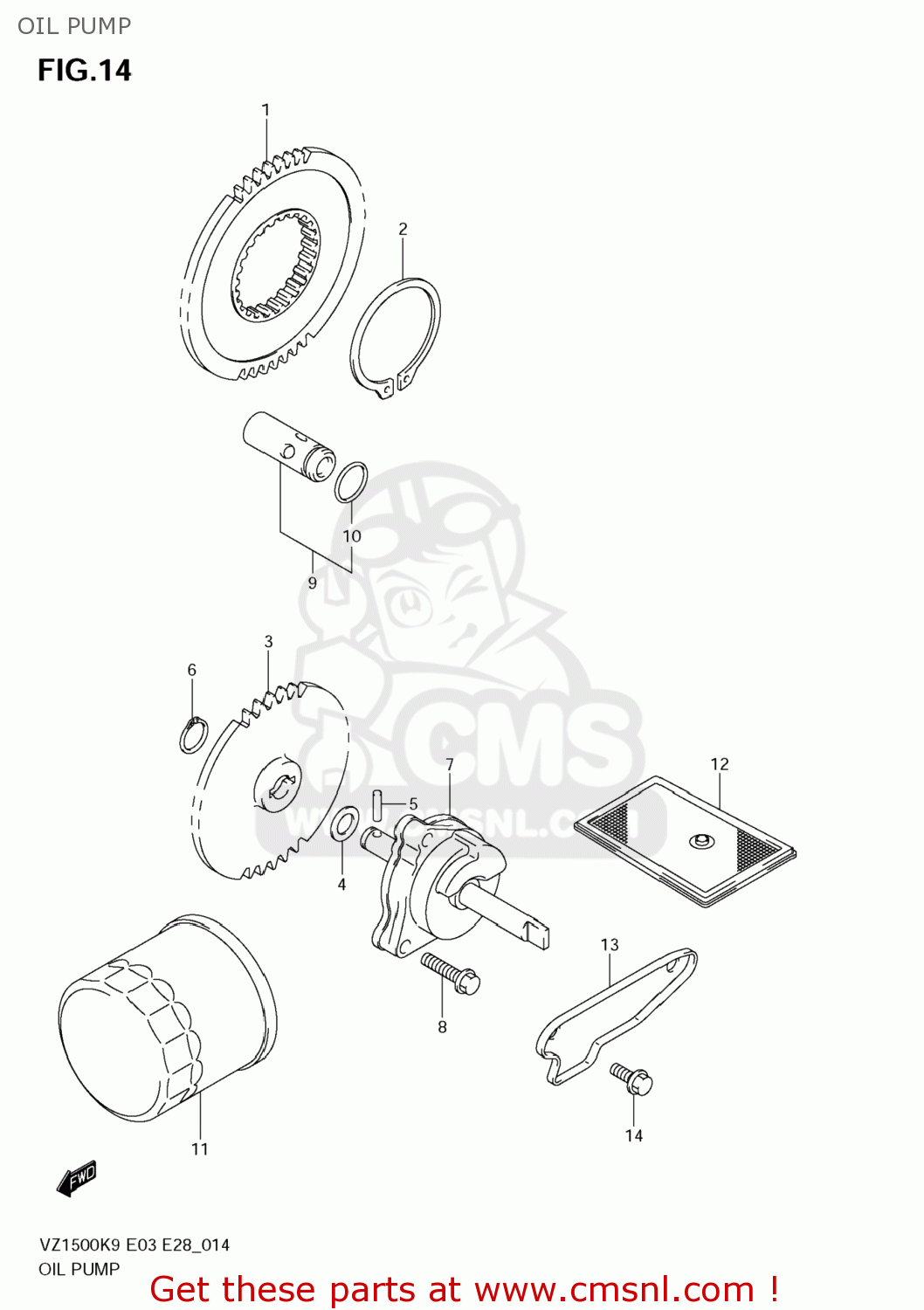

Oil pump diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1632140H00
ref: 1

GEAR,OIL PUMP DRIVE

€ 84.00

0833131529
ref: 2

CIRCLIP

€ 3.50

1633140H00
ref: 3

GEAR,OIL PUMP DRIVEN

€ 74.50

0918110158
ref: 4

SHIM(10X18X0.5)

€ 2.50

0926104009
ref: 5

PIN(4X15.8)

€ 1.50

0833131109
ref: 6

CIRCLIP

€ 2.00

1640040H00
ref: 7

PUMP ASSY,ENGINE OIL

€ 202.50

015470625A
ref: 8

BOLT

€ 2.50

1644024F00
ref: 9

VALVE ASSY,OIL RELIEF(7K)

€ 41.50

0928013004
ref: 10

O RING(D:1.9,ID:13)

€ 2.50

11-1

1651003G00
ref: 11-1
16510-07J00

FILTER ASSY,EN

€ 12.50

11-2

1651022H00
ref: 11-2

FILTER ASSY,EN

€ 33.50

1652032E00
ref: 12

STRAINER,ENGINE OIL

€ 11.50

1652317G00
ref: 13

CAP,OIL STRAINER

€ 7.50

015470612A
ref: 14

BOLT

€ 2.00
