HEADLAMP COVER

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

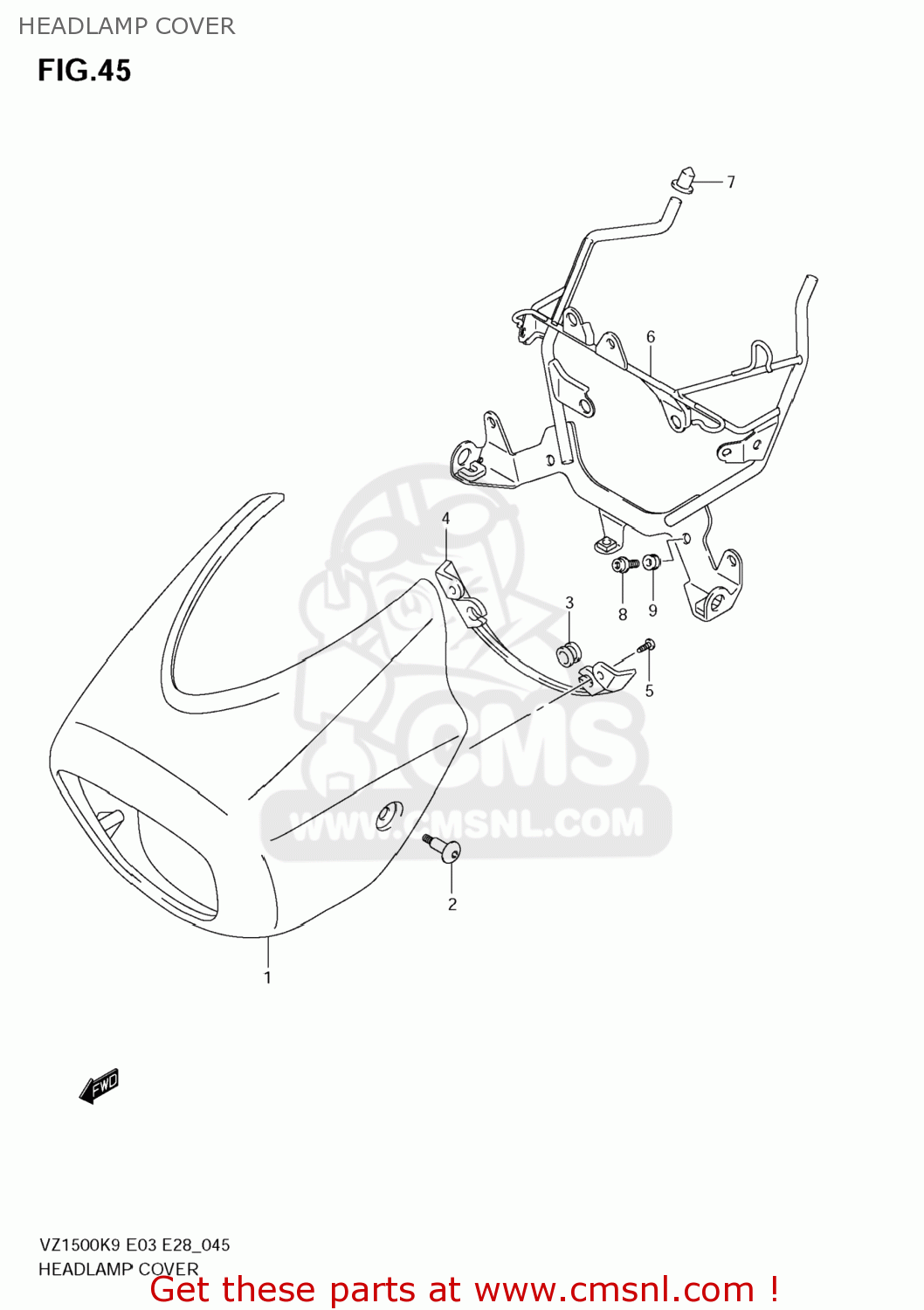

Headlamp cover diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

COVER,HEADLAMP

€ 164.00

1-2

COVER,HEADLAMP

€ 155.00

1-3

COVER,HEADLAMP

€ 186.00

0913906132
ref: 2
09139-06191

SCREW,FUEL TAN

€ 4.50

0932009039
ref: 3

CUSHION

€ 6.00

5181240H00
ref: 4

PLATE,HEADLAMP HOUSING

€ 7.50

035410510A
ref: 5

SCREW

€ 1.50

5185040H00
ref: 6

BRACE,HEADLAMP COVER

€ 242.50

5183121D00
ref: 7

CUSHION,HEADLAMP HOUSING BRACE

€ 3.00

071200816A
ref: 8

BOLT

€ 3.00

0932006016
ref: 9

CUSHION

€ 4.50

all assemblies
