FRONT DAMPER

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

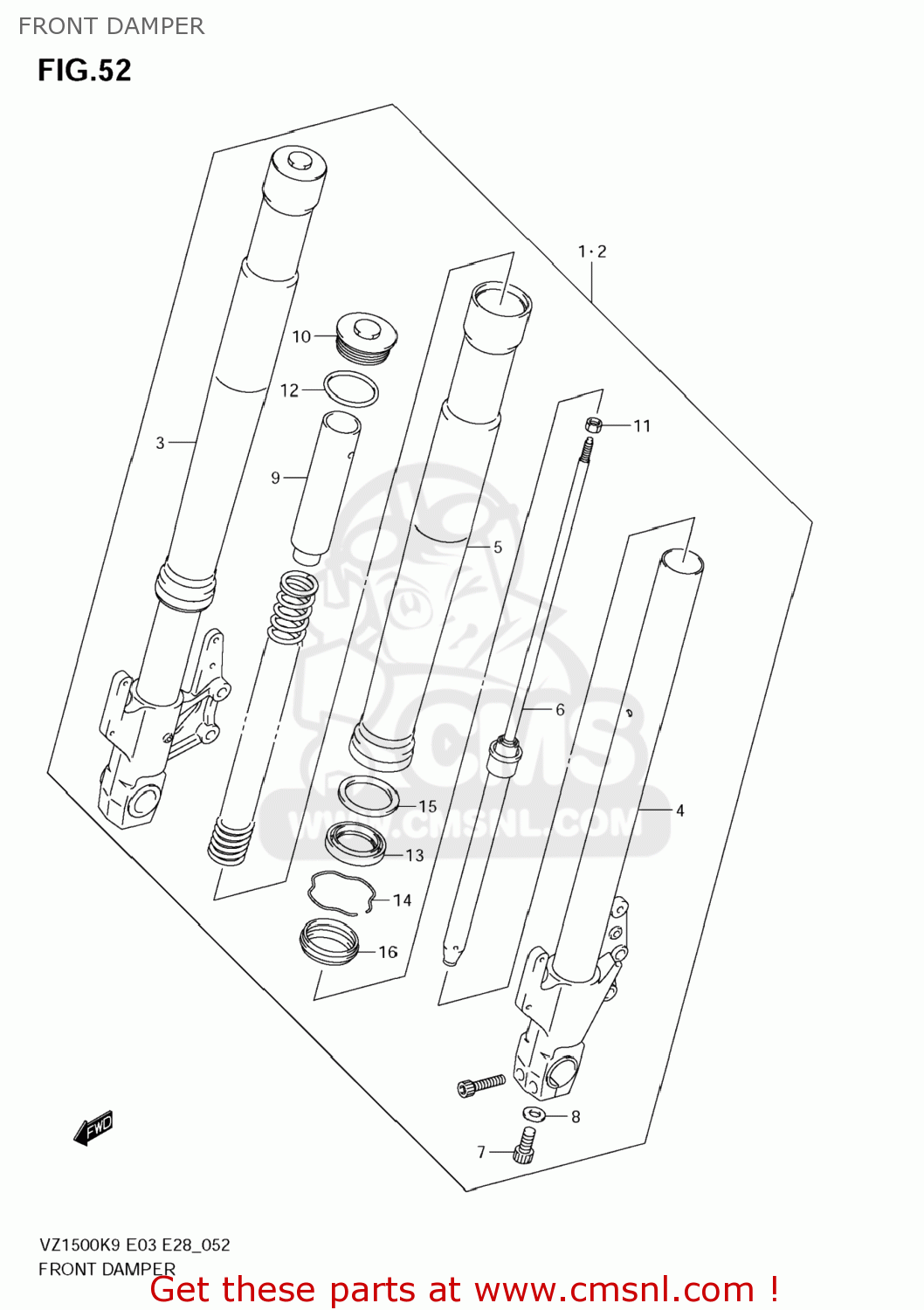

Front damper diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

5110340H00
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,177.00

5110440H00
ref: 2

DAMPER ASSY,FR FORK,L

€ 1,177.00

5111040H00
ref: 3

TUBE,INNER,R

€ 773.00

5112040H00
ref: 4

TUBE,INNER,L

€ 625.00

5113040H00
ref: 5

TUBE,OUTER

€ 739.00

5114640H00
ref: 6

CYLINDER

€ 250.50

5114705H00
ref: 7

BOLT

€ 4.50

5114841310
ref: 8

GASKET (NAS)

€ 2.50

5117621H00
ref: 9

SPACER,SPRING

€ 17.00

5135140H00
ref: 10

CAP

€ 142.00

5135213A60
ref: 11

NUT,ROD

€ 1.50

6227814100
ref: 12

O RING

€ 3.50

5115341G00
ref: 13

SEAL,OIL

€ 17.00

5115614200
ref: 14

RING,STOPPER

€ 4.50

5115814200
ref: 15

WASHER

€ 4.00

5117341G00
ref: 16

SEAL,DUST

€ 21.00
