SPEEDOMETER

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

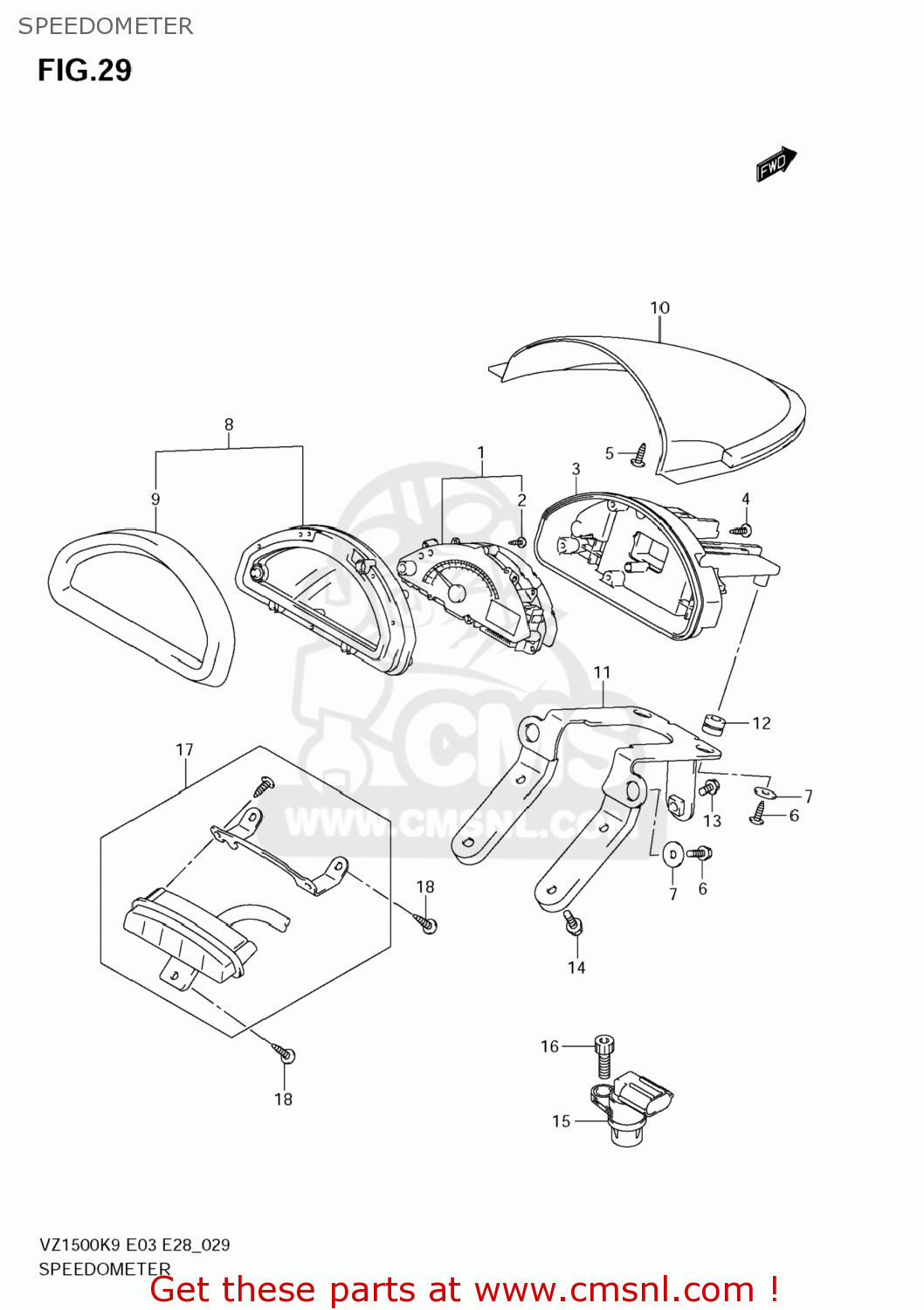

Speedometer diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

3412040H10
ref: 1-1

COMBINATION METER

€ 413.00

1-2

3412040H00
ref: 1-2

COMBINATION METER

€ 778.50

3414903G00
ref: 2

SCREW(3X14)

€ 2.50

3411140H00
ref: 3

LWR CASE

€ 113.00

3414903G00
ref: 4

SCREW(3X14)

€ 2.50

3414917E10
ref: 5

SCREW(4X14)

€ 4.00

3414940H00
ref: 6

SCREW(5X16)

€ 4.50

3418940H00
ref: 7

WASHER(5.2X20X1.0)

€ 3.00

3415040H00
ref: 8

UPR CASE

€ 207.50

3425640H00
ref: 9

UPR COVER

€ 142.50

3425740H00
ref: 10

LWR COVER

€ 185.00

3495240H00
ref: 11

BRACKET

€ 82.50

3495540H00
ref: 12

DAMPER

€ 10.50

015500610A
ref: 13

BOLT

€ 2.00

0712006127
ref: 14

BOLT

€ 3.00

3499031G00
ref: 15
34990-31G01

SENSOR COMP,SP

€ 69.50

071300616A
ref: 16
07130-0616B

BOLT

€ 3.00

3638040H00
ref: 17

BOX ASSY,PILOT LAMP

€ 174.00

035410512A
ref: 18

SCREW

€ 2.00
