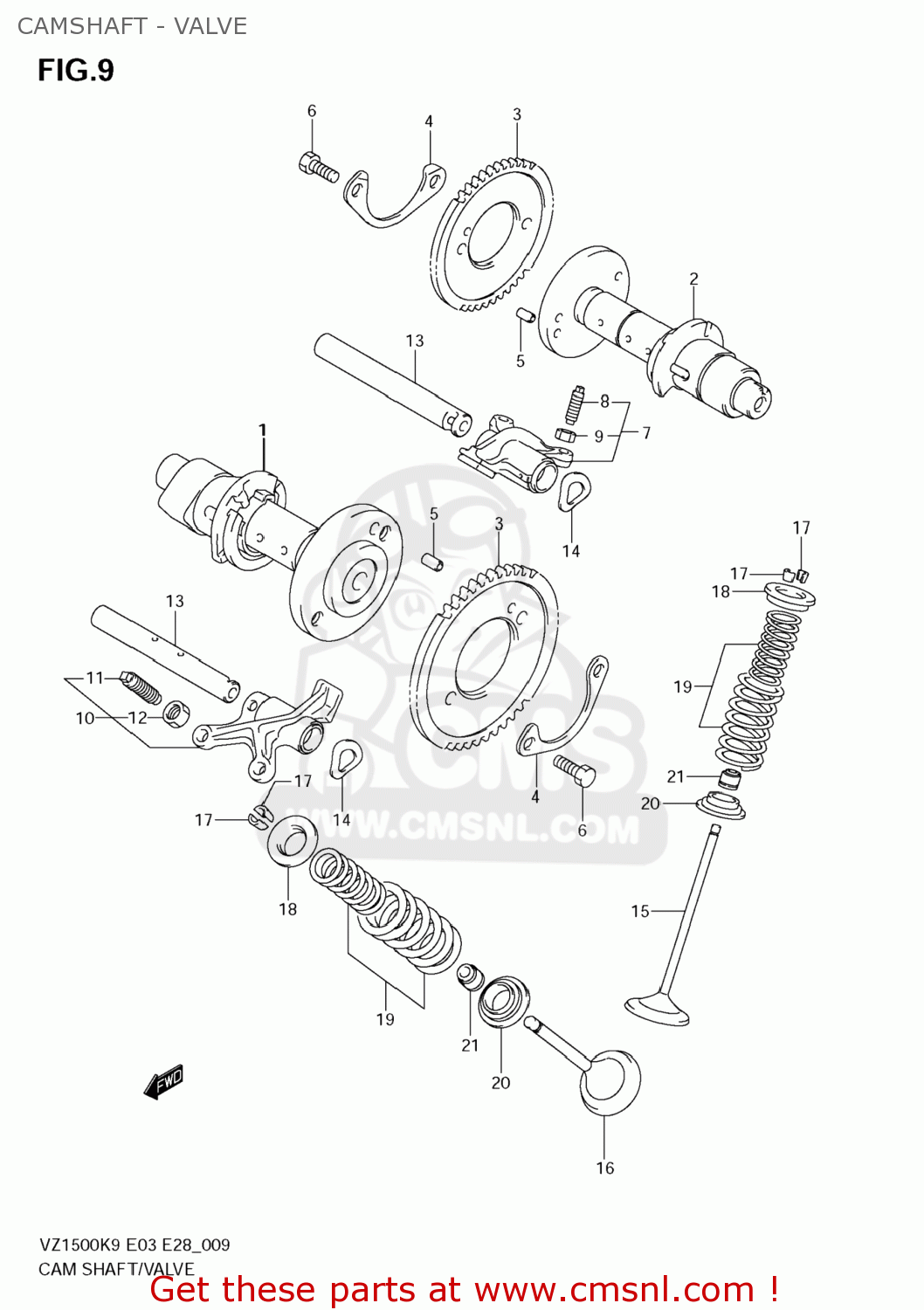

CAMSHAFT - VALVE - VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

ref

part #

description

quantity

1

1271040H00
ref: 1

CAMSHAFT,FR

€ 457.00

2

1273040H00
ref: 2

CAMSHAFT,RR

€ 457.00

3

1274141F00
ref: 3

SPROCKET,CAMSHAFT

€ 35.50

4

1274744001
ref: 4

WASHER,SPROCKET

€ 2.00

5

0422105109
ref: 5

PIN

€ 1.50

6

0910006169
ref: 6

BOLT(6X12.5)

€ 2.00

7

1284040H00
ref: 7

ARM,VALVE ROCKER INTAKE

€ 102.50

8

1284238A00
ref: 8

SCREW,TAPPET ADJUSTING

€ 4.00

9

1284332400
ref: 9

NUT,ADJUSTING SCREW

€ 2.50

10

1285040H00
ref: 10

ARM,VALVE ROCKER EXHAUST

€ 102.50

11

1284238A00
ref: 11

SCREW,TAPPET ADJUSTING

€ 4.00

12

1284332400
ref: 12

NUT,ADJUSTING SCREW

€ 2.50

13

1286140H00
ref: 13

SHAFT,VALVE ROCKER ARM

€ 38.50

14

0916412018
ref: 14

WASHER

€ 1.50

15

1291140H00
ref: 15

VALVE,INTAKE

€ 33.50

16

1291240H00
ref: 16

VALVE,EXHAUST

€ 50.00

17

1293224400
ref: 17

COTTER,VALVE

€ 2.00

18

1293133201
ref: 18

RETAINER,VALVE SPRING

€ 5.50

19

1292032E00
ref: 19

SPRING SET,VALVE

€ 10.50

20

1293381400
ref: 20

SEAT,VALVE SPRING

€ 4.00

21

0928905015
ref: 21

SEAL,OIL(5.5X11X8.2)

€ 6.50

CAMSHAFT - VALVE

all assemblies
