CRANKCASE

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

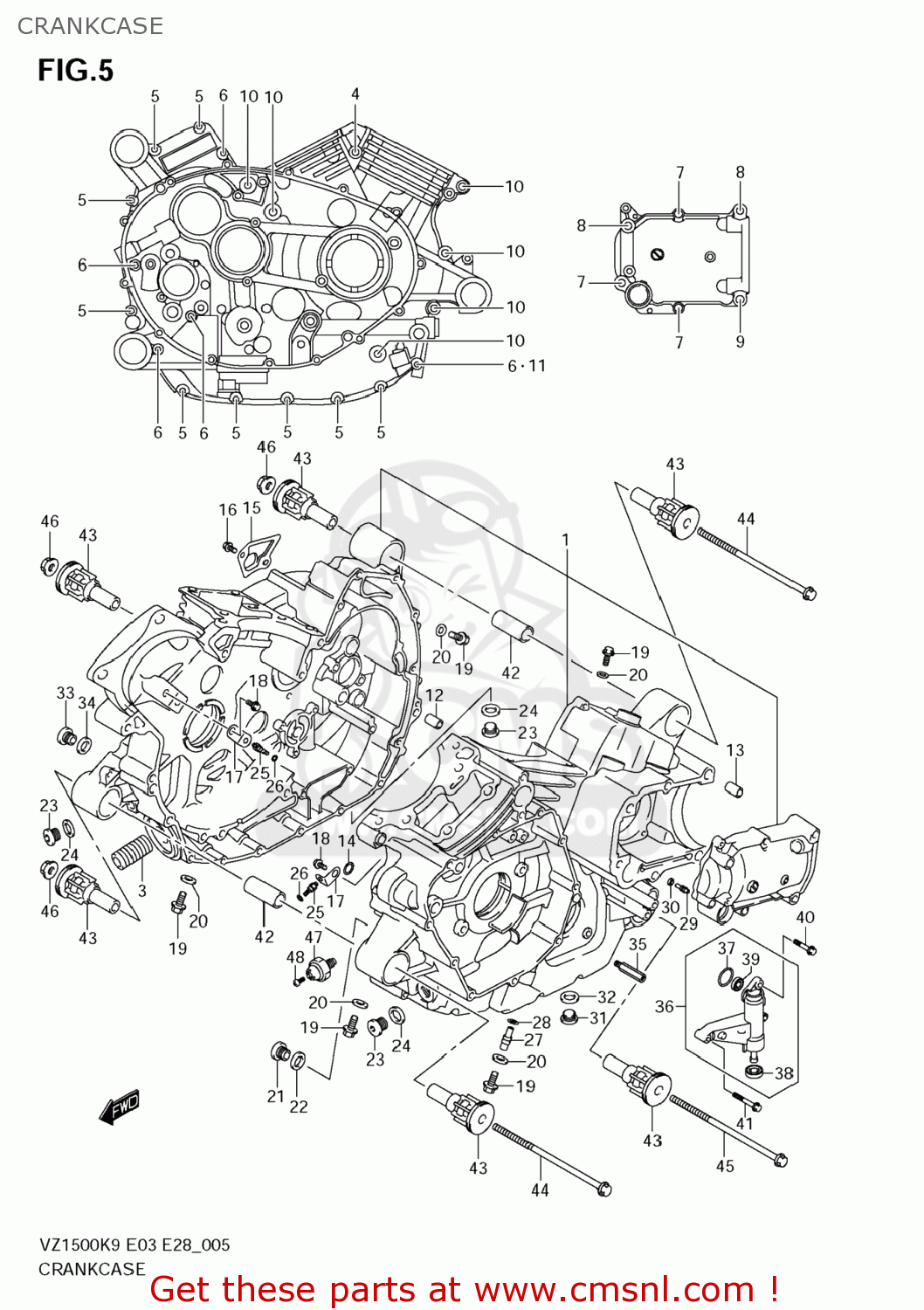

Crankcase diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

CRANKCASE VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
CRANKCASE VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
CRANKCASE VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
1130140860
ref: 1
11301-40870
CRANKCASE SET
1130140860
€ 3,332.50
2-1
1222840H000A0
ref: 2-1
BEARING,CRANK THRUST
1222840H000A0
€ 26.50
2-1
1222840H000A0
ref: 2-1
BEARING,CRANK THRUST
1222840H000A0
€ 26.50
2-2
1222840H000B0
ref: 2-2
BEARING,CRANK THRUST
1222840H000B0
€ 26.50
2-2
1222840H000B0
ref: 2-2
BEARING,CRANK THRUST
1222840H000B0
€ 26.50
2-3
1222840H000C0
ref: 2-3
BEARING,CRANK THRUST
1222840H000C0
€ 26.50
2-3
1222840H000C0
ref: 2-3
BEARING,CRANK THRUST
1222840H000C0
€ 26.50
2-4
1222840H000D0
ref: 2-4
BEARING,CRANK THRUST
1222840H000D0
€ 26.00
2-4
1222840H000D0
ref: 2-4
BEARING,CRANK THRUST
1222840H000D0
€ 26.00
2-5
1222840H000E0
ref: 2-5
BEARING,CRANK THRUST
1222840H000E0
€ 26.50
2-5
1222840H000E0
ref: 2-5
BEARING,CRANK THRUST
1222840H000E0
€ 26.50
2-6
1222840H000F0
ref: 2-6
BEARING,CRANK THRUST
1222840H000F0
€ 26.50
2-6
1222840H000F0
ref: 2-6
BEARING,CRANK THRUST
1222840H000F0
€ 26.50
3
1659106B01
ref: 3
UNION,OIL STAND
1659106B01
€ 6.00
4
0910308122
ref: 4
BOLT(8X110)
0910308122
€ 4.00
5
015470645A
ref: 5
BOLT
015470645A
€ 2.50
6
015470685A
ref: 6
BOLT
€ 2.00
7
015500845A
ref: 7
BOLT
€ 3.00
8
015500860A
ref: 8
BOLT
€ 3.00
9
015500870A
ref: 9
BOLT
015500870A
€ 3.00
10
015500880A
ref: 10
BOLT
015500880A
€ 2.50
11
0916806023
ref: 11
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
12
1131933E50
ref: 12
PIN,CRANKCASE
1131933E50
€ 4.00
13
0920611007
ref: 13
PIN(8.4X11X20)
0920611007
€ 1.50
14
0928013007
ref: 14
09280-12009
O-RING
€ 2.50
15
1131340H00
ref: 15
PLATE,OIL SEPARATOR
€ 10.00
16
015470612A
ref: 16
BOLT
015470612A
€ 2.00
17
1643938B00
ref: 17
PLATE,PISTON JET RR
€ 2.00
18
015470612A
ref: 18
BOLT
015470612A
€ 2.00
19
015500812A
ref: 19
BOLT
015500812A
€ 2.50
20
0916808016
ref: 20
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
21
0924810010
ref: 21
PLUG(10X10)
0924810010
€ 4.00
22
0916810002
ref: 22
GASKET(10X14X3.6) (NAS)
0916810002
€ 2.00
23
0924816012
ref: 23
PLUG,16X8
0924816012
€ 4.50
24
0916816002
ref: 24
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
25
0949380009
ref: 25
JET,PISTON COOLING(0.8)
€ 14.00
26
0928004004
ref: 26
O RING(D:1.2,ID:4)
0928004004
€ 2.00
27
0949324009
ref: 27
JET(12)
0949324009
€ 10.50
28
0928004004
ref: 28
O RING(D:1.2,ID:4)
0928004004
€ 2.00
29
0949336004
ref: 29
JET,OIL GALLERY(18)
0949336004
€ 8.00
30
0928004004
ref: 30
O RING(D:1.2,ID:4)
0928004004
€ 2.00
31
0924714036
ref: 31
PLUG(14X20)
0924714036
€ 5.50
32
0916814002
ref: 32
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
33
0924814012
ref: 33
PLUG,14X12
0924814012
€ 5.00
34
0916814002
ref: 34
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
35
1137222H00
ref: 35
BOLT,SEC DRIVE UNIT COVER
1137222H00
€ 12.00
36
2312041810
ref: 36
CAMSHAFT SET,CLUTCH RELEASE
2312041810
€ 194.00
37
0928021008
ref: 37
O RING(D:2.5,ID:21)
0928021008
€ 2.00
38
0928210012
ref: 38
SEAL,OIL(10X20X6)
0928210012
€ 7.50
39
0928510004
ref: 39
SEAL,OIL(10X17X5)
0928510004
€ 3.50
40
015470620A
ref: 40
BOLT
015470620A
€ 2.50
41
015470630A
ref: 41
BOLT
015470630A
€ 2.50
42
1161148G00
ref: 42
SPACER,ENG MTG
1161148G00
€ 12.50
43
1165240H00
ref: 43
BUSH,ENGINE MOUNTING
1165240H00
€ 20.50
44
0910310041
ref: 44
09103-10041-A05
BOLT 10X215
0910310041
€ 9.00
45
0910310118
ref: 45
BOLT(10X195)
0910310118
€ 7.00
46
083193110A
ref: 46
NUT
083193110A
€ 3.00
47
3782033D10
ref: 47
SWITCH ASSY,OIL PRESSURE
3782033D10
€ 29.00
48
3782233D00
ref: 48
BOLT,OIL PRESSURE SWITCH
3782233D00
€ 3.00
