CRANKSHAFT

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

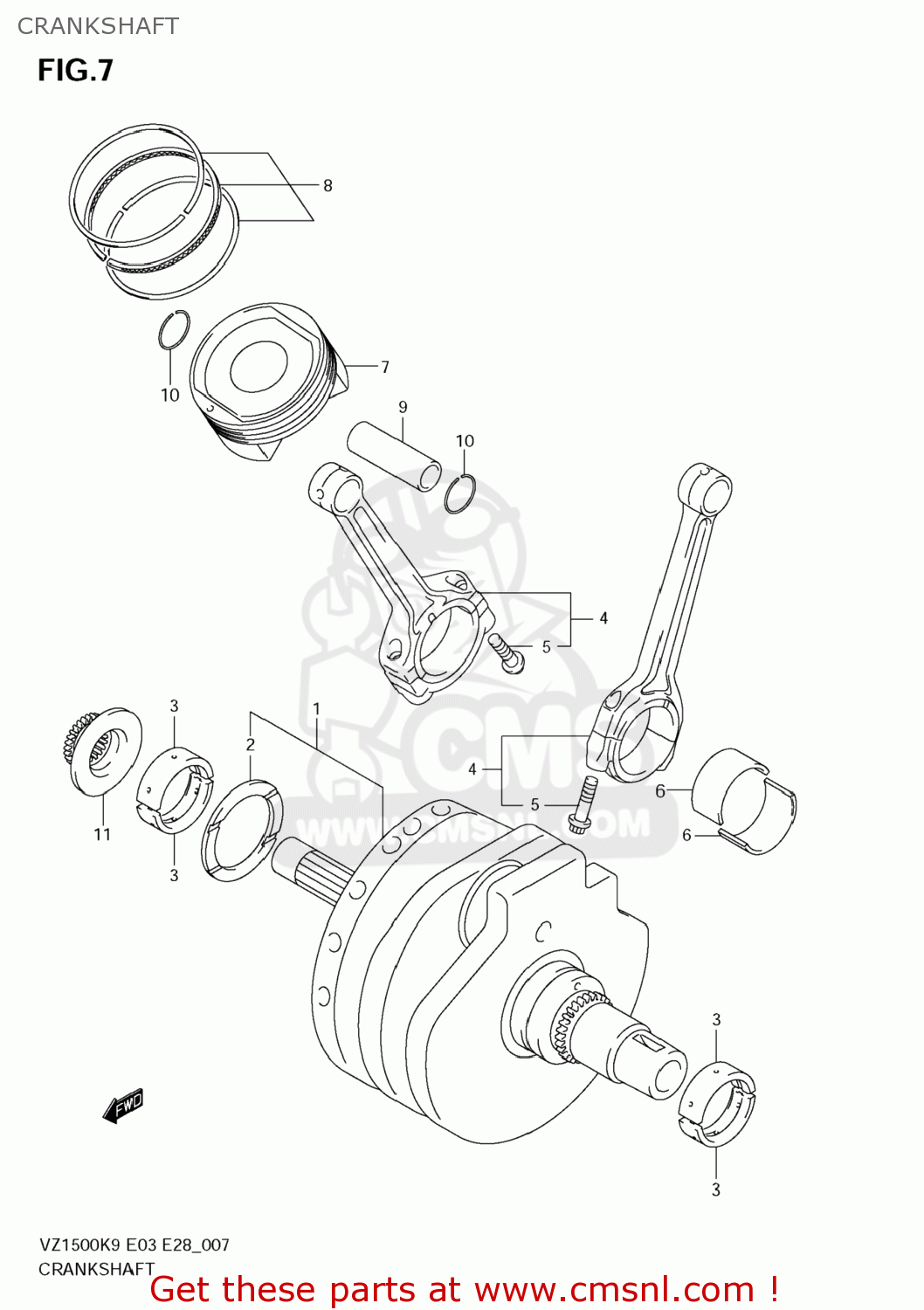

Crankshaft diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

CRANKSHAFT VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
CRANKSHAFT VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
CRANKSHAFT VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
1200040840
ref: 1
CRANKSHAFT SET
1200040840
€ 1,710.00
2-1
1222840H000A0
ref: 2-1
BEARING,CRANK THRUST
1222840H000A0
€ 26.50
2-1
1222840H000A0
ref: 2-1
BEARING,CRANK THRUST
1222840H000A0
€ 26.50
2-2
1222840H000B0
ref: 2-2
BEARING,CRANK THRUST
1222840H000B0
€ 26.50
2-2
1222840H000B0
ref: 2-2
BEARING,CRANK THRUST
1222840H000B0
€ 26.50
2-3
1222840H000C0
ref: 2-3
BEARING,CRANK THRUST
1222840H000C0
€ 26.50
2-3
1222840H000C0
ref: 2-3
BEARING,CRANK THRUST
1222840H000C0
€ 26.50
2-4
1222840H000D0
ref: 2-4
BEARING,CRANK THRUST
1222840H000D0
€ 26.00
2-4
1222840H000D0
ref: 2-4
BEARING,CRANK THRUST
1222840H000D0
€ 26.00
2-5
1222840H000E0
ref: 2-5
BEARING,CRANK THRUST
1222840H000E0
€ 26.50
2-5
1222840H000E0
ref: 2-5
BEARING,CRANK THRUST
1222840H000E0
€ 26.50
2-6
1222840H000F0
ref: 2-6
BEARING,CRANK THRUST
1222840H000F0
€ 26.50
2-6
1222840H000F0
ref: 2-6
BEARING,CRANK THRUST
1222840H000F0
€ 26.50
3-1
1222940H000A0
ref: 3-1
BEARING,CRANKSHAFT
1222940H000A0
€ 34.50
3-2
1222940H000B0
ref: 3-2
BEARING,CRANKSHAFT
1222940H000B0
€ 23.00
3-3
1222940H000C0
ref: 3-3
BEARING,CRANKSHAFT
1222940H000C0
€ 34.50
4
1216040H00
ref: 4
CONNECTING ROD ASSY
1216040H00
€ 337.00
5
1216306G00
ref: 5
BOLT,CONNECTING ROD
1216306G00
€ 12.00
6-1
1216440H000A0
ref: 6-1
BEARING,CRANK PIN
1216440H000A0
€ 18.00
6-2
1216440H000B0
ref: 6-2
BEARING,CRANK PIN
1216440H000B0
€ 18.00
6-3
1216440H000C0
ref: 6-3
BEARING,CRANK PIN
1216440H000C0
€ 18.00
6-4
1216440H000D0
ref: 6-4
BEARING,CRANK PIN
1216440H000D0
€ 18.00
7
1211140H000F0
ref: 7
PISTON
€ 100.00
8
1214040H00
ref: 8
RING SET,PISTON
1214040H00
€ 110.00
9
1215102F00
ref: 9
PIN,PISTON
1215102F00
€ 21.50
10
0938122002
ref: 10
CIRCLIP
0938122002
€ 1.50
11
1273140H00
ref: 11
SPROCKET,CAM CHAIN DRIVE,R
1273140H00
€ 138.50
