FOOTREST

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

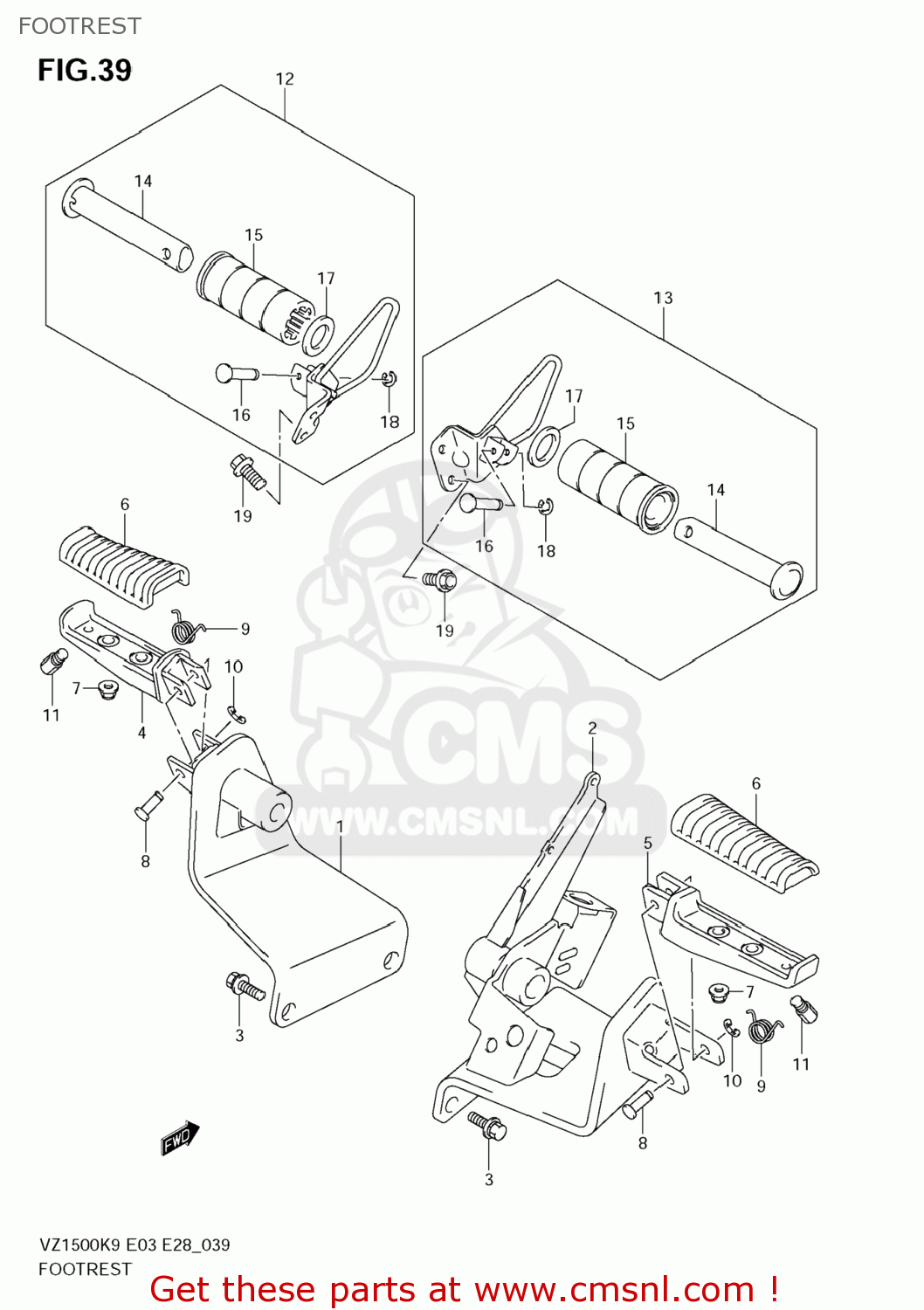

Footrest diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

4351040H00
ref: 1

BRACKET,FR FOOTREST,R

€ 277.00

4352040H00
ref: 2

BRACKET,FR FOOTREST,L

€ 153.00

0910310378
ref: 3

BOLT(10X25)

€ 2.50

4353148G00
ref: 4

BAR,FR FOOTREST,R

€ 25.50

4354148G00
ref: 5

BAR,FR FOOTREST,L

€ 25.50

4355048G00
ref: 6

RUBBER,FR FOOTREST

€ 15.50

083192106A
ref: 7

NUT

€ 2.00

0920808010
ref: 8

PIN(8X33.2)

€ 3.00

0944814047
ref: 9

SPRING

€ 3.50

083321106B
ref: 10

E RING

€ 2.00

4357607D01
ref: 11

BOLT,BANK SENSOR

€ 8.00

4360040H00
ref: 12

FOOTREST ASSY,PILLION,R

€ 108.50

4370040H00
ref: 13

FOOTREST ASSY,PILLION,L

€ 97.00

4361039G00
ref: 14

BAR,PILLION FOOTREST

€ 13.00

4361239G00
ref: 15

RUBBER,PILLION FOOTREST

€ 5.00

0920806007
ref: 16

PIN

€ 3.00

0916019024
ref: 17

WASHER(19.5X32X2)

€ 2.00

083321104A
ref: 18

E RING

€ 2.00

0910308412
ref: 19

BOLT(8X16)

€ 2.50
