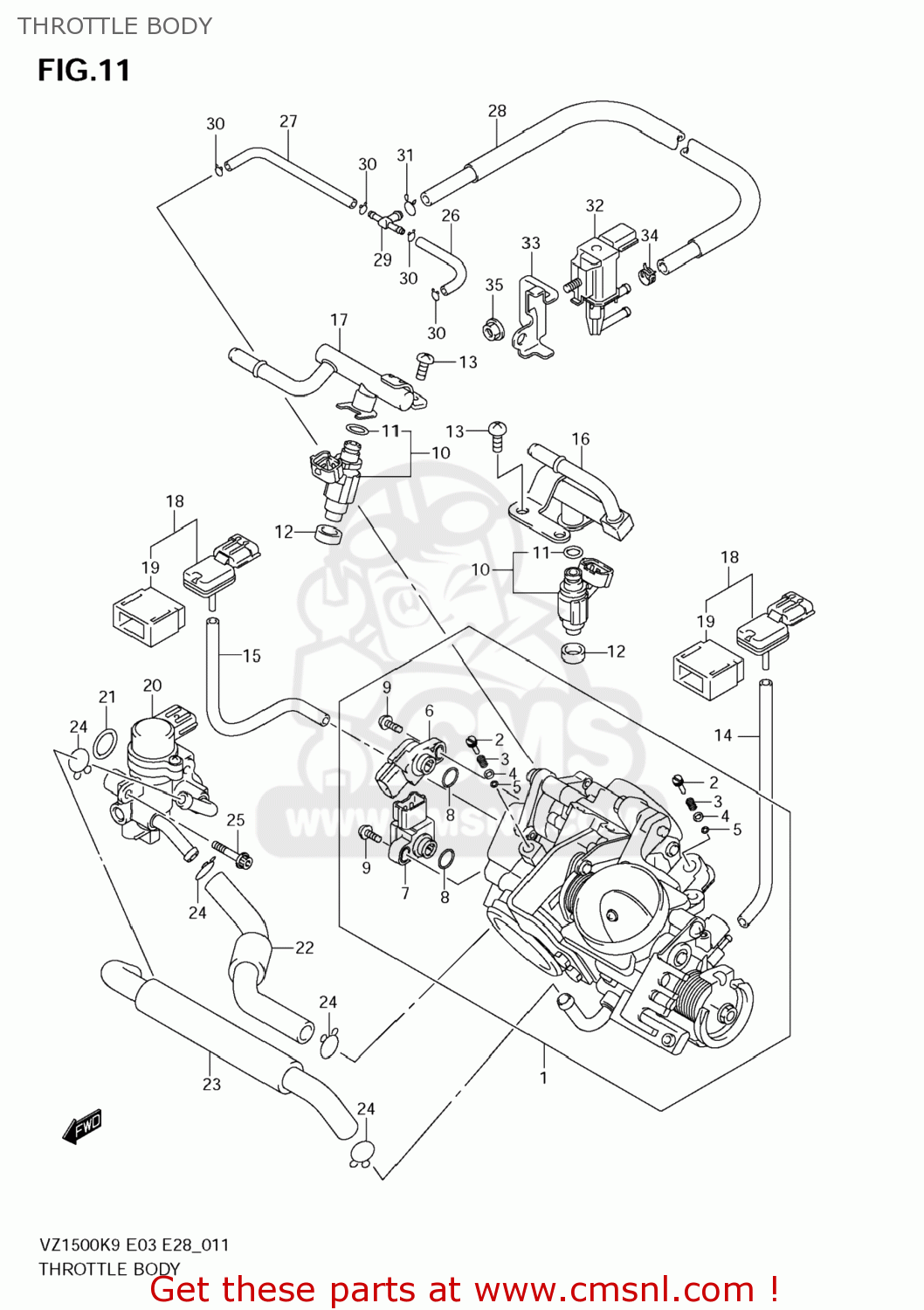

THROTTLE BODY

ref

part #

description

quantity

1-1

1340540H00
ref: 1-1

BODY ASSY,THROTTLE

€ 1,099.50

1-2

1340540H10
ref: 1-2

BODY ASSY,THROTTLE

€ 0.00

2

1326933E00
ref: 2

SCREW

€ 8.50

3

1326848700
ref: 3

SPRING,THROTTLE SCREW

€ 3.50

4

1360647A00
ref: 4

WASHER

€ 2.00

5

1329529900
ref: 5

O RING,PILOT AIR SCREW

€ 4.00

6

1358048G10
ref: 6

SENSOR ASSY

€ 117.00

7

1358048G00
ref: 7

SENSOR ASSY

€ 131.00

8

1357529G00
ref: 8

O RING

€ 3.00

9

1360502F00
ref: 9

SCREW

€ 3.00

10

1571048G00
ref: 10

INJECTOR ASSY

€ 210.50

11

1571716G00
ref: 11

O RING

€ 9.50

12

1572229G00
ref: 12

SEAL

€ 9.50

13

1360206148
ref: 13

SCREW

€ 2.50

14

1368348G00
ref: 14

HOSE

€ 17.00

15

1368340H10
ref: 15

HOSE

€ 28.50

16

1573040H00
ref: 16

PIPE ASSY,DELIVERY

€ 155.00

17

1573040H10
ref: 17

PIPE ASSY,DELIVERY

€ 160.50

18

1859141F00
ref: 18

SENSOR,PRESSURE

€ 360.00

19

1859533G00
ref: 19

HOLDER

€ 21.50

20

1811740H00
ref: 20

VALVE,ISC

€ 328.00

21

0928014011
ref: 21

O RING(D:2.5,ID:13.8)

€ 3.50

22

1369740H00
ref: 22

HOSE,ISC VALVE,R

€ 15.00

23

1369840H00
ref: 23

HOSE,ISC VALVE,L

€ 22.00

24

0940113102
ref: 24

CLIP

€ 2.00

25

071200525A
ref: 25

BOLT

€ 1.50

26

1368340H00
ref: 26

HOSE

€ 0.00

27

1368322H10
ref: 27

HOSE

€ 0.00

28

1368318H21
ref: 28

HOSE

€ 51.50

29

1368504F10
ref: 29

NIPPLE

€ 6.50

30

1367112C00
ref: 30
09401-06101

CLIP

€ 2.50

31

1367148B10
ref: 31
09401-10401

CLIP

€ 1.50

32

1811752G10
ref: 32

VALVE,CANISTER PURGE

€ 74.00

33

1811940H00
ref: 33

BRACKET,PURGE VALVE

€ 7.50

34

0940110409
ref: 34

CLIP

€ 2.50

35

083161006A
ref: 35

NUT

€ 2.50

all assemblies
