GEAR SHIFTING

VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

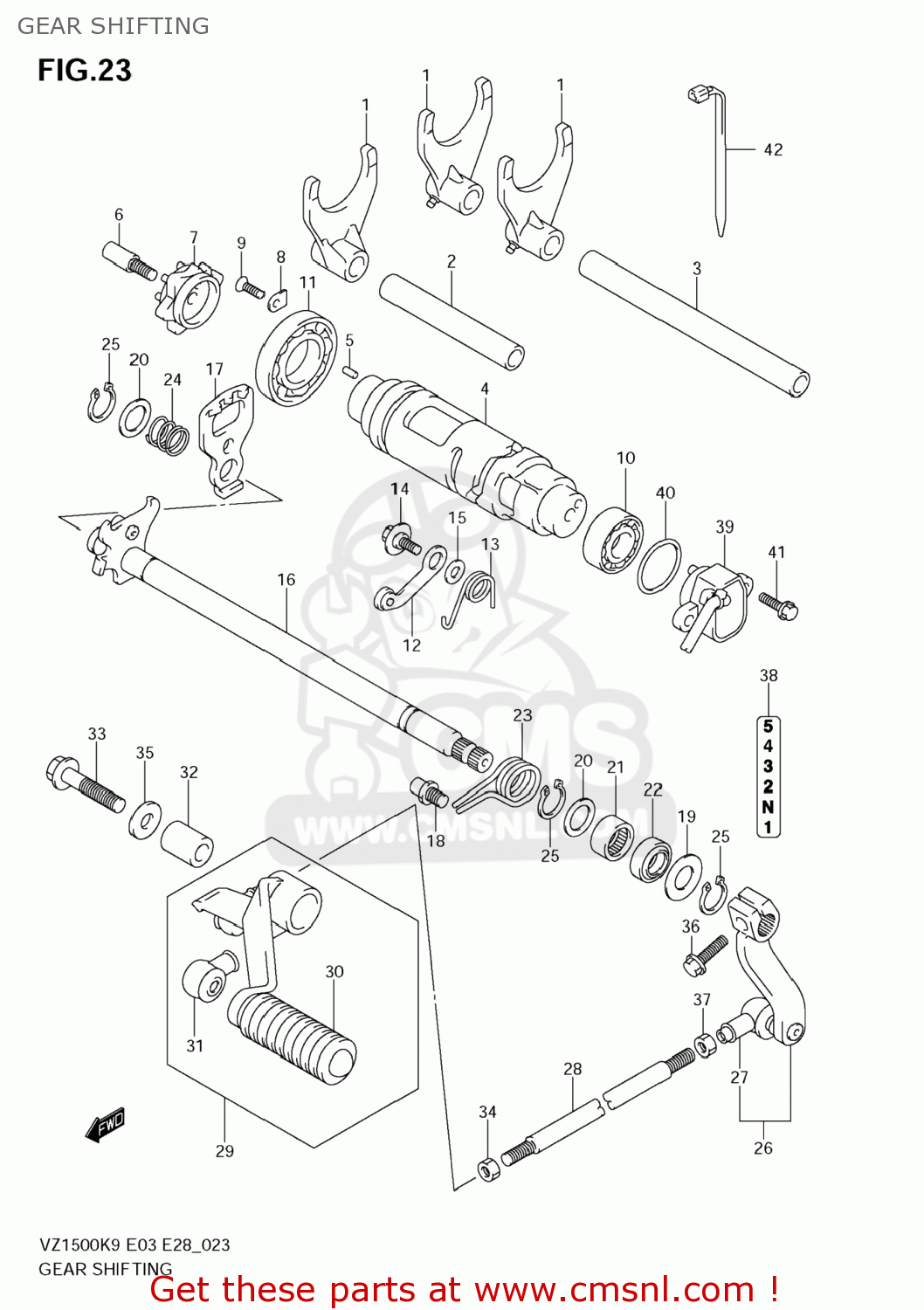

Gear shifting diagram VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)

GEAR SHIFTING VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
GEAR SHIFTING VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
GEAR SHIFTING VZ1500 BOULEVARD M90 2009 (K9) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
2521135F11
ref: 1
FORK,GEAR SHIFT NO.1
2521135F11
€ 72.50
2
2541138B01
ref: 2
SHAFT,GEAR SHIFT FORK(L:152)
2541138B01
€ 20.00
3
2541144B00
ref: 3
SHAFT,GEAR SHIFT FORK NO.1
2541144B00
€ 19.50
4
2531040H00
ref: 4
CAM,GEAR SHIFT
2531040H00
€ 205.00
5
0422104089
ref: 5
PIN
0422104089
€ 1.50
6
2531242F01
ref: 6
BOLT,GEAR SHIFT CAM PLATE
2531242F01
€ 5.50
7
2538113E00
ref: 7
PLATE,GEAR SHIFT CAM
2538113E00
€ 30.00
8
2474120A00
ref: 8
RETAINER,COUNTER BEARING,R
2474120A00
€ 2.00
9
0912606011
ref: 9
SCREW(6X12)
0912606011
€ 2.00
10
0811369050
ref: 10
BEARING
0811369050
€ 36.00
11
0926325018
ref: 11
BEARING(25X32X12)
0926325018
€ 17.50
12
2535024F00
ref: 12
STOPPER,SHIFT CAM
2535024F00
€ 18.00
13
2535524F00
ref: 13
SPRING,STOPPER ARM
2535524F00
€ 11.00
14
0911106041
ref: 14
BOLT(6X14.3)
0911106041
€ 3.00
15
0821106141
ref: 15
WASHER
0821106141
€ 2.50
16
2551040H00
ref: 16
SHAFT,GEAR SHIFT
€ 93.00
17
2551206G10
ref: 17
PLATE,GEAR SHIFT CAM DRIVE
2551206G10
€ 20.00
18
2567101011
ref: 18
STOPPER,GEAR SHIFT ARM
2567101011
€ 3.00
19
0916014016
ref: 19
WASHER(14X29X0.8)
0916014016
€ 1.50
20
0918114167
ref: 20
SHIM(14X22X1)
0918114167
€ 3.50
21
0926314027
ref: 21
BEARING(14X20X12)
0926314027
€ 11.00
22
0928314006
ref: 22
SEAL,OIL(14X22X6)
0928314006
€ 6.50
23
0944017009
ref: 23
SPRING
0944017009
€ 1.50
24
0944420001
ref: 24
SPRING
0944420001
€ 5.00
25
083313114A
ref: 25
CIRCLIP
083313114A
€ 2.00
26
2552040H00
ref: 26
ARM,GEAR SHIFT LINK
€ 51.50
27
2552647000
ref: 27
COVER,DUST
2552647000
€ 3.50
28
2552517C20
ref: 28
ROD,GEAR SHIFT LINK
2552517C20
€ 14.50
29
2560040H00
ref: 29
LEVER ASSY,GEAR SHIFT
€ 96.00
30
2565238B00
ref: 30
RUBBER,GEAR SHIFT PEDAL
2565238B00
€ 7.50
31
2552647000
ref: 31
COVER,DUST
2552647000
€ 3.50
32
2561710F00
ref: 32
SPSCER,GEAR SHIFT LEVER
2561710F00
€ 14.50
33
0910310300
ref: 33
BOLT(10X40)
0910310300
€ 5.50
34
0914006025
ref: 34
NUT
0914006025
€ 2.00
35
0916010093
ref: 35
WASHER(10.5X24X2.3)
0916010093
€ 2.00
36
015470620A
ref: 36
BOLT
015470620A
€ 2.50
37
0831000067
ref: 37
NUT
0831000067
€ 2.50
38
6839238B00
ref: 38
LABEL,GEAR SHIFT
€ 2.50
39
3773018H01
ref: 39
SENSOR ASSY,GE
3773018H01
€ 126.00
40
0928026005
ref: 40
O RING(D:2.4,ID:26.2)
0928026005
€ 2.50
41
071200516A
ref: 41
BOLT
071200516A
€ 1.50
42
0940714403
ref: 42
CLAMP(L:125)
0940714403
€ 2.50
